ABL RT 1500 LED Compact Work Light

ABL RT 1500 LED Compact Work Light

Brand: ABL Lights
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

Perfect all-round compact OEM quality LED light for fleets, support and utility equipment, service trucks, fork lifts, and small to mid-size construction equipment.

The ABL RT 1500 LED is a compact LED-powered work lamp. This 20W version features 6 LED bulbs and pumps out an impressive 1500 lumens. This lamp exceeds everyday demands in all applications from handling equipment to heavy vehicles.

ABL Lights have revolutionised the compact heavy-duty lights market with a value-priced high-performance light series. Designed for harsh environments, these lights feature IP68/69K ingress protection, 15 Grms @ 24-2000Hz vibration resistance, 60G shock rating, crystal clear hardened glass lens that will last the test of time, top of class EMC ratings, universal mounting package, plus 4 years warranty for peace of mind.

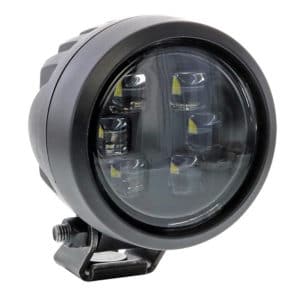

ABL RL LED1500 Compact LED Work Light

NEW no-glare optics option: No-glare optic pushes the light emitted from the fixture forward and down forming a cut-off line. The light allows for the work site to be lit without blinding workers or on-coming traffic. Making for a safer work environment and reducing fatigue on workers. Click for full ABL No-glare Range

CISPR 25 Class 5 standards
These ABL compact LED work lamps are one of the few LED work lamps in the market that meet CISPR 25 Class 5 standards. With heavy equipment, trucks and fleets packing more and more sophisticated electronics it is imperative that potential noise / interference is eliminated.

ABL RT 1500 LED Compact Work Light Features & Benefits  ▲

  • 1500 effective Lumens
  • Meets CISPR 25 Class 5 standards
  • Glass Lens
  • IP68/69K ingress protection
  • 15 Grms @ 24-2000Hz vibration resistance
  • 60G shock rating
  • Available in Flood, Long Range or Asymmetrical Flood

ABL RT 1500 LED Compact Work Light Specifications  ▲

Voltage12-24V DC
TechLED
Wattage20W
Current0.85A @ 24V DC
Lumens1500 Lu
Operating Temperature-40°C to +85°C
Beam PatternFlood, Long Range or Asymmetrical Flood
ConnectorAMP 2 pin, DT 2 pin
MountingPedestal, suspended
Lens MaterialHardened glass, Plastics
Dimensions (DxWxH)3.03x3.58x5.07" inches (77x91x129mm)
Weight1.2 lbs (0.55kg)
Load Dump / Surge DumpSurge: 36V continuous / ISO 7637-2 Pulse 5a
IP RatingIP68 / 69K
PolarityProtected against reverse voltage
Salt Spray TestISO 9227
Vibration Resistance15 Grms @ 24-2000Hz
Shock Resistance60G
EMCISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5
Warranty4 Years

ABL RT 1500 LED Compact Work Light Specifications Flyer (PDF)  ▲

CAT OEM PN’s for the ABL RL LED1000 and ABL RT 1500 LED Compact Work Light
Below is a list of some of the CAT OEM PN’s for the ABL RL LED1000 and ABL RT 1500 LED Compact Work Light.

OEM Machine ABL AM* Model OEM P/N New ABL AM* Model
Caterpillar Various C700 LED 850 479-8444 RL 1500 LED
Caterpillar Various C700 LED 850 479-8445 RL 1500 LED
Caterpillar Various C700 LED 850 479-8446 RL 1500 LED
Caterpillar Various C700 LED 850 479-8447 RL 1500 LED
Caterpillar Various C700 LED 1200 479-8450 RL 1500 LED
Caterpillar Various C700 LED 1200 479-8451 RL 1500 LED
Caterpillar Various C700 LED 1200 479-8452 RL 1500 LED
Caterpillar Various C700 LED 1200 479-8453 RL 1500 LED

* AM = After Market

Also for the ABL RL LED1000 and ABL RT 1500 LED Compact Work Light, CAT: 524-8521, 526-4904, 524-8524, 589-0450 and Bobcat: 7387145

ABL PNs
D14854, RL 1500 LED, A0187A711100

Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture

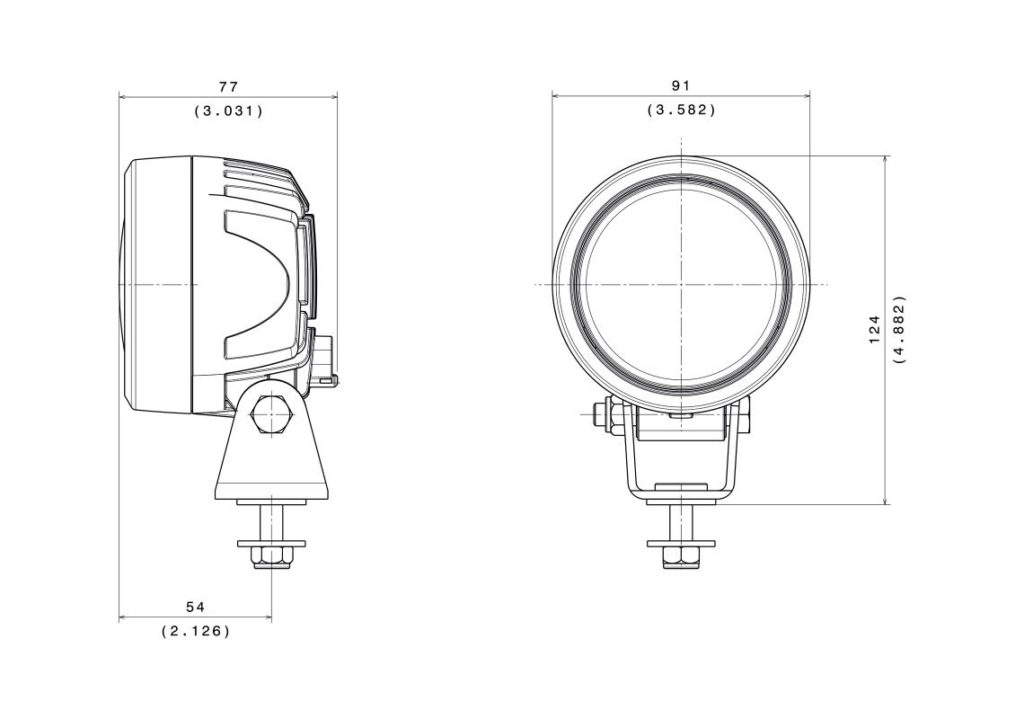

Dimensions:
Width: 3.58" (91 mm), Height: 4.9" (124 mm), Depth: 3.0" (77 mm)
