Brand:
ABL Lights
Origin: USA
Click for:

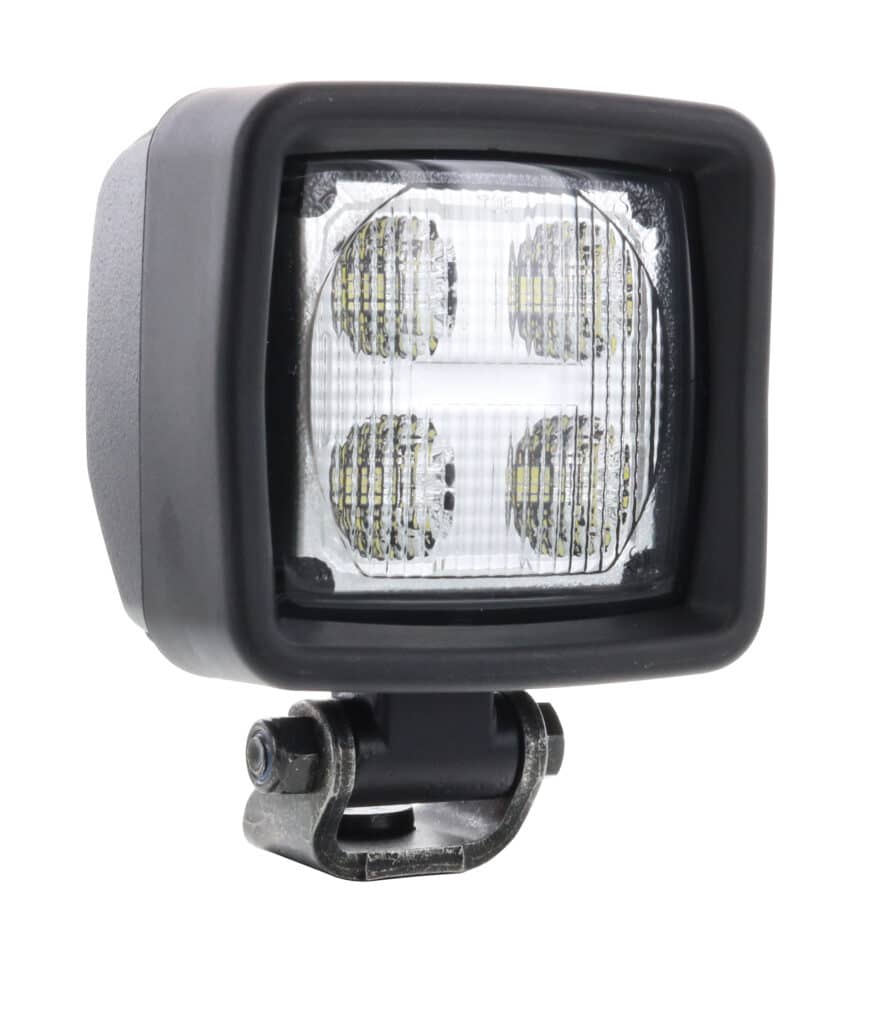

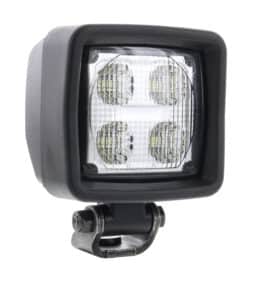

Highly vibration-resistant high-output work light specifically designed to operate on tracked dozers, hydraulic excavators, and rock crushers.
ABL SHD 5000 LED Series Work Light Specifications ▲
| Voltage | 12-24V DC |
| Source | LED |
| Amperage | 2A @ 24V DC |
| Wattage | 48W |
| Lumens | 5000 Lu |
| Connector | AMP 2 pin, DT 2 pin |
| Color Temperature | 6000 K |
| Beam Pattern | Flood Asymmetrical, Flood and Long Range |
| Color | White |
| Mounting | Pedestal, suspended |
| IP Protection | IP68, IP69K |
| Polarity | Protected against reverse voltage |
| Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant |
| Operating Temperature | -40°C to +85°C |
| Load Dump | 36V Continuous / ISO 7637-2 Pulse 5a |
| Vibration Resistance | 20 Grms, from 24Hz to 2000Hz |
| Salt Spray Test | ISO 9227 |
| Shock Resistance | 80G |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
| Warranty | 5 Years |
| APS PN | ABL PN |
| SHD5000LED-FA | 5000-0066 |
| SHD5000LED-WF | 5004-0059 |
| SHD5000LED-F | 5000-0051 |
| SHD5000LED-LR | 5001-0055 |
ABL SHD 5000 LED Series Work Light Specifications Flyer (PDF) ▲
Applications: Heavy equipment, construction, mining, support vehicles, agriculture, forestry
Dimensions:
Width: 4.01" (102 mm), Height: 3.85" (98 mm), Depth: 3.85" (91 mm)
ABL SHD 5000 LED Series Work Light Parts Enquiry ▲
12-24V DC, 48W, 2A @ 24V DC, 5000 Lumens, Asymmetrical Flood, SHD5000LED-FA, 5000-0066
12-24V DC, 48W, 2A @ 24V DC, 5000 Lumens, Wide Flood, SHD5000LED-WF, 5004-0059
12-24V DC, 48W, 2A @ 24V DC, 5000 Lumens, Flood, SHD5000LED-F, 5000-0051
12-24V DC, 48W, 2A @ 24V DC, 5000 Lumens, Long Range, SHD5000LED-LR, 5001-0055
