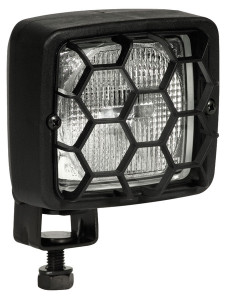

ABL 500/501 Series 3×3 Compact Halogen Work Lamp

Brand: ABL Lights
Origin: USA

---

Click for:

•   Specs Table
•   Parts Enquiry
•   Related Products
•   Photos & Images

The ABL 500 Series Light is still among the most technically advanced halogen work lights available. This compact, high efficiency light provides optimum light output along with high durability and long life.

Available in 12V or 24V. Comes standard with bare leads but also available with DT02 connector. [501 Series features the DT02 connector built into the housing]. This work lamp is the ultimate in a super compact, high efficiency light. The mounting bracket includes vibration dampeners to extend bulb life. Deep reflector technology features and aluminium die-cast reflector.  Wide flood, long range beam patterns are available.

ABL 500/501 Series 3×3 Compact Halogen Work Lamp Specifications  ▲

Housing	High Impact Plastic
Lens	Hardened Glass
Reflector	Aluminized aluminum with active optics technology
Mount	Pendent or pedestal
Bulb	H3
Voltage	12V, 24V, 36V or 48V
Wattage	35W, 55W or 70W
Connection	Bare leads standard, DT02 connector optional
Swivel	Vertical [+90º to -45º] Horizontal [30º Left / 30º Right]
IP Rating	IP66
Beam Patterns	Flood or Long Range

OEM CROSS REFERENCE NUMBER

500-12V – Caterpillar: 234-4328, 201-1423, 212-9347, 214-2968, 219-6483, 234-4327, 234-4328, 234-7727, 234-7729, 240-0102, 201-1422
500-12V – Tigercat: AF044, AF106

500-24V – Hyundai: 21LH-51200
500-24V – Tigercat: AF051, AF106
500-24V – Caterpillar: 219-6485, 219-6487, 234-4323, 234-4325
500-24V – Volvo: 11039846

---

Applications: Agricultural, Construction, Industrial Vehicles

---

Dimensions:
Width: 4.1" (104 mm), Height: 4.9" (125 mm), Depth: 3.3" (83 mm)
