ABL LED5000 Series 57W Work Lamp

ABL LED5000 Series 57W Work Lamp

Brand: ABL Lights
Origin: USA


Click for:

The 2500 Series ABL (5”x5”) Halogen work lamps have long been the OE standard for a wide variety of heavy equipment. ABL proudly launches the new ABL LED5000 series.

The ABL LED5000 draw 2.4A at 24V (57W) yet it outputs an impressive 5,000 effective lumens. 2.5X more effective lumens than your standard HID Xenon work lamp. Class leading surge protection, protected lens and IP69K sealed electronics make this a superior low draw, high output rugged work light.

ABL LED5000 comes with the heavy-duty AVB bracket as standard

APS LED3000_with AVBFixture shock and vibration resistance test results can be used as guides for customers to determine how capable a fixture is of enduring the 24/7 severe vibration experienced on heavy equipment.

Shock resistance measures durability with short burst of vibratory energy. Vibration resistance measures durability over a range of vibration frequencies (Hz) over an extended period of time. Constant 24/7 severe vibration kills poor quality fixtures. Ask for both shock and vibration tests. A 80G shock, 30Grms 10-2000Hz specification is far superior to 80G shock, 30Grms 20-2000Hz.

If fit and forget is your fixture expectation over the stated warranty period then make durability a key selection criteria for your lighting fixtures.

We are confident that the ABL 2500 LED AVB Series featured in this issue will meet your requirements for durability on the most demanding machines. Built to a Standard.

bulldozer with ABL AVB bracket

ABL LED5000 Series 57W Work Lamp Features & Benefits

  • Comes with the AVB heavy-duty bracket as standard
  • 2.5X more effective lumens than your standard HID Xenon work lamp
  • Class-leading surge protection
  • Hardened glass and impact protected optics
  • Rugged and light (only 4.0 lbs / 1.8 kg)

ABL LED5000 Series 57W Work Lamp Specifications

Bulb10 LEDs
eLumens (effective)5000 lm
rLumens (raw)6500 lm
Colour Temperature6000K

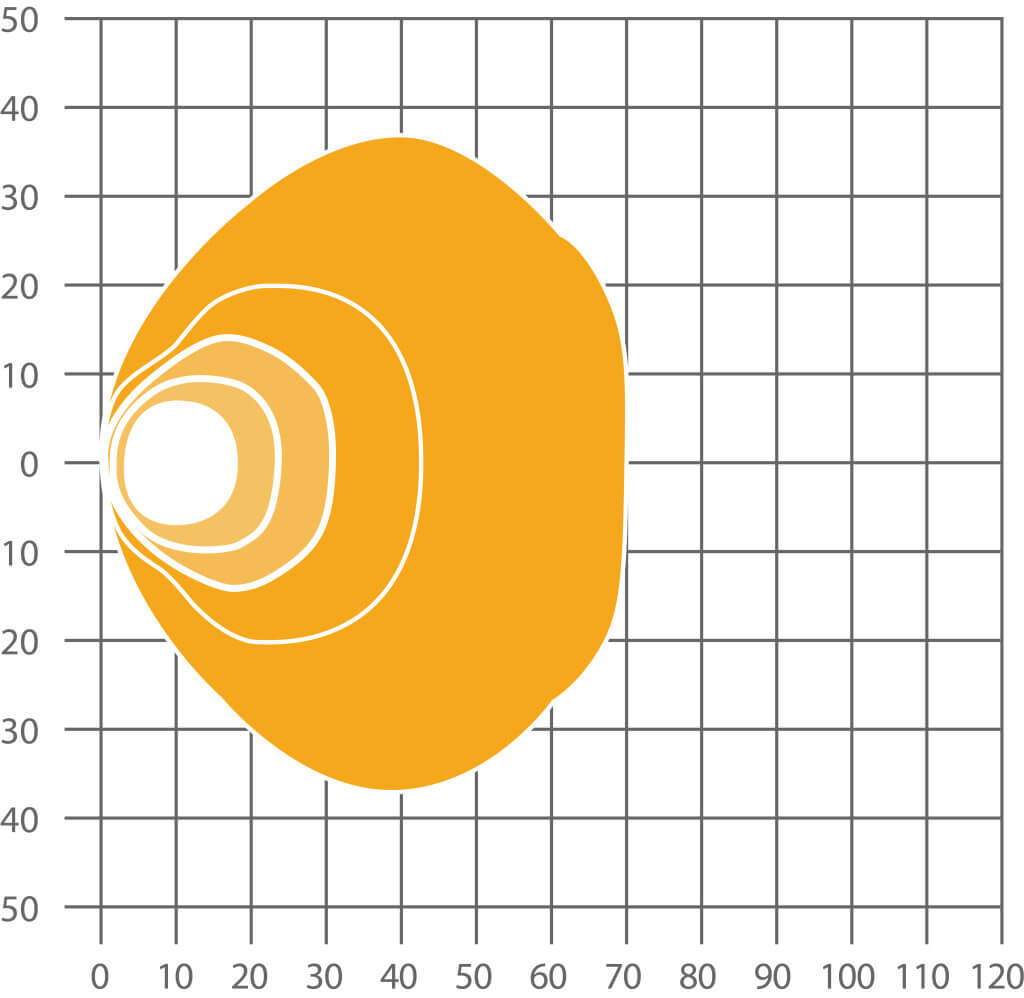

Light PatternWide flood, flood, long range
Consumption57W
Voltage12-100V multi, 24V only option
Intensity2.4A @ 24V
Weight4.0 lbs / 1.8 Kg
ConnectionDeutsch, Amp, Cable
Vibration Rating30Grms over 10-2000Hz
Shock Rating80G
EMCISO 13766 - ISO 14982 - ISO 12985
Surge Protection110V continuous, 200V 100ms, 1800V 50μs
PolarityProtected against reverse voltage
Water TightnessIP 68 - IP 69K
MountPedestal, suspended
HousingAluminium alloy
OpticsHardened glass, impact protected
Operating Temperature-40°C to +85°C
Warranty5 years

ABL LED5000 Series 57W Work Lamp Specifications Flyer (PDF)


Applications: heavy equipment, construction, mining, support vehicles, agriculture, forestry
