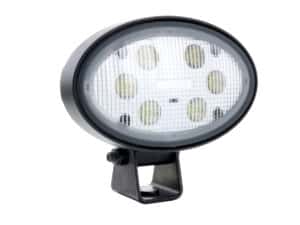

ABL OHD 3000 Oval LED Heavy-Duty Work Light

ABL OHD 3000 Oval LED Heavy-Duty Work Light

Brand: ABL Lights
Origin: USA


Click for:

Discover the ABL OHD 3000 Oval LED Heavy-Duty Work Light, a powerful, robust solution designed for mining and heavy-duty machines. With 3000 effective lumens, it’s redesigned optics and electronic circuit provide intense lighting for the most demanding conditions. The aluminium body with integrated heat sink guarantees optimum thermal management, ensuring a service life of over 30,000 hours. Meeting the most demanding manufacturer standards, this headlamp is suitable for operations requiring strong lighting, whether on a construction site or in intensive agricultural work. Choose excellence with OHD LED, your reliable, high-performance lighting partner for all your professional missions.

ABL OHD 3000 Oval LED Heavy-Duty Work Light Features & Benefits

  • 3000 effective Lumens
  • Meets CISPR 25 Class 5 standards
  • IP68, IP69K ingress protection
  • 15 Grms @ 24-2000Hz vibration resistance
  • 60G shock rating

ABL OHD 3000 Oval LED Heavy-Duty Work Light Specifications

TechLED
Beam PatternFlood, Asymmetrical Flood, Long Range
Lumens3000 effective Lumens
Colour Temperature6000K
Wattage43.5W
Voltage12-24V DC multi-volt
PolarityProtected against reverse voltage
Load Dump / Surge DumpSurge: 36V continuous / ISO 7637-2 Pulse 5a
Current1.8A @ 24V DC
ConnectorDT 2 pin
Vibration Resistance15 Grms @ 24-2000Hz
Shock Resistance60G
IP RatingIP68, IP69K
EMCISO 13766, ISO 14982, ISO 12985, CISPR25 Class 5
Salt Spray TestISO 9227
Operating Temperature-40°C to +85°C
Lens MaterialPolycarbonate lens
Housing MaterialAluminium
MountingPedestal
Dimensions (DxWxH)2.6x5.8x3.6" inches (66x148x92mm)
Weight1.87 lbs (0.85kg)
APS PN ABL PN
OHD3000F A0487A773000



ABL OHD 3000 Oval LED Heavy-Duty Work Light Specifications Flyer (PDF)


Applications: OEM, mining, civil, construction, industrial, agricultural vehicles and forestry.
