Brand:
ABL Lights
Origin: USA
Click for:

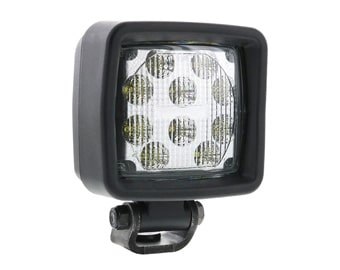

The SHD 3000 heavy-duty LED work light series are designed to exceed everyday demands in all applications. Through stringent engineering and testing practices, these light fixtures are ensured to have the highest efficiency and durability in even the harshest operating conditions.
The SHD 3000 has the same current draw as a HID Ballast work lamp (40W) yet it outputs an impressive 3,000 effective lumens. 35% more effective lumens with no additional current draw! Class leading surge protection, protected lens and IP69K sealed electronics make this a superior low draw, high output rugged work lamp that is built to an OEM standard and not to a compromise.
ABL SHD 3000 LED Series Work Light Features & Benefits ▲
- 12-24V DC multivolt
- Low 36W power consumption
- High 3000 effective lumen output
- 15 Grms @ 24-2000Hz vibration resistance
- IP68, IP69K IP protection
- Flood Asymmetrical, Flood, and Long Range light patterns
ABL SHD 3000 LED Series Work Light Specifications ▲
Voltage | 12-24V DC |
Source | LED |
Amperage | 1.5A @ 24V DC |
Wattage | 36W |
Lumens | 3000 Lu |
Connector | AMP 2 pin, DT 2 pin |
Color Temperature | 6000 K |

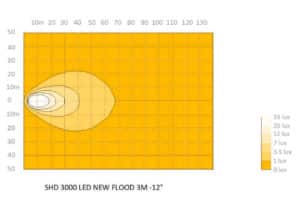

Beam Pattern | Flood Asymmetrical, Flood and Long Range |
Color | White |
Mounting | Pedestal, suspended |
IP Protection | IP68, IP69K |
Polarity | Protected against reverse voltage |
Electronic Thermal Management | Full output at +35°C ambiant, 25 % dimmed at + 50°C ambiant |
Operating Temperature | -40°C to +85°C |
Load Dump | 36V Continuous / ISO 7637-2 Pulse 5a |
Vibration Resistance | 15 Grms, from 24Hz to 2000Hz |
Salt Spray Test | ISO 9227 |
Shock Resistance | 60G |
EMC | EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class 5 |
Warranty | 5 Years |
APS PN | ABL PNs |
SHD3000LED-F | D15100, A0787A7528 |
SHD3000LED-FA | SHD3000LED_FLA |
SHD3000LED-LR | A0787A7631 |
ABL SHD 3000 LED Series Work Light Specifications Flyer (PDF) ▲
Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture
ABL SHD 3000 LED Series Work Light Parts Enquiry ▲
Flood, 3000Lu, 12-24V DC, 1.5A @ 24V DC, 36W, D15100, A0787A7528
Long Range, 3000Lu, 12-24V DC, 1.5A @ 24V DC, 36W, A0787A7631
Asymmetric Flood, 3000Lu, 12-24V DC, 1.5A @ 24V DC, 36W, SHD3000LED_FLA
Wide Flood, 3000Lu, 12-24V DC, 1.5A @ 24V DC, 36W
