ABL ST2000 LED

ABL ST2000 LED

Brand: ABL Lights
Origin: USA


Click for:

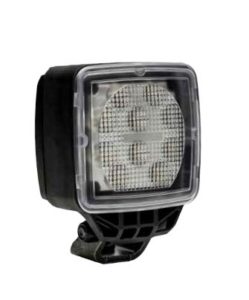

The ST2000 LED is a compact LED work light designed for high efficiency and durability. Built to last, these fixtures feature a 60G shock rating, 15 Grms @ 24-2000Hz, and an ingress protection rating of IP68 and IP69K – making it suitable for even the harshest operating conditions.

10 LEDs output an impressive 2000 Lumens for only 22W, and there are plenty of lens options available including: Amber glass, Amber plastic, red plastic, blue plastic, clear plastic and clear plastic cover lens.

ABL ST2000 LED Features & Benefits

  • Designed to exceed everyday demands in all applications
  • Stringent engineering and testing practices
  • Highest efficiency and durability in the harshest conditions

ABL ST2000 LED Specifications

Bulb10 LED - 2000 Lumen
Lifetime20,000 hours
Color Temperature6000°K

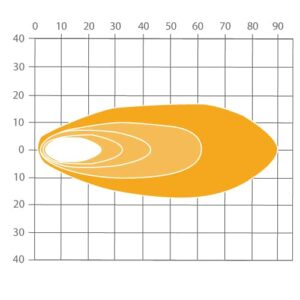

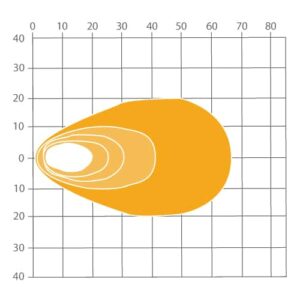

Light PatternsHardened glass lens: Flood Asymmetrical, Flood, Long Range
Plastic cover lens: Flood Asymmetrical, Flood
Plastic lens: Flood
Consumption22W
VoltageMulti 12-24V
Intensity0.92A @ 24V
Weight0.7kg
Vibration resistance15 Grms from 24 to 2000Hz
Shock resistance60G
EMCISO 13766, ISO 14982, ISO 12895, CISPR25
Load Dump36V continuous
58V 160 ms
1800V 50 √s
PolarityNo Polarity
Electronic Thermal ManagementFull output @ +35°C ambiant
20% dimmed @ +50°C ambiant
Water TightnessIP68/69K
Operating Temperature-40°C to +85°C
Salt SprayISO 9227
LensHardened glass, plastic cover lens, plastic lens
Lens OptionsAmber glass lens, amber plastic, red plastic, blue plastic, clear plastic and clear plastic cover lens
ReflectorFree form reflector
Warranty20 000 operating hours or 5 years

ABL ST2000 LED Specifications Flyer (PDF)


Applications: Construction, mining, support vehicles, material handling, agriculture and forestry
