Brand:
ABL Lights
Origin: USA
Click for:

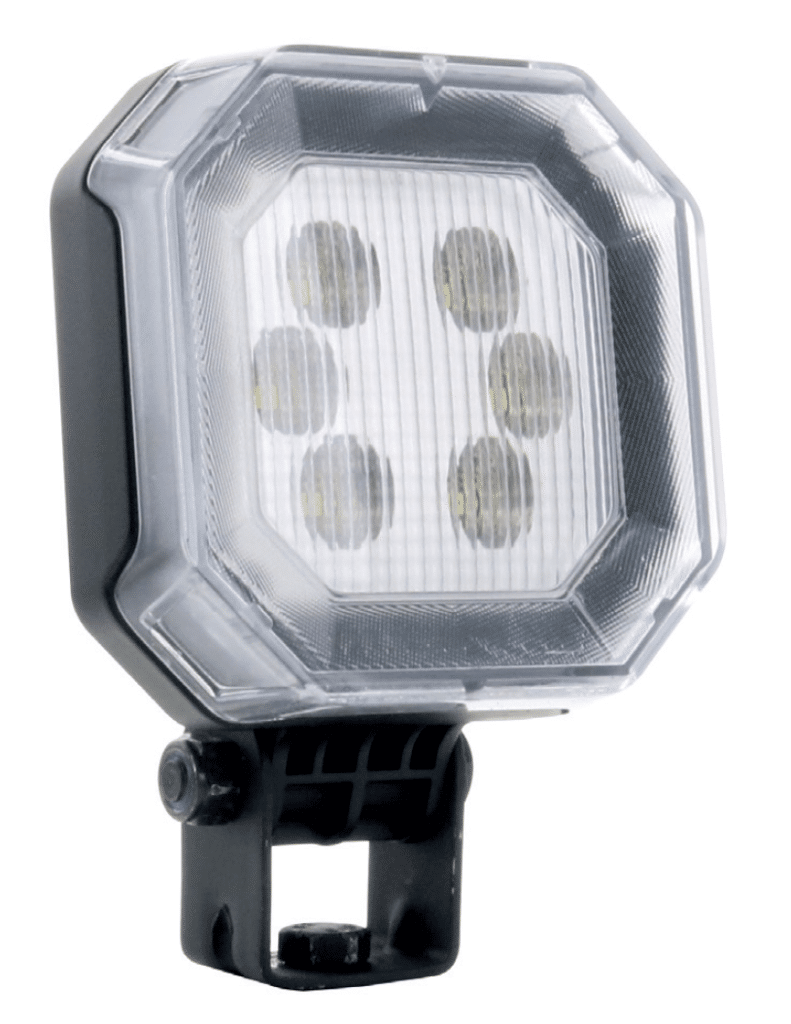

Discover the SV1000 LED work Light, a robust halogen alternative designed for professionals. Made with polycarbonate, it’s lightweight and durable. Upgrade now for reliable, hassle-free illumination that lasts. Make the switch to SV1000 LED and experience efficient lighting today!
ABL SV1000 LED Work Light Specifications ▲
| Voltage | Multi-volt 12-24V DC |
| Current Draw | 0.34A @ 24V DC |
| Lens Material | Polycarbonate |
| Lumens | 1000 Lu |
| Light Pattern | Flood |
| Connector | Built-in DT 2 ways, bare lead wiring harness |
| Load Dump | 36V continuous/ ISO 7637-2 Pulse 3b |
| Polarity | Protected against reverse voltage |
| Vibration Resistance | 10 Grms, from 24Hz to 2000Hz |
| ETM | Protected against overheating |
| IP Rating | IP68 - IP69K |
| EMC | ISO 13766 - ISO 14982 - ISO 12985 - CISPR25 Class3 |
| Salt Spray Test | ISO 9227 |
| Shock Rating | 60G |
| Operational Temperatures | -40°C to +55°C |
| Mounting | Pedestal, suspended |
| Weight | 280g |
| Warranty | 1 Year |
ABL SV1000 LED Work Light Specifications Flyer (PDF) ▲
ABL PNs
DT 2-way connector: D16111, A0767A769600
DT 2-way connector with switch: D16155, A0767A769700
Bare wire cable: D16156, A0767A769800
Bare-wire cable with switch: D16157, A0767A769900
Applications: Heavy equipment, mining, construction, road and utility equipment, forestry, agriculture
