APS LW400 Series LED Linear Walkway Light

APS LW400 Series LED Linear Walkway Light

Brand: APS Lighting & Safety

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

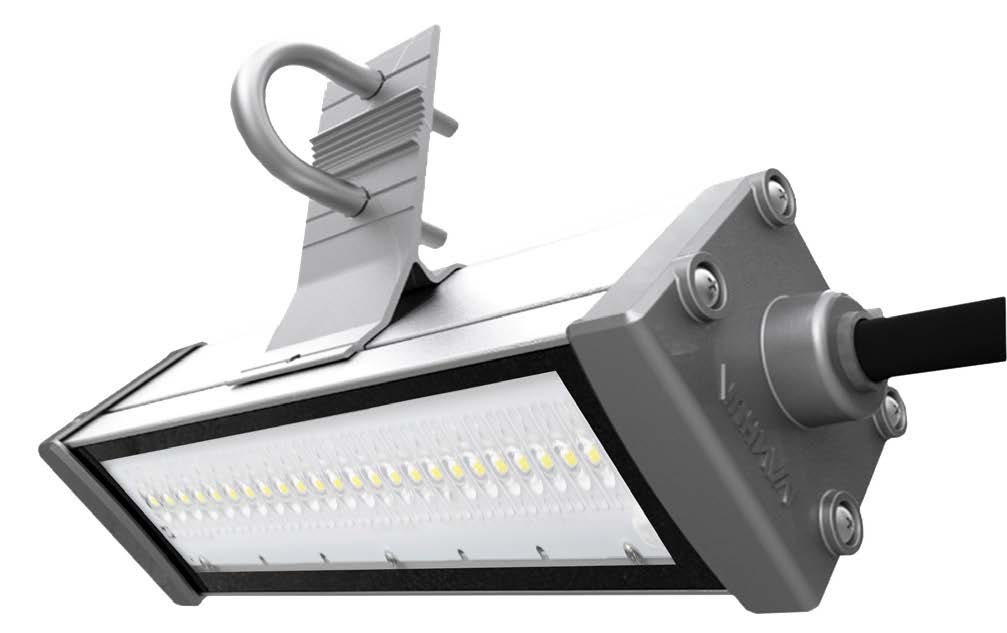

The LW400-BP-20W is 20W LED walkway light designed for walkways of large-scale port cranes, walkways of conveyor systems and power stations. This fixture includes both 40mm diameter Pole mount bracket plus Bulkhead bracket, and 5m international cable.

APS LW400 Series LED Linear Walkway Light Features & Benefits  ▲

  • Industrial-grade LED chips and driver
  • One for one replacement for 70W HID fittings
  • Tempered glass effective against ageing and colour-changing
  • IP65 fixture, waterproof & shock resistant
  • Wide 140° optical lens provides even light distribution

APS LW400 Series LED Linear Walkway Light Specifications  ▲

TypeLEDs
Lumens2200 Lu
Color Temperature5500 - 6000K
Voltage100-240V AC
Wattage20W
Beam Angle140°
Humidity10% ~ 95% (no coagulation)
Operating Temperature-30˚C to +45˚C (cover heat protection)
IP RatingIP65
HousingForged aluminum alloy
LensTempered glass
MountPole (spigot) Ø 32-40mm, Bulkhead
Weight2.2lbs (1kg)

APS LW400 Series LED Linear Walkway Light Specifications Flyer (PDF)  ▲

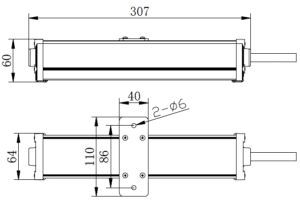

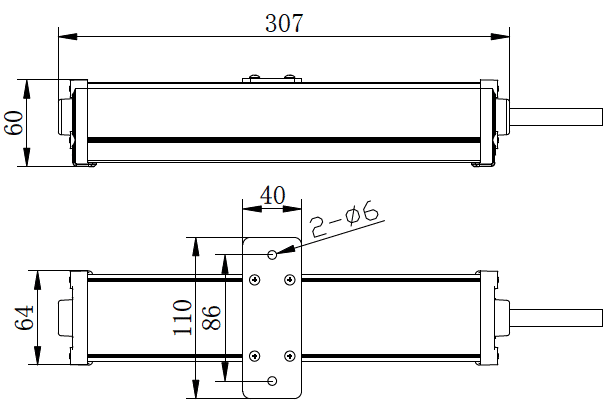

Dimensions:
Width: 12.09" (307 mm), Height: 2.52" (64 mm), Depth: 5.83" (148 mm)

APS LW400 Series LED Linear Walkway Light Parts Enquiry  ▲

Part#
Description
