Brand:
Brigade
Origin: Europe
Click for:

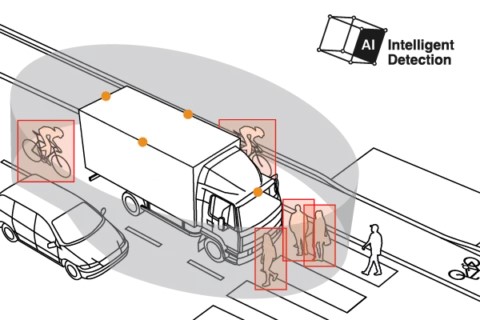

Backeye®360 AI Intelligent detection is a 360-degree high-definition four-camera system enhanced by state-of-the-art AI technology to identify humans and effectively eliminate all blind spots. Providing a comprehensive view of the surrounding area in a single image, Backeye®360 AI audibly and visually alerts the driver when a person is detected using artificial intelligence.
360° Cameras with AI Technology
- Artificial Intelligence: Used to identify and detect vulnerable road users
- Automatic Calibration: Saves time on set-up and installation
- High Definition: Delivers a clear and sharp image displayed on the monitor
- Triggered Alerts: Left, right, reverse & speed signal triggers
Brigade Backeye 360 AI Features & Benefits ▲
- 1080p HD 360° image
- 15 different view modes (10 x landscape & 5 x portrait configuations). Front & rear crossing-traffic. Customisable vehicle position
- 2 pre-defined configuration groups
- Configure & customise set up via PC calibration software
- Left, right, reverse & speed signal triggers
- Configurable on-screen parking markers
- Customisable overlay guidelines per camera view
- 2 x video outputs
- Ultra-wide viewing angle cameras: (HxV) 190° x 130°
- 1/4” CMOS sensor
- Video output: AHD 1.0 and NTSC
Brigade Backeye 360 AI Videos▲
Brigade Backeye 360 AI Specifications▲
| Power Consumption | 15W / ≤ 26W @12V |
| Current Consumption | 1.22A / ≤ 2.2A @12V |
| Vibration Rating | 2.8G (Vertical Ax-is - 32hrs) |
| Camera + Connector IP Rating | IP69K + Connector IP66 |
| Mechanical Shock | TBC |
| Operating Temperature | -30° to +70°C |
| Storage Temperature | -40° to +85°C |
| Operating Humidity | 65% @ 25°C |
| Operating Voltage | +10/32V DC |
| Output Resolution | AHD - 1920 x 1080 ; CVBS - 720 x 480 |
| Camera Resolution | 1920 x 1080 |
| Number of Trigger Inputs | 0.1 Lux |
| Required Illumination | 1.0 Vp-p / 75Ω |
| Approved Standards | E-Mark - (UNECE Reg. 10 Rev. 06) CE - (EN 50498:2010) FCC - (47 CFR Part 15 Subpart B, Class A) ICES - Industry Canada (003:2016, Issue 6, Class A) Ingress Protection - (ISO 20653:2013) RoHS |
| Warranty | 3 years |
Brigade Backeye 360 AI Specification Flyer (PDF)▲
Applications: On and off-road applications
