ECCO 5587 Reflex Series 15″ LED Minibar

Click to enlarge

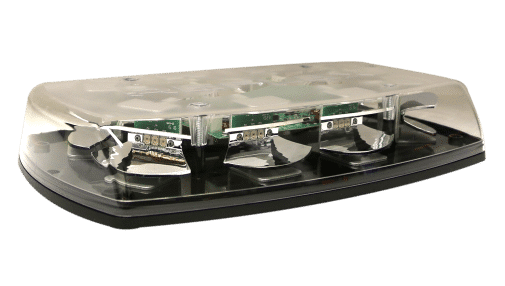

ECCO 5587 Series Reflex LED Minibar

ECCO 5587 Series Reflex LED Minibar with Vacuum-Mount

ECCO 5587 Series Reflex LED Minibar with Magnet Mount

ECCO 5587 Series Reflex LED Minibar with Permanent 4-bolt Mount

ECCO 5587 Series Reflex LED Minibar line drawing

Brand: ECCO
Origin: USA

APS is pleased to announce the addition of the 5587 Series Reflex® LED microbars in a new, dual-color option. This includes: Clear Lens with Amber/Clear illumination and Clear Lens with Amber/Blue illumination.

Click for:

• Features & Benefits
• Videos, Photos & Images
• Specs Table
• Specs Flyer (PDF)
• Parts Enquiry
• Related Products

Reflex™ LED minibars provide a compact yet powerful warning solution that offers the flexibility of either permanent, vacuum-magnet or magnet mounting. Featuring 12-24 VDC operation, the Reflex™ uses high intensity LEDs and reflective technology to maximize light output. Users can select from 18 flash patterns, either via trigger wire on permanent mount models or cigarette plug switch on magnetic models. Permanent mount models can also be synchronized to operate multiple lights alternately or simultaneously.

ECCO 5587 Reflex Series 15″ LED Minibar Features & Benefits ▲

Eight reflector modules, each with three LEDs
Choice of 18 flash patterns
Synchronization capable (permanent mount only)
Cigarette plug with on/off and flash pattern selection switch
(vacuum-magnet & magnet only)
Polycarbonate base and low profile lens
SAE J845 Class I, CE, R10, IP65 (permanent mount only)
Temperature range: -30°C to +50°C

ECCO 5587 Reflex Series 15″ LED Minibar Videos ▲

ECCO 5587 Reflex Series 15″ LED Minibar Specifications ▲

Type	LED
Voltage	12-24V DC
Current Draw	5.1A @ 12V DC
Modules	8 x Reflector Modules
Flash Patterns	18
Operating Temperature	-30°C to +50°C
Approvals	SAE J845 Class I, CE, R10, IP65 (permanent mount only)
Mounting Options	Permanent (4-bolt), Magnet, Vaccuum-mount
Lens Colour Options	Amber, Clear, Amber/Clear, Amber/Blue
Housing/Lens	Polycarbonate base and low profile lens
Dimensions (DxWxH)	9.3x15.3x2.5" (236x389x64mm)

Mounting and Colour Options

Part Number	Mount	Lens Colour	Illumination
5587A	Permanent (4-bolt)	Amber	Amber
5587CA	Permanent (4-bolt)	Clear	Amber
5587CAC	Permanent (4-bolt)	Clear	Amber/Clear
5587CAB	Permanent (4-bolt)	Clear	Amber/Blue
5587A-MG	Magnet	Amber	Amber
5587CA-MG	Magnet	Clear	Amber
5587CAC-MG	Magnet	Clear	Amber/Clear
5587A-VM	Vacuum-Mount	Amber	Amber
5587CA-VM	Vacuum-Mount	Clear	Amber
5587CAC-VM	Vacuum-Mount	Clear	Amber/Clear
