Brand:
ECCO
Origin: USA
Click for:
SAE Class II Strobe

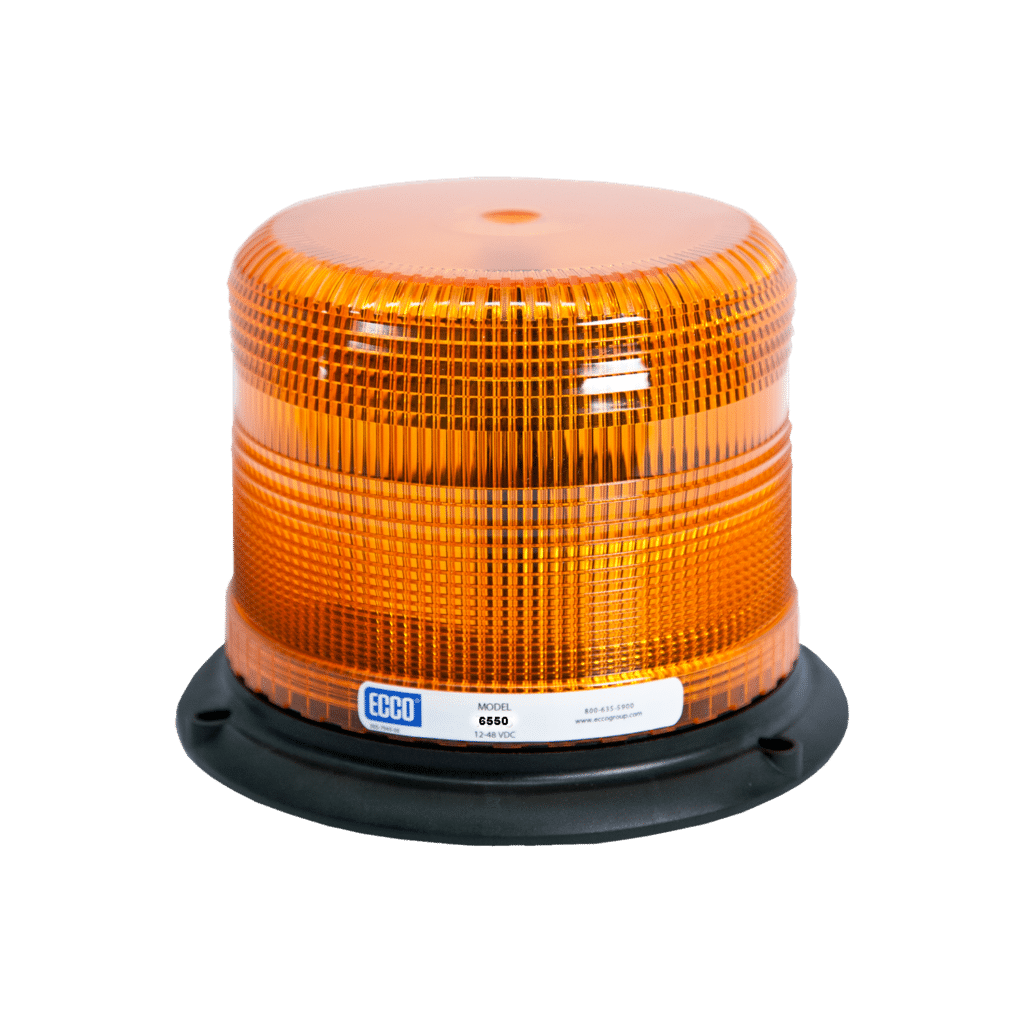

ECCO’s 6500 Series strobe light offers outstanding value when a cost-effective SAE Class II light is required. Featuring a shock-resistant five-point power supply mounting and robust reinforced polypropylene base, this series of lights are suitable for both on- or off-highway applications. Thread-on polycarbonate lens and snap-fit flashtube allow easy field service without tools. Model-specific options include double or quad flash patterns.
ECCO 6550 / 6570 Series Features & Benefits ▲
- Robust reinforced polypropylene base
- Thread-on polycarbonate lens and snap-fit flashtube allows easy field service
- Shock-resistant circuit board mounting incorporates 5 support points
- Consistent operation during voltage and temperature changes
ECCO 6550 / 6570 Series Specifications ▲
| Voltage | 12-48V DC or 12-24V DC |
| Amps | 2.4A @ 12-48V DC, 2.4A @ 12-24V DC |
| FPM | 80 x2 or 65 x4 |
| Mount | 3 Bolt/1” Pipe Mount, Vacuum-Magnet Mount or Semi-Permanent HBT Mount |
| Profile | Low (6550A, 6550A-VM, 6550A-HBT) Medium (6570A, 6570A-VM, 6570A-HBT) |
| Temperature Range | -22°F to +122°F (-30°C to +50°C) |
| Standards Compliance | SAE Class II, CE, R10 |
| Warranty | Strobe: 2 Years, Flashtube: 6 Months |
ECCO 6550 / 6570 Series Specifications Flyer (PDF) ▲
Dimensions:
Width: 6.5" (165 mm), Height: 4.8 (Low), 6.7 (Medium)" (121 (Low), 170 (Medium) mm)
ECCO 6550 / 6570 Series Parts Enquiry ▲
Low Profile, 12-48V DC, 2.4A @ 12-48V DC, 80 x2 or 65 x4 FPM, 3 Bolt Flange / 1” Pipe Mount
Low Profile, 12-24V DC, 2.4A @ 12-24V DC, 80 x2 FPM, Semi-Permanent HBT Mount
Low Profile, 12-24V DC, 2.4A @ 12-24V DC, 80 x2 FPM, Vacuum Magnet Mount
Medium Profile, 12-48V DC, 2.4A @ 12-48V DC, 80 x2 or 65 x4 FPM, 3 Bolt Flange / 1” Pipe Mount
Medium Profile, 12-24V DC, 2.4A @ 12-24V DC, 80 x2 FPM, Vacuum Magnet Mount
Medium Profile, 12-24V DC, 2.4A @ 12-24V DC, 80 x2 FPM, Semi-Permanent HBT Mount
