Brand:
J.W. Speaker
Origin: USA
Click for:

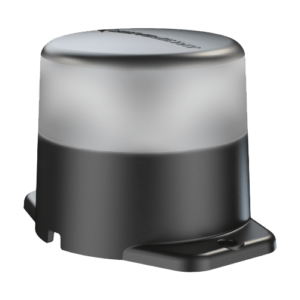

Durably designed, the model 539 is made with an acrylic lens that resists scratching and scuffing, so it lasts longer than stock warning and indicator lights. J.W. Speaker 539 LED Strobe Light 0646481 (W), 471 (B), 451 (R), 461 (G) using a solid optic design with a single LED, this industrial warning light utilises multiple LED colours instead of coloured lenses, giving you a cleaner, tidier package with improved performance!
J.W. Speaker 539 LED Strobe Light Features & Benefits ▲
- Available in strobe warning lights or indicator lights
- Strobe warning light colours: amber, red, green, blue, & white
- Indicator light colours: red/green
- Utilises a single LED for different colours instead of coloured lenses
- Polycarbonate housing
- 12-80 VDC input and operating voltage
- Impact-resistant acrylic lens
- Flange mount or pipe mount for the Model 538
J.W. Speaker 539 LED Strobe Light Specifications ▲
| Type | LED Strobe Light |
| Colours Available | Amber, Red, Green, Blue, White, Red/Green |
| Beam Pattern | Warning - Strobe |
| Class | Class III |
| Flash Rate | 60 +/- 10 fpm |
| Input Voltage | 12-80V DC |
| Operating Voltage | 12-80V DC |
| Red Wire | Positive |
| Black Wire | Negative |
| Current Draw | 0.256 @ 12V DC, 0.088A @ 48V DC, 0.076A @ 80V DC (539-A, 539-R, 539-G, 539-B, 539-W) 0.178A @ 12V DC (Red LED) (539-RG) 0.188A @ 12V DC (Green LED) (539-RG) 0.073A @ 48V DC (Red LED) (539-RG) 0.076A @ 48V DC (Green LED) (539-RG) 0.067A @ 80V DC (Red LED) (539-RG) 0.068A @ 80V DC (Green LED) (539-RG) |
| Shape | Round |
| Outer Lens Material | Clear Acrylic |
| Housing Material | Polycarbonate |
| Housing Color | Black |
| Mounting Type | Flange Mount |
| Minimum Operating Temperature | -40 °C / -40 °F |
| Maximum Operating Temperature | 65 °C / 149 °F |
| Connector or Wiring | 13.5" Bare Leads |
| Weight | 0.30 lbs / 0.14 kgs |
| Shipping Weight | 1.51 lbs / 0.68 kgs |
| APS PN | JWS PN |
| A539*-12/80 | 0646481 (W), 471 (B), 451 (R), 461 (G) |
J.W. Speaker 539 LED Strobe Light Specification Flyer (PDF) ▲
Forklift Red/Green Warning & Indicator LED Strobe Light
J.W. Speaker’s Models 538 and 539 LED strobe safety warning lights have been re-imagined to now include a new indicator light. With the same sleek, low-profile design as warning lights, the indicator lights add in another level of precaution on the worksite. By lighting up red or green, the lights let the driver know if they need to buckle up or are good to go. With easy to mount applications as a Model 538 pipe mount or a Model 539 flange mount, safety has never been so simple.
Applications: Construction, agriculture, Industrial, material handling, forklifts, warehouses, mining, railroad, specialty vehicles, trucks and buses
Dimensions:
Width: 2.79" (70.80 mm), Height: 2.6" (66.10 mm), Depth: 2.79" (70.80 mm), Dia: 2.93" (74.4 mm)
J.W. Speaker 539 LED Strobe Light 0646481 (W), 471 (B), 451 (R), 461 (G) Parts Enquiry ▲
12-80V Amber Class III LED Strobe Light with Flange Mount (0646441)
12-80V Red Class III LED Strobe Light with Flange Mount (0646451)
12-80V Green Class III LED Strobe Light with Flange Mount (0646461)
12-80V Blue Class III LED Strobe Light with Flange Mount (0646471)
12-80V White Class III LED Strobe Light with Flange Mount (0646481)
12-80V Red/Green LED Indicator Light (0647131)
