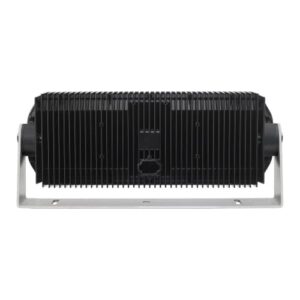

J.W. Speaker 623 – 20″ x 9″ LED Work Lamp

J.W. Speaker 623 – 20″ x 9″ LED Work Lamp

Brand: J.W. Speaker
Origin: USA


J.W. Speaker 623 – 20″ x 9″ LED Work Lamp

Click for:

When you’re looking for the most illumination possible, look no further than the Model 623 – 20″ x 9″ LED Work Lamp. Boasting bright, white light, the Model 623 high-output LED scene light is J.W. Speaker’s most powerful product yet. It is perfect for a wide range of uses, including mining equipment, light towers, and any application for which you need a vast amount of light.
The 623 series is available in three beam patterns, Narrow Flood (NF, 0546671), Medium Flood (MF, 0546681), and Wide Flood (WF, 0546671).

J.W. Speaker 623 – 20″ x 9″ LED Work Lamp Features & Benefits

  • 40,000 Raw Lumens; 20,000 Effective Lumens
  • Available in 24V DC or 80-270V AC configurations
  • Wide Flood, Medium Flood & Narrow Flood beam patterns available
  • Durable glass lens stands up to harsh environmental conditions
  • Rugged solid state LEDs can withstand shock & vibration
  • Long-lasting LEDs mean never having to replace another bulb again!
  • Die-cast aluminium housing provides maximum protection
  • Universal mount

J.W. Speaker 623 – 20″ x 9″ LED Work Lamp Specifications

Input Voltage24-48V DC
Operating Voltage16-60V DC
Current Draw10A @ 24V DC
5A @ 48V DC
rLumens40,000Lu
eLumens20,000Lu
Beam PatternsMedium Flood Narrow Flood Wide Flood
Dimensions (W x H x D)498.60 mm (19.63 in) x 216.41 mm (8.52 in) x 88.90 mm (3.5 in)
Weight18.00 lbs / 8.16 kgs
Minimum Operating Temperature-40 °C / -40 °F
Maximum Operating Temperature65 °C / 149 °F
Housing MaterialDie-Cast Aluminum
MountUniversal Pedestal Mount
Standards CompliancesBuy America Standards
Eco Friendly
IEC IP67
UL Recognized
Warranty4 Year Limited Warranty
APS PN JWS PN
A623WF-24V 0546691
A623MF-24V 0546681
A623NF-24V 0546671



J.W. Speaker 623 – 20″ x 9″ LED Work Lamp Specifications Flyer (PDF)


Applications: Agriculture, Construction, Marine, Mining, Off-RoaD 4x4, Power Sports, Railroad, Specialty Vehicles, Truck & Bus


Dimensions:
Width: 19.63" (498.60 mm), Height: 8.52" (216.41 mm), Depth: 3.5" (88.90 mm)
