Brand:
J.W. Speaker
Origin: USA
Click for:

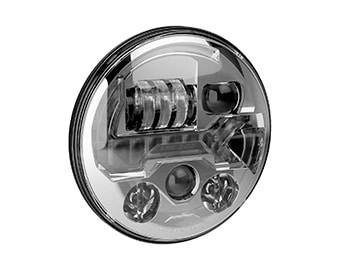

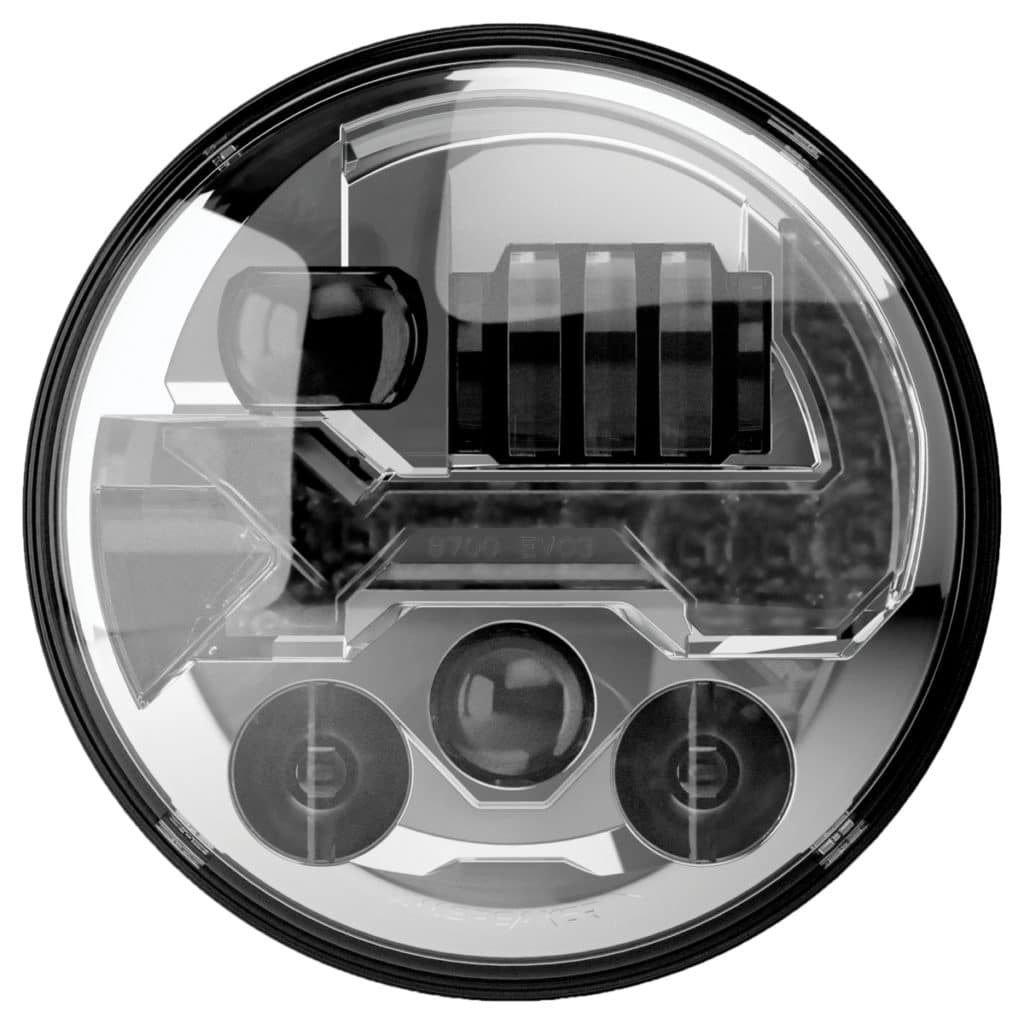

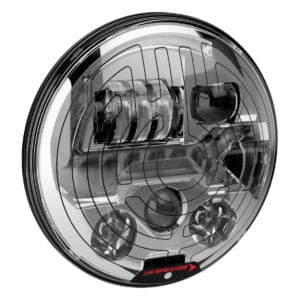

7″ Round Heavy Duty Truck LED Headlights

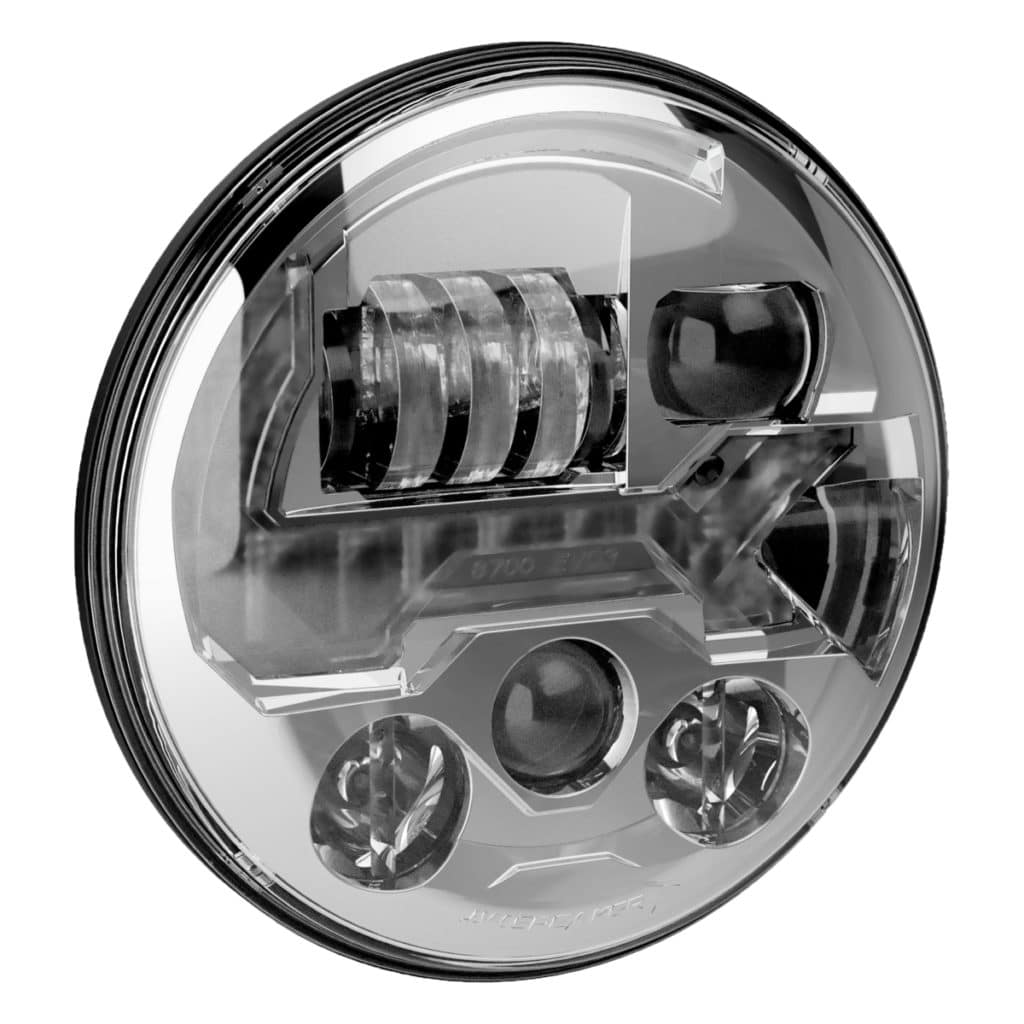

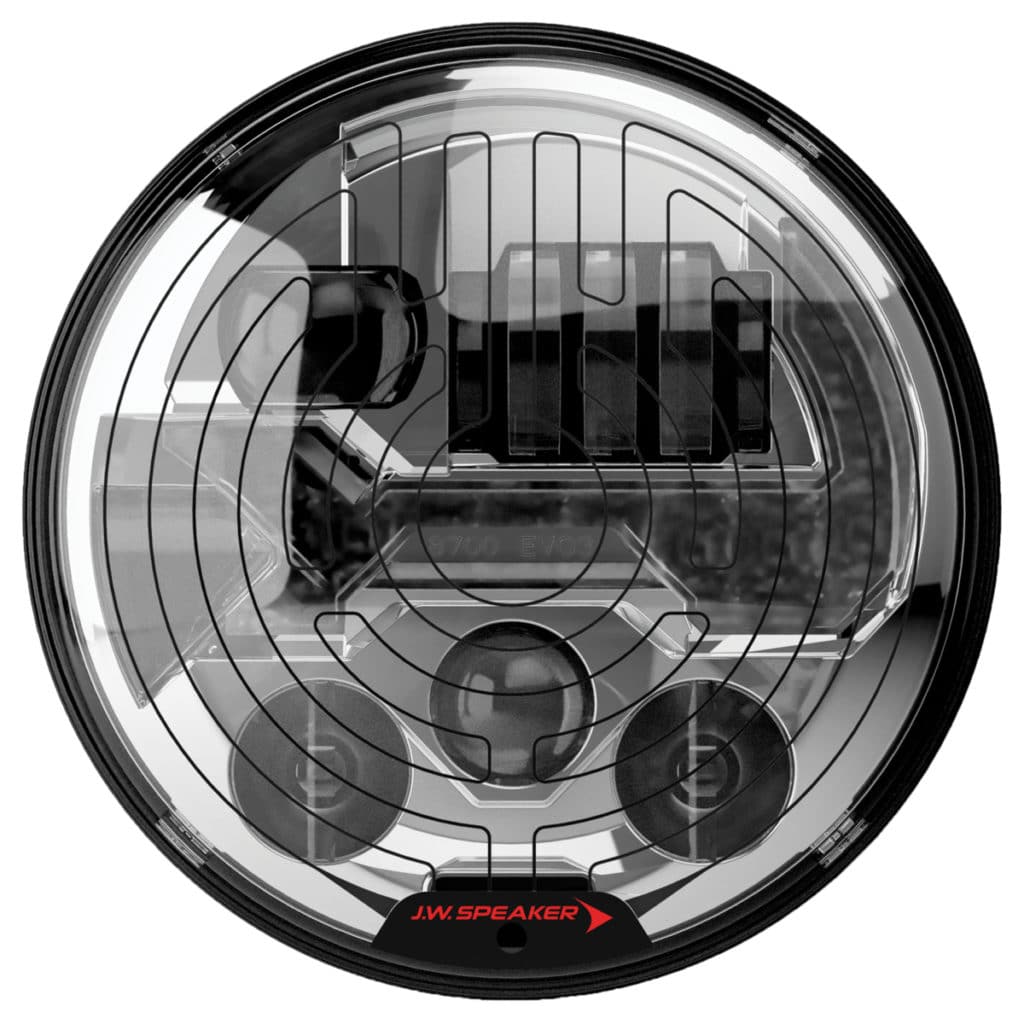

The 8700 EVO 3 is a 5-in-1 headlight that has state-of-the-art optics and technology that provides a crisp beam with a wider, more even pattern. Built with five functions packed into one Heavy Duty Truck LED Headlight: High Beam, Low Beam, Turn Signal, Daytime Running Light (DRL), and Front Position. Powerful LEDs & precisely engineered light patterns give you the best visibility for the best driving experience.
Durable, dependable and stunning, the 8700 EVO 3 headlights are the definition of heavy-duty. Designed to withstand shock and vibration, these headlights outlast and outshine basic stock lights.
The J.W. Speaker 8700 Evolution 3 LED Headlights are specifically designed for over the road trucks, heavy-duty trucks, refuse trucks, and easily retrofits any 7” round halogen headlight.
J.W. Speaker 8700 Evolution 3 LED Headlights Features & Benefits ▲
- Five functions packed into one Heavy Duty Truck LED Headlight: High Beam, Low Beam, Turn Signal, Daytime Running Light (DRL), and Front Position.
- Powerful LEDs & carefully engineered light patterns give you the best visibility & driving experience
- Dual Burn® high beam provides both widespread visibility and a powerful punch of light down the road
- SmartHeat heated lens option to keep your headlights clear of snow and ice year-round
- Street Legal, supporting DOT & ECE compliance for on-road use
- Easy plug & play installation
- Unique look; available with chrome bezel
- Kit of 2 headlights + harnesses and single headlights for plug & play installation
J.W. Speaker 8700 Evolution 3 LED Headlights Specifications ▲
| Type | LED |
| Input Voltage | 12V DC |
| rLumens | 3,600 (High Beam), 3,020 (Low Beam) |
| eLumens | 1,320 (High Beam), 1,201 (Low Beam) |
| Candela Output | 68,800 (High Beam), 24,800 (Low Beam) |
| Colour Temperature | 5000K |
| Beam Patterns | Forward Lighting - Daytime Running Light Forward Lighting - High Beam (DOT/ECE) Forward Lighting - Low Beam (ECE Right Hand) Forward Lighting - Low Beam (DOT/ECE) Signalization - Front Position Signalization - Turn (Front) |
| Operating Voltage | 9-16V DC |
| Current Draw | 2.33A @ 12V DC (Low Beam) 3.25A @ 12V DC (High Beam) 3.00A @ 12V DC (Turn) 0.45A @ 12V DC (Positiion) 3.00A @ 12V DC (DRL) |
| Transient Spike Protection | 150V Peak @ 1 HZ-100 Pulses |
| IP Rating | IP69K |
| Standards Compliances | ECE Reg 112, ECE Reg 7, ECE Reg 87 FMVSS 108 s10.1 (Table XIX), FMVSS 108 s10.1 (Table XVIII), FMVSS 108 s7.1 (Table VI) Tested to ECE Reg. 10 (Radiated Emissions only) |
| Outer Lens Colour | Clear |
| Housing Material | Aluminum |
| Outer Lens Material | Polycarbonate |
| Housing Colour | Black |
| Bezel Colour | Chrome |
| Retrofits | 7" Round Headlights or 2D1 PAR56 |
| Connector or Wiring | H4 / (3X) 11.97" Flying Leads |
| Weight | Single Light: 2.25 lbs (1.02 kgs), Light Kit: 5.10 lbs (2.31 kgs) |
| Dimensions (H x W x D) | 176.5 x 176.5 x 100.3 mm (7.0 x 7.0 x 3.95 inch) |
| APS PN | JWS PN |
| A8700 EVO 3 | SPE-0558243 |
J.W. Speaker 8700 Evolution 3 LED Headlights Specification Flyer (PDF) ▲

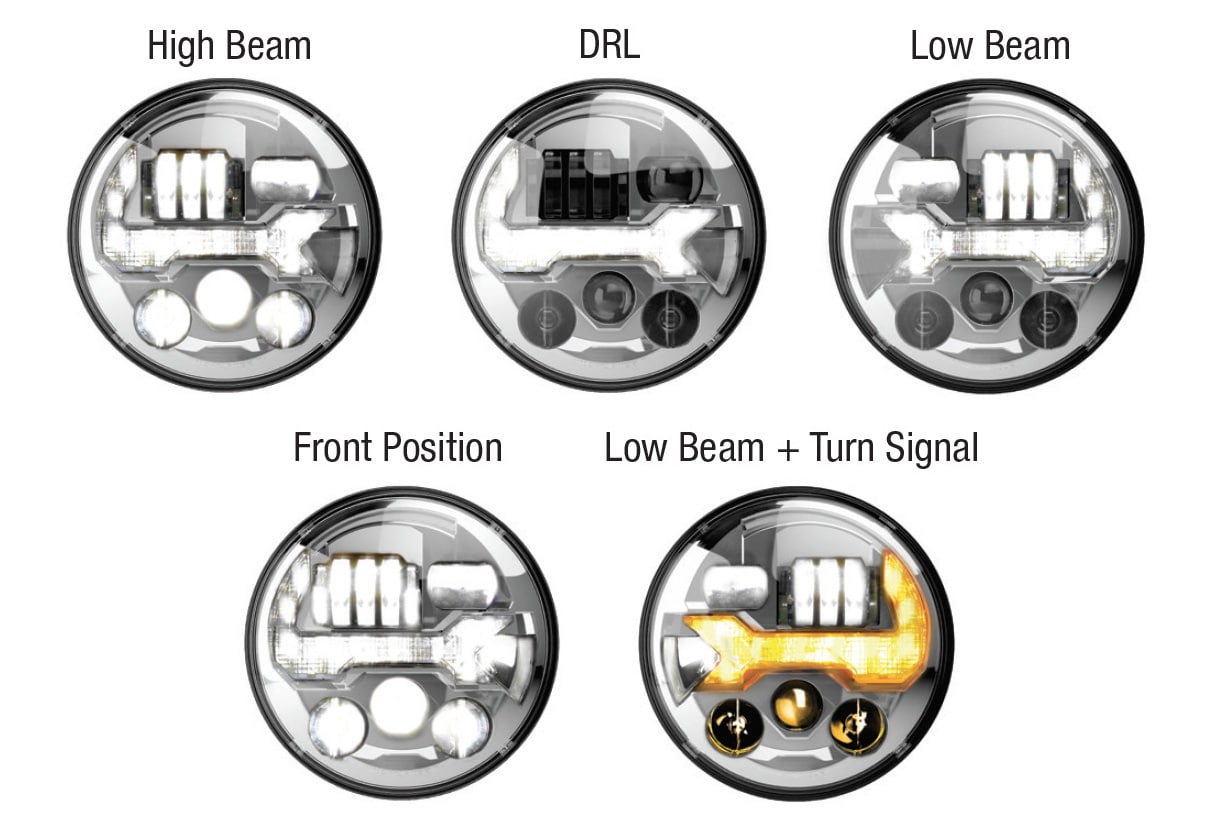

J.W. Speaker 8700 Evolution 3 LED Headlights Beam Patterns

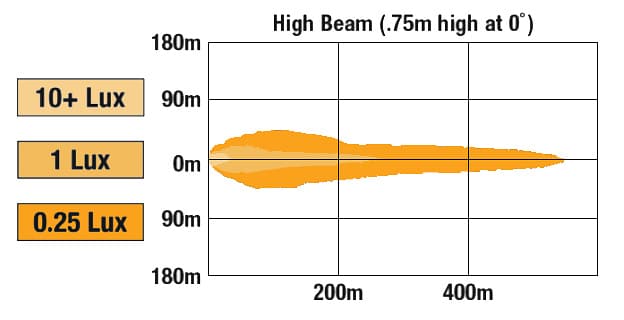

High Beam: Dual Burn® for both widespread long-distance visibility

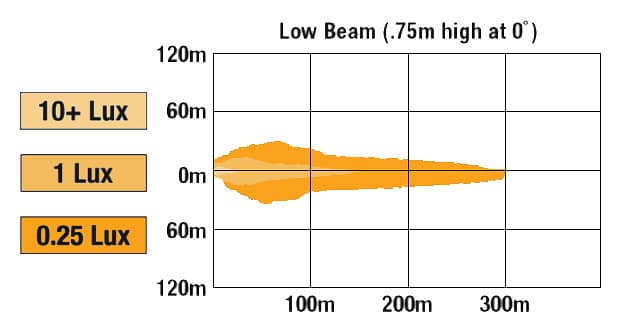

Low Beam: Brilliant short-range illumination
Daytime Running Light: Eye-catching visibility for daytime driving
Turn Signal: Amber LEDs stand out against white for clear indications
Front Position: Emit brilliant white LED light for maximum visibility
In The Box: The 8700 EVO 3 comes the H4 Connector for an easy, plug & play installation. Sealed to IP69K for protection against dust and water so you can drive rain or shine, sand or pavement, without worry.

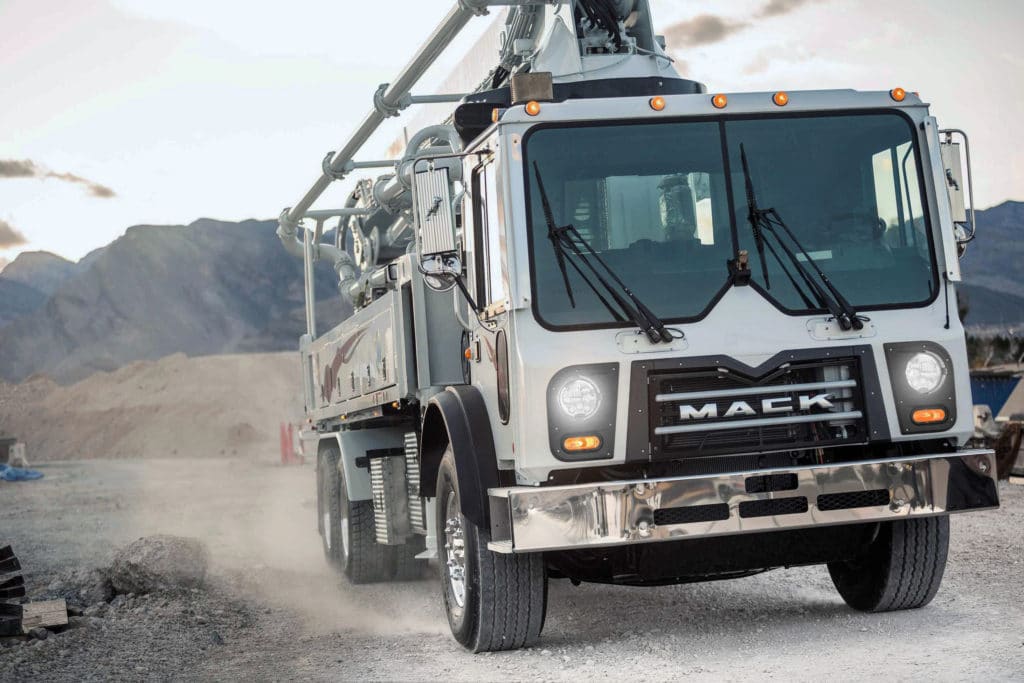

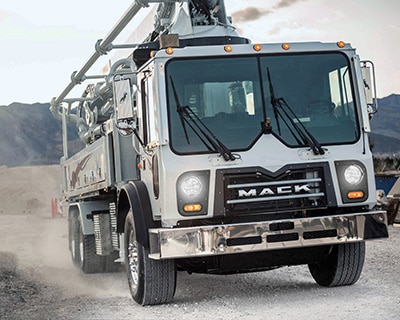

Applications: Trucks and buses, refuse trucks, fleets, automotive, construction, industrial, mining, off-road 4x4, specialty vehicles

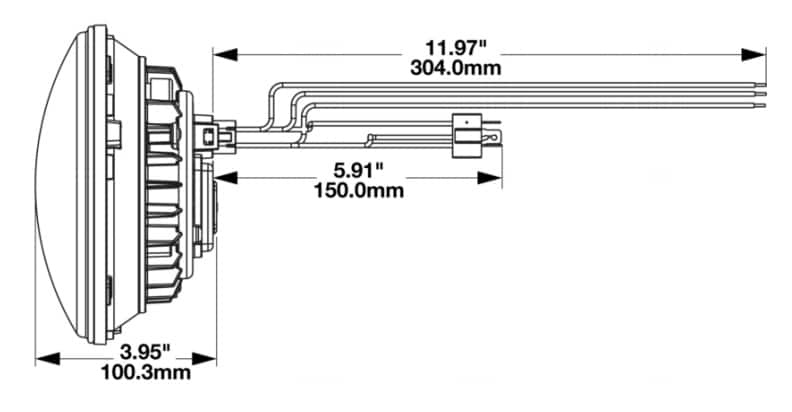

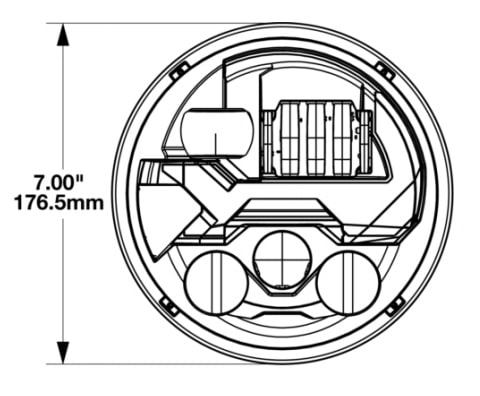

Dimensions:
Width: 7.0" (176.5 mm), Height: 7.0" (176.5 mm), Depth: 3.95" (100.3 mm), Dia: 7.0" (176.5 mm)
J.W. Speaker 8700 Evolution 3 LED Headlights Parts Enquiry ▲
12V RHT DOT/ECE LED High/Low Beam Headlight – Chrome – 2 Light Kit, 0558123
12V RHT DOT/ECE LED High/Low Beam Headlight – Chrome – Single RH Light, 0558161
12V RHT DOT/ECE LED High/Low Beam Headlight – Chrome – Single LH Light, 0558171
12V RHT DOT/ECE LED High/Low Beam Heated Headlight – Chrome – 2 Light Kit, 0558133
12V RHT DOT/ECE LED High/Low Beam Heated Headlight – Chrome – Single RH Light, 0558201
12V RHT DOT/ECE LED High/Low Beam Heated Headlight – Chrome – Single LH Light, 0558211
12V LHT ECE LED High/Low Beam Headlight – Chrome – 2 Light Kit, 0558243
12V LHT ECE LED High/Low Beam Headlight – Chrome – Single RH Light, 0558261
12V LHT ECE LED High/Low Beam Headlight – Chrome – Single LH Light, 0558271
12V LHT ECE LED High/Low Beam Heated Headlight – Chrome – 2 Light Kit, 0558253
12V LHT ECE LED High/Low Beam Heated Headlight – Chrome – Single RH Light, 0558281
12V LHT ECE LED High/Low Beam Heated Headlight – Chrome – Single LH Light, 0558291
