Brand:
J.W. Speaker
Origin: USA
Click for:

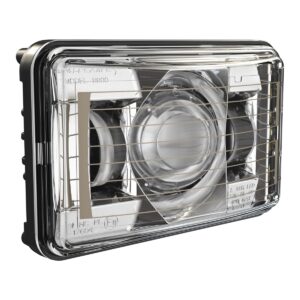

The 8800 Evolution Series 2 provides a high performance 4×6″ LED headlight, available with a SmartHeat® heated lens! This headlight is the industry’s first to meet proposed National Highway Transportation Safety Administration (NHTSA) guidelines for a 5-Star NCAP-compliant low beam headlight.
J.W. Speaker 8800 Evolution Series 2 Features & Benefits ▲
- Available with a SmartHeat Heating System
- Meets proposed National Highway Transportation Safety Administration
- Tough, die-cast housing, with added protection from salt spray
- Offering both heated and non-heated 4×6″ LED upgrades
J.W. Speaker 8800 Evolution Series 2 Specifications ▲
| Housing Material | Die-Cast Alumnium |
| Housing Color | Black |
| Bezel Color | Chrome or Black |
| Mounting Type | Low-Profile Panel Mount |
| Minimum Operating Temperature | -40 °C / -40 °F |
| Maximum Operating Temperature | 65 °C / 149 °F |
| Mating Connector | LH Terminal - AMP (#172795-1); RH, Terminal - AMP (#172796-1) |
| Input Voltage | 12-24V DC |
| Operating Voltage | 9-32V DC |
| Current Draw | Heated: 3.30A @ 12V DC, 1.67A @ 24V DC Non-Heated: 2.10A @ 12V DC, 1.00A @ 24V DC |

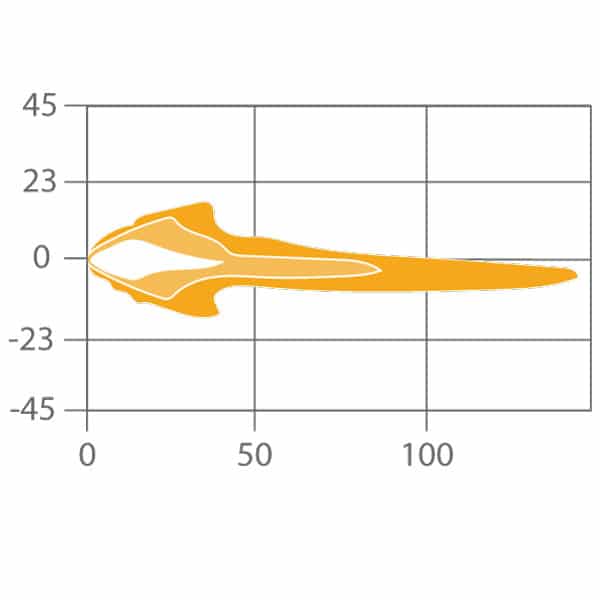

| Beam Patterns | High Beam or Low Beam |
| rLumens | 2,250 Lumens (High Beam); 2,830 Lumens (Low Beam) |
| eLumens | 898 Lumens (High Beam); 782 Lumens (Low Beam) |
| Connector or Wiring | H4 Connector - AMP (#172615-2) |
| Nominal LED Color Temperature | 5000K |
| Retrofits | 1A1 and 2A1 (4” 1 6”) sealed beams |
| Standards Compliance | Buy America Standards, ECE Reg 112, Eco Friendly, FMVSS 108 s10.1 (Table XVIII), (Table XIX), IEC IP69K |
| APS PN | JWS PN |
| 88002-DOT/ECE-CB-HB | 0551781 |
| 88002-DOT/ECE-BB-HB | 0552671 |
| 88002-DOT/ECE-CB-LB | 0551771 |
| 88002-DOT/ECE-BB-LB | 0552651 |
| 88002-ECE-CB-LB-LHT | 0552091 |
| 88002-ECE-BB-LB-LHT | 0552661 |
| 88002-DOT/ECE-CB-HB-NH | 0551381 |
| 88002-DOT/ECE-BB-HB-NH | 0552571 |
| 88002-DOT/ECE-CB-LB-RHT | 0551371 |
| 88002-DOT/ECE-BB-LB-RHT | 0552551 |
| 88002-ECE-CB-LB-LHT-NH | 0551391 |
| 88002-ECE-BB-LB-LHT-NH | 0552561 |
J.W. Speaker 8800 Evolution Series 2 Specification Flyer (PDF) ▲
Applications: Agriculture, automotive, construction, industrial, material handling, mining, trucks and buses

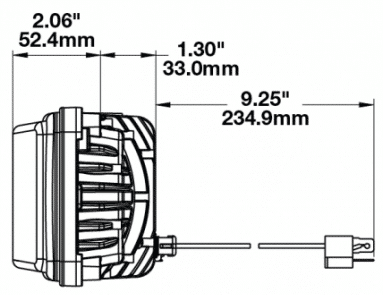

Dimensions:
Width: 6.59" (167.39 mm), Height: 4.21" (106.93 mm), Depth: 3.34" (84.83 mm)
J.W. Speaker 8800 Evolution Series 2 Parts Enquiry ▲
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED High Beam Heated Headlight with Chrome Bezel, 0551781
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED High Beam Heated Headlight with Black Bezel, 0552671
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED RHT Low Beam Heated Headlight with Chrome Bezel, 0551771
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED RHT Low Beam Heated Headlight with Black Bezel, 0552651
J.W. Speaker 8800 Evolution 2: 12-24V ECE LED LHT Low Beam Heated Headlight with Chrome Bezel, 0552091
J.W. Speaker 8800 Evolution 2: 12-24V ECE LED LHT Low Beam Heated Headlight with Black Bezel, 0552661
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED High Beam Headlight with Chrome Bezel, 0551381
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED High Beam Headlight with Black Bezel, 0552571
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED RHT Low Beam Headlight with Chrome Bezel, 0551371
J.W. Speaker 8800 Evolution 2: 12-24V DOT/ECE LED RHT Low Beam Headlight with Black Bezel, 0552551
J.W. Speaker 8800 Evolution 2: 12-24V ECE LED LHT Low Beam Headlight with Chrome Bezel, 0551391
J.W. Speaker 8800 Evolution 2: 12-24V ECE LED LHT Low Beam Headlight with Black Bezel, 0552561
