Brand:
J.W. Speaker
Origin: USA
Click for:

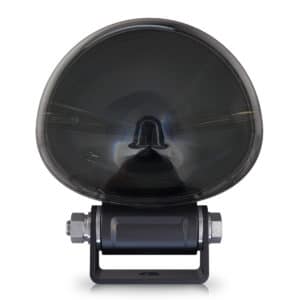

The Model 777 offers a unique “keep out zone” safety light in a sleek and practical design. This LED safety light is designed with various types of safety applications in mind, including forklifts, work trucks, construction vehicles, farm equipment, and more. They are available in three different color configurations (Red, Green, and Blue) to create the best solution for each industry and application.
J.W. Speaker Model 777 GEN 2 Features & Benefits ▲
- High-powered LED safety light creates keep-away zones
- Compact and easy to install using a pedestal mount
- Precise beam patterns in red, blue, and green
- Sleek design; weather-proof; excellent thermal management
- Voltage ranges: 10-80V, suitable for various types of applications
- GEN 2 is more compact than our Model 777 GEN 1 Arc Warning Light
- GEN 2 Arc Warning light has a more compact beam pattern and is 50% brighter than our first generation
J.W. Speaker Model 777 GEN 2 Specifications ▲
| Input Voltage | 12-72V DC |
| Operating Voltage | 10-80V DC |
| Transient Spike Protection | 330V Peak @ 1 HZ-100 Pulses |
| Effective Lumens | 100 eLumens |
| Candela Output | 3200 |
| Beam Patterns | Warning - Keep Out Zone |
| Colors Avaliable | Green, Blue or Red |
| Mounting Type | Pedestal (x1) M10-30 |
| Minimum Operating Temperature | -40 °C / -40 °F |
| Maximum Operating Temperature | 65 °C / 149 °F |
| Connector or Wiring | 19.5" Bare Leads (tinned) |
| Housing Material | Die-Cast Aluminum |
| Housing Color | Black |
| Bezel Color | Black |
| Outer Lens Color | Clear |
| Outer Lens Material | Polycarbonate |
| Current Draw | 1.08A @ 12V DC (1403601) 1.09A @ 12V DC (1403611) 1.06A @ 12V DC (1403621) 0.51A @ 24V DC 0.34A @ 36V DC 0.26A @ 48V DC 0.21A @ 60V DC 0.18A @ 72V DC |
| Standards Compliance | ECE Reg 10, IEC IP67, IEC IP69K, SAE J1113-13, SAE J1455 |
J.W. Speaker Model 777 GEN 2 Specifications Flyer (PDF) ▲
Applications: Industrial and material handling
Dimensions:
Width: 4.34" (110.30 mm), Height: 5" (127.10 mm), Depth: 76.60" (3.02 mm)
J.W. Speaker Model 777 GEN 2 – LED Forklift Warning Light & ARC Safety Light Parts Enquiry ▲
J.W. Speaker Model 777 GEN 2 – LED Forklift Warning Light and ARC Safety Light: 12-72V DC, Red LED, 1403601
J.W. Speaker Model 777 GEN 2 – LED Forklift Warning Light and ARC Safety Light: 12-72V DC, Blue LED, 1403611
J.W. Speaker Model 777 GEN 2 – LED Forklift Warning Light and ARC Safety Light: 12-72V DC, Green LED, 1403621
