Brand:
J.W. Speaker
Origin: USA
Click for:
Operating equipment and machinery in dark environments require workers to rely on consistent and quality lighting to remain safe and productive while working. The operating conditions in agriculture, industrial, construction, and mining environments represent a unique set of challenges for workers, as changes in weather conditions and daily use are a daily occurrence.

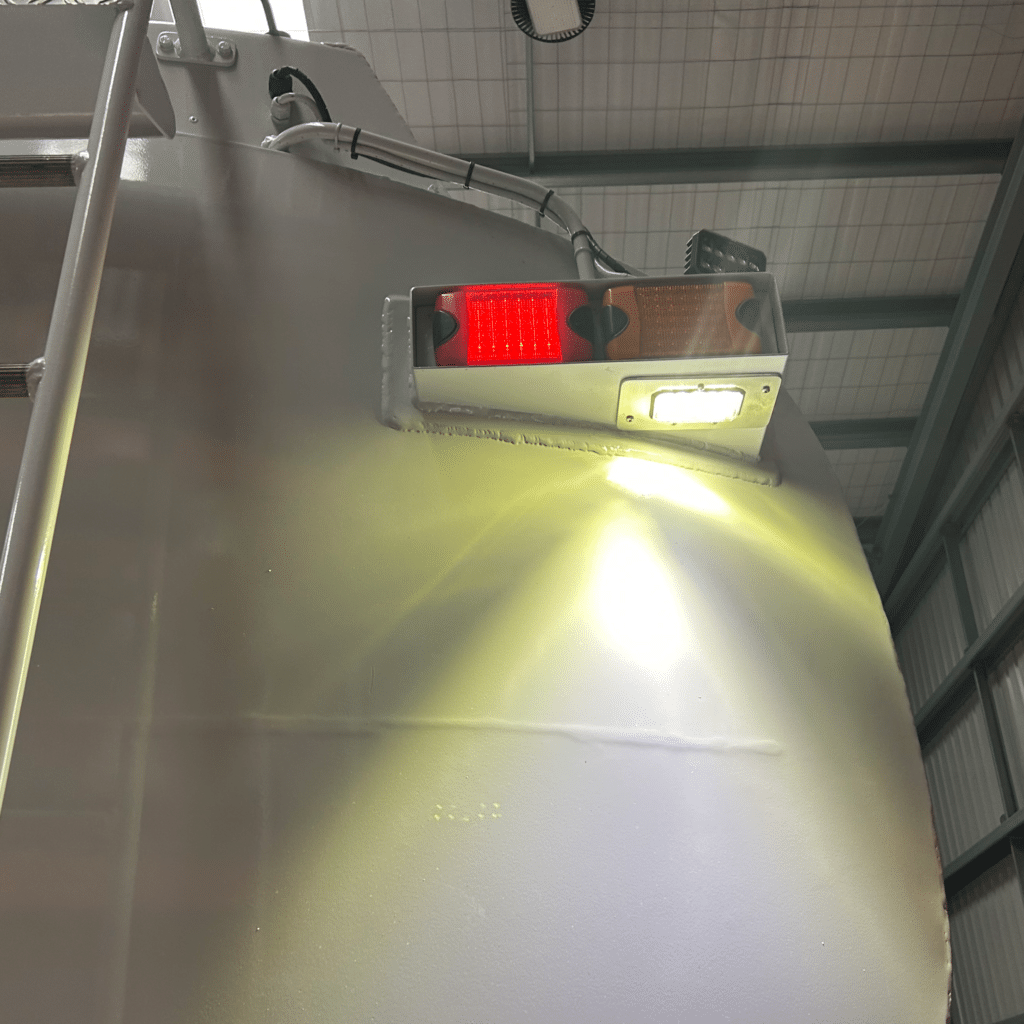

The J.W. Speaker Model 792 LED Compact Work Lights 1603921, 1603951, 1603931 and 1603971 are engineered for the most demanding conditions. Manufactured to endure rigorous requirements for stability and resistance to the elements while also producing powerful flood/trap light patterns to illuminate the darkest worksites keeps production moving and workers safe. This light is available in pedestal or panel mount options to fit a large variety of applications.
J.W. Speaker Model 792 Compact Work Light Features & Benefits ▲
- Available in pedestal or panel mount options
- Powerful 2,000 effective lumens of light output in a flood/trap pattern
- Durable polycarbonate lens is impact resistant
- Aluminum black housing is durable and corrosion-resistant
- Low-profile Dimensions: Height: 3in, Width: 4in, Depth: 1.7in
- Input Voltage: 12/24V or 36/90V
- Complies with ECE Reg. 10
- Rated IP67 & IP69K
J.W. Speaker, known for manufacturing high-performance LED technology, developed these compact work lights to be used in the harshest working conditions with 2,000 effective lumens of powerful light output, providing crucial illumination for the safety, productivity, and comfort of workers. These low-profile LED work lights provide bright white light for agricultural, construction, and industrial applications that require reliable, high-quality LED lighting to withstand vibrations, impacts, and deliver consistent performance over time under harsh environments.
J.W. Speaker Model 792 Compact Work Light Specifications ▲
| Type | LED Work Light |
| eLumens | 2,000 Lu |
| rLumens | 3,630 Lu |
| Beam Pattern | Flood |
| Current Draw | 2.2A @ 12V DC 1.0A @ 24V DC |
| Voltage | 12-24V DC |
| IP Rating | IP67, IP69K |
| Electrical Connection | JAE Connector MX19A003S51 harness included with flying leads |
| ECM | ECE Reg. 10 (Radiated Emissions only) |
| Colour Temp | 5050K |
| Operating Temperature | -40°C to +65°C |
| Housing | Aluminium |
| Lens | Polycarbonate |
| Lens Colour | Clear |
| Mounting | Pedestal mount, Panel mount |
| Weight | 0.4 (lbs) / 0.18 (kgs) |
| Dimensions (DxWxH) | 1.71x3.89x3.0" (43.4x98.8x76.1mm) |
| APS PN | JWS PN |
| A792 | 1603921 |
J.W. Speaker Model 792 Compact Work Light Specification Flyer (PDF) ▲

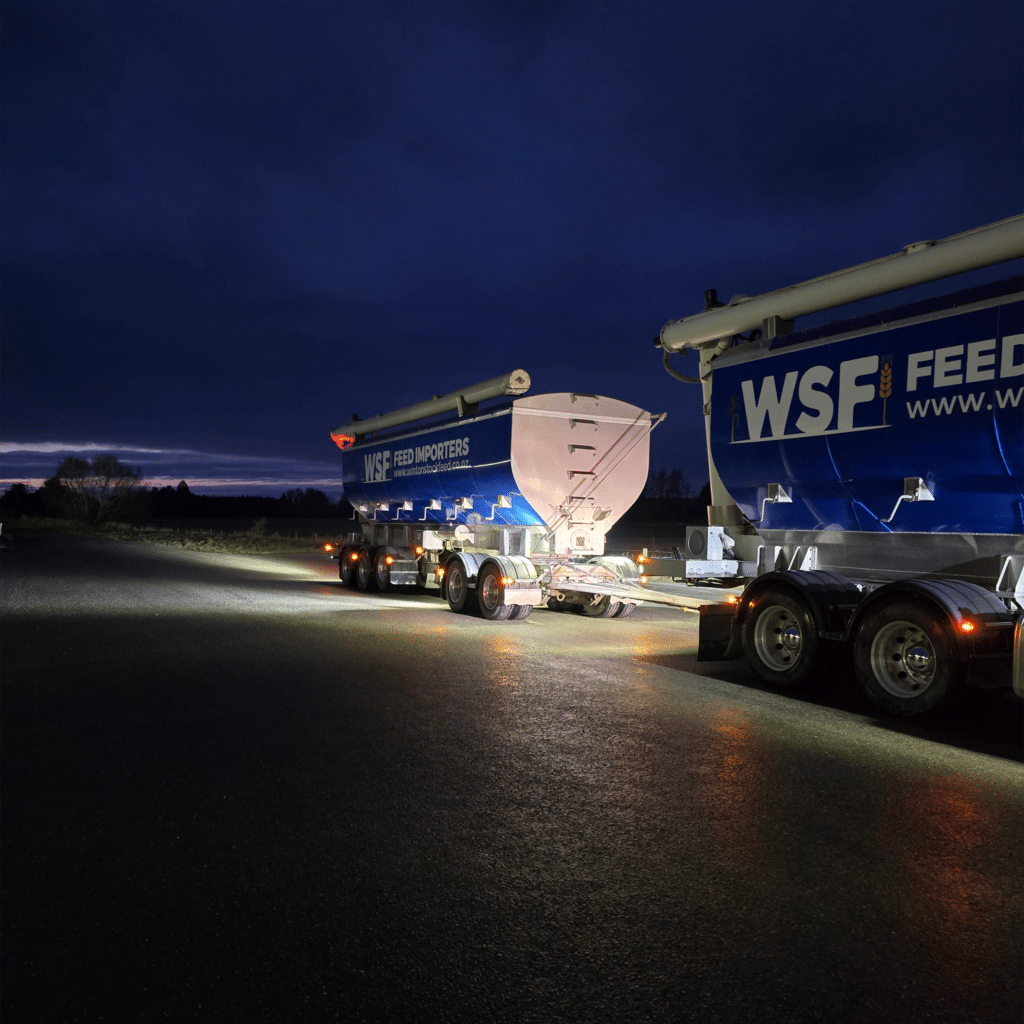

Applications: Mining, construction, material handling, utility vehicles, specialty vehicles, agriculture, automotive and off-road 4x4
