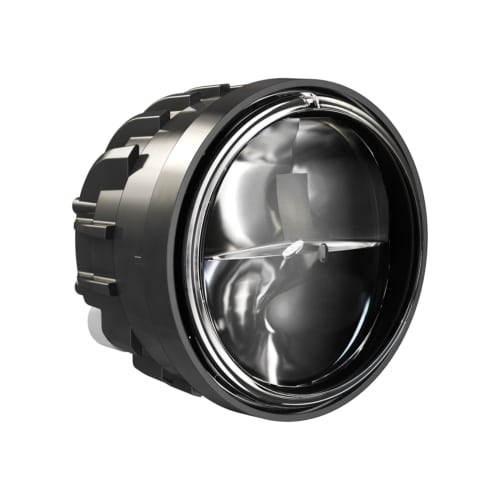

J.W. Speaker Model 97 Bi-LED Headlight

J.W. Speaker Model 97 Bi-LED Headlight

Brand: J.W. Speaker
Origin: USA


Click for:

The JW Speaker model 97 Bi-LED headlights are designed as upgrades from stock bulb-based 100mm lights commonly found on a variety of applications including buses, trucks, and motor coaches.
Each Model 97 features a heavy-duty aluminum housing, UV-resistant lens, and the latest in solid-state optics. They are designed to be drop-in High & Low beam LED headlight replacements for stock 100mm lights.

J.W. Speaker Model 97 Bi-LED Headlight Features & Benefits

  • Built-in high and low beam headlight with front position
  • Easy installation; versatile to fit in a variety of heavy-duty applications
  • Durable and Reliable; Heavy-duty aluminum housing and UV-resistant polycarbonate lens
  • Legal on-road throughout North America and Europe; DOT & ECE compliant

J.W. Speaker Model 97 Bi-LED Headlight Specifications

Input Voltage12-24V DC
Operating Voltage10-32V DC
Transient Spike Protection150V Peak @ 1 HZ-100 Pulses
Current DrawHigh Beam: 1.8A @ 12V DC; 1.0A @ 24V DC
Low Beam: 1.5A @ 12V DC; 0.8A @ 24V DC
Front Position: 0.1A @ 12V DC; 0.06A @ 24V DC
Raw Lumen Output1,800 (High Beam); 1,600 (Low Beam)
Effective Lumen Output497 (High Beam); 321 (Low Beam)
Candela Output41,800 (High Beam); 14,600 (Low Beam)
Nominal LED Color Temperature5000 K
Operating Temperature-40 °C / -40 °F - 65 °C / 149 °F
Outer Lens MaterialPolycarbonate
Outer Lens ColorClear
Housing MaterialAluminum
Housing & Bezel ColorBlack
Mounting Type3-Point Mount for 3mm Mounting Frame, Single Pedestal Mount Kit
Connector or WiringDeutsch DT04-4P
Mating ConnectorDeutsch DT06-4S
Height & Width100.00 mm / 3.94 in
Depth85.00 mm / 3.35 in
ShapeRound
Product & Shipping Weight1.85 lbs / 0.84 kgs
Standards ComplianceBuy America Standards, Eco Friendly, IEC IP67, Tested to ECE Reg. 10 (Radiated Emissions only), ECE Reg 10, IEC IP69K
0554911 only: ECE Reg 112, ECE Reg 7
0554921 only: ECE Reg 113, ECE Reg 50, FMVSS 108 s10.1
Beam Pattern(s)Reg 112: Forward Lighting - High Beam (ECE), Forward Lighting - Low Beam (ECE Left Hand)
Reg 113: Forward Lighting - High Beam (DOT/ECE), Forward Lighting - Low Beam (DOT/ECE)
Signalization - Front Position

J.W. Speaker Model 97 Bi-LED Headlight ​Specification Flyer (PDF)


Applications: Agriculture, Construction, Industrial, Material Handling, Mining, Off-Road 4x4, Railroad, Specialty Vehicles, Truck & Bus
