J.W. Speaker 785 Case OEM Skid Steer LED Work Lamp

J.W. Speaker 785 Case OEM Skid Steer LED Work Lamp

Brand: J.W. Speaker
Origin: USA


Click for:

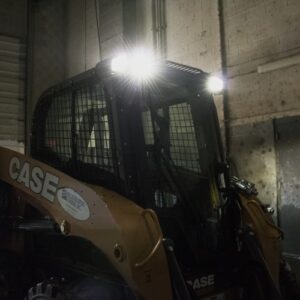

The Model 785 work light 0554211 and 0554213 offers dark work-sites better visibility while using less power. This fixture is designed for CASE skid steers and more and to retrofit to the lighting shroud/hole on the CASE skid steers.

The Model 785 work light fits Case Skid Steers, for 12V DC systems:

  • SR (wheel radial lift)
  • SV (wheel vertical lift)
  • TR (track radial lift)
  • TV (track vertical lift)

J.W. Speaker 785 Case OEM Skid Steer LED Work Lamp ​Features & Benefits

  • Better visibility – Brighter, whiter output using less power
  • Focused light – Lens optics place light where it’s needed
  • Reduced fatigue from daylight color and decreased eyestrain
  • Rugged LEDs withstand vibration and abuse
  • Higher productivity – No more downtime due to burned-out bulbs!
  • Increased safety at dark worksites

J.W. Speaker 785 Case OEM Skid Steer LED Work Lamp Specifications

Input Voltage12V DC
Operating voltage9-16V DC
Current Draw1.2A @ 12V DC
rLumens1,242Lu
eLumens460Lu
Beam PatternsTrapezoid
Minumum Operating Temperature-40 °C / -40 °F
Maximum Operating Temperature65 °C / 149 °F
Housing MaterialNylon 66
Outer Lens MaterialPolycarbonate
Outer Lens ColorClear
Weight0.33 lbs / 0.15 kgs
Compliance StandardsBuy America Standards
Eco Friendly
IEC IP67
IEC IP69K
APS PN JWS PN
785-T 0554211
785-T-KIT 0554213



J.W. Speaker 785 Case OEM Skid Steer LED Work Lamp ​Specification Flyer (PDF)


Applications: Industrial, CASE skid steers


Dimensions:
Width: 4.88" (124.00 mm), Height: 3.23" (82.00 mm), Depth: 2.44" (62.00 mm)
