J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights SPE-0554563

J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights SPE-0554563

Brand: J.W. Speaker
Origin: USA


Currently available in a DOT Certified model only. These are not suitable where ECE Regulations are required.

Click for:

J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights SPE-0554563 is a high performance 7” round Jeep LED headlight offering dual-burn high & low beam optics. This technology combines your high and low beam when turning on your high beam, providing the driver with both widespread visibility along with a powerful punch of light down the road.

J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights Features & Benefits

  • Dual Burn™ high & beam optics for extra punch of light
  • No anti-flicker harness required
  • Plug & play installation
  • DOT & Transport Canada compliant for on-road use
  • Black bezel or hydro dipped bezel with carbon fiber pattern
  • ComfortLite™ high beams

J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights Videos

J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights Specifications

Input Voltage12V DC
Operating Voltage9-16V DC
Transient Spike Protection150V Peak @ 1 HZ-100 Pulses
Beam PatternForward Lighting - High Beam (DOT)
Forward Lighting - Low Beam (DOT)
Current Draw4.20A @ 12V DC (High Beam)
2.00A @ 12V DC (Low Beam)
rLumens3,200 (High Beam)
1,770 (Low Beam)
eLumens1,260 (High Beam)
750 (Low Beam)
Candela71,500 (High Beam)
35,003 (Low Beam)
Standards ComplianceBuy America Standards, Eco Friendly, FMVSS 108 Table XIX, FMVSS 108 Table XVIII, IEC IP67

TypeLED Work Light
eLumens2,000 Lu
rLumens3,630 Lu
Beam PatternFlood
Current Draw2.2A @ 12V DC
1.0A @ 24V DC
Voltage12-24V DC
IP RatingIP67, IP69K
Electrical ConnectionJAE Connector MX19A003S51 harness included with flying leads
ECM ECE Reg. 10 (Radiated Emissions only)
Colour Temp5050K
Operating Temperature-40°C to +65°C
HousingAluminium
LensPolycarbonate
Lens ColourClear
MountingPedestal mount, Panel mount
Weight0.4 (lbs) / 0.18 (kgs)
Dimensions (DxWxH)1.71x3.89x3.0" (43.4x98.8x76.1mm)

APS PN JWS PN
A8700 Evolution J2 SPE-0554563



J.W. Speaker 8700 Evolution J2 Series – LED Jeep Headlights Specifications Flyer (PDF)


Applications: 2007+ Jeep Wranglers and Jeep Wrangler Unlimited

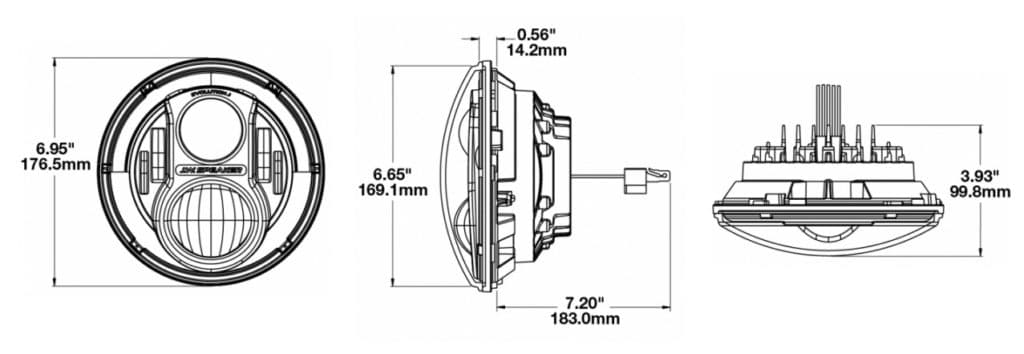

Dimensions:
Width: 6.95" (176.53 mm), Height: 6.95" (176.53 mm), Depth: 3.93" (99.83 mm)
