J.W. Speaker 8770 LED Locomotive Headlight SPE-0554601

J.W. Speaker 8770 LED Locomotive Headlight SPE-0554601

Brand: J.W. Speaker
Origin: USA


Click for:

NOW AVAILABLE
LED Headlight 24-110V LED Locomotive Headlight with Spot Beam Pattern & Heated Lens.
Read more below

7″ Round Locomotive Headlamps
J.W. Speaker 8770 LED Locomotive Headlight SPE-0554601 offers the most powerful FRA-approved replacement solution for 7″ locomotive headlights (PAR56). Designed for railroad locomotives using only high and low functionality (determined through a control line), the Model 8770 GEN3 can also be used as a ditch light application.

Heated Lens version
Additional features include heavy-duty construction, solid-state electronics and our unique SmartHeat® technology that effectively melts snow and prevents icing. LEDs are long-lasting, providing years of maintenance-free operation and lower life-cycle costs when compared to halogen lamps.

J.W. Speaker 8770 LED Locomotive Headlight Features & Benefits

  • 230,000 minimum Candela output
  • Meets all Federal Railroad Administration (FRA) requirements
  • Retrofits 2D1 “PAR56″ or 7” Round Headlights
  • Long-lasting LEDs withstand shock & vibration to provide years of maintenance-free operation
  • Heated Lens version has SmartHeat® technology melts ice and snow to keep locomotive headlights unobstructed

J.W. Speaker 8770 LED Locomotive Headlight Specifications

TypeLED
rLumens2,200 rLumens (Model 8770)
2,200 rLumens Model 8770 with Heated Lens)
eLumens2,041 eLumens (Model 8770)
1,800 eLumens (Model 8770 with Heated Lens)
Candela260,000 (Model 8770)
230,000 (Model 8770 with Heated Lens)
Colour Temperature5000K
Beam PatternForward Lighting - Spot
Voltage24-110V DC
Current DrawModel 8770
2.10A @ 24V DC (High Output), 1.00A @ 24V DC (Low Output)
0.75A @ 75V DC (High Output), 0.45A @ 75V DC (Low Output)
0.55A @ 110V DC (High Output), 0.30A @ 110V DC (Low Output)

Model 8770 with Heated Lens
3.20A @ 24V DC (High Output), 2.60A @ 24V DC (Low Output)
1.20A @ 75V DC (High Output), 0.85A @ 75V DC (Low Output)
0.85A @ 110V DC (High Output), 0.75A @ 110V DC (Low Output)
Transient Spike Protection330V Peak @ 1 HZ-100 Pulses
Temperate Range-40 °C to 65 °C
IP RatingIP67 (Model 8770)
IP66 (Model 8770 with Heated Lens)
CertificationsBuy America Standards, Eco Friendly
FRA Title 49 CFR 229.125 (a) FRA Title 49 CFR 229.125 (b)
FRA Title 49 CFR 229.125 (d) (2) IEC IP67
Tested to ECE Reg. 10 (Radiated Emissions only)
LensClear Polycarbonate
HousingGray Aluminum
BezelBlack
MountingPanel
Retrofits2D1 "PAR56" or 7" Round Headlights

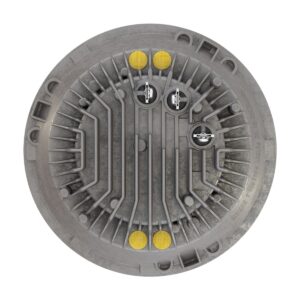

Connector / WiringStandard sealed beam style screw terminals
Weight2.60 lbs / 1.18 kgs
Dimensions (DxWxH)
Diameter
4.0x6.64x6.64” (102.5x168.9x168.9mm)
6.94" (176.5mm)
APS PN JWS PN
8770 GEN 3 SPE-0554601



J.W. Speaker 8770 LED Locomotive Headlight Specifications Flyer (PDF)


Applications: Railway, Industrial


Dimensions:
Width: 6.64" (168.9 mm), Height: 6.64" (168.9 mm), Depth: 4.00" (102.5 mm), Dia: 6.94" (176.5 mm)
