Brand:
Vignal Lighting Group
Origin: USA
Click for:
Enhance Visibility and Safety with Vignal’s LED Beacons
Job site safety and efficiency are paramount, the importance of reliable signaling solutions cannot be overstated. Vignal’s premium line of LED beacons, including the Vega LED, Galaxy LED, and Pegasus models, offers top-tier performance in the most demanding applications. These beacons are essential for enhancing visibility and safety across diverse environments, from on-road and construction sites to agriculture and mining.
Trusted by numerous OEMs worldwide, Vignal’s LED beacons are engineered for reliability, durability, and ease of maintenance, making them a preferred choice for those who prioritize safety and efficiency. Explore our range of products to find the perfect beacon solution for your needs.
Applications
- On-Road and Construction Sites: Enhancing safety by clearly indicating dangerous areas or ongoing operations.
- Mining and Agriculture: Providing unmistakable signals for vehicles and personnel, ensuring they are easily noticed in critical situations.
- Municipal / Utility : Aiding in traffic management and vehicle identification, especially in low-visibility conditions.
The Pegasus LED beacon offers multiple flash patterns including flash, double flash, and rotating. All part numbers for this beacon are ECE-R65 approved, with the flash versions also meeting SAE Class 2 standards. With its compact design, the Pegasus is versatile and durable making it suitable for various applications where space is limited and a powerful warning light is needed.
PEGASUS LED Beacon Features & Benefits ▲
- Low-profile compact beacon
- 10-30V
- High-efficiency only 9W
- Efficient LED source
- 3 flash patterns to choose from (flash, double flash, Rotating)
- 3 bolt permanent mount / Din pole mount / Vacuum mag-mount with cigarette plug
- R65 / R10 / R65 / SAE Class 2
PEGASUS LED Beacon Specifications▲
Product Type | Complete lamp |
Voltage | 10-30V DC |
Consumption | 9W |
Colour | D14500 / D14501 / D14502: Amber / Orange, D14756 / D14757 / D14758: Crystal lens, Amber LED |
Connector | D14500 / D14756: ISO DIN 14620B D14501 / D14757: ISO 4148/4165 |
Mounting | D14500 / D14756: 3 screws 3.5 x 15.9 mm D14501 / D14757: Flexible DIN pole autoblok D14502 / D14758: Magnetic 1 suction pad with cigarette lighter |
Lens Material | Polycarbonate |
Housing Material | D14500 / D14502 / D14756 / D14758: Compound thermoplastic |

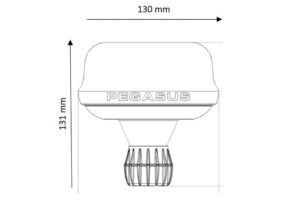

Diameter | D14500: 146 mm D14501 / D14757: 130 mm D14502 / D14756 / D14758: 143 mm |
Height | D14500 / D14502 / D14756 / D14758: 74 mm D14501 / D14757: 131 mm |
Weight | D14500 / D14756: 0,36 Kg D14501 / D14757: 0,38 Kg D14502 / D14758: 0,81 Kg |
IP Protection | D14756 / D14757 / D14758: IP54 |
Flash Patterns | Rotating / Flash / Double Flash Multifunctions |
Flash per Minute | 125 |
Operation Temperatures | -30°C to +50°C |
EMC | ECE R10 |
ECE | ECE R65 |
VIGNAL PNs | Vehicle / Machinery OEM PNs | |
D14500 / 21.50.L35.5V8 / 21.50.L35.508 | ||
D14501 / 21.50.L75.5V8 / 21.50.L75.508 | ||
D14502 / 21.50.LV5.5V8 / 21.50.LV5.508 | ||
D14756 / 21.50.L35.51V | ||
D14757 / 21.50.L75.51V | ||
D14758 / 21.50.LV5.51V | ||
D14747 / 21.50.201.MUV | ||
D14777 / 21.50.811.ROV | ||
D14503 / 21.50.811.MUV | ||
D14511 / 21.76.282.VLG | ||
D14512 / 21.76.283.VLG | ||
D14513 / 21.91.000.VLG / BR 13109.50 | Kubota Tractor: W20TS00777, Merlo Tractor: 115856 | |
D14514 / 21.92.000.VLG / BR 13109.70 | ||
D14515 / 21.97.005.VLG | Argos Tractors: 6504490M91 |
PEGASUS LED Beacon Specification Flyer (PDF)▲
Applications: On-Road and Construction Sites, Mining and Agriculture, and Municipal / Utility
PEGASUS LED Beacon Parts Enquiry ▲
PEGASUS amber multi-pattern flash/double flash/rotator 3 bolt permanent mount 10-30V, D14500 / 21.50.L35.5V8 / 21.50.L35.508

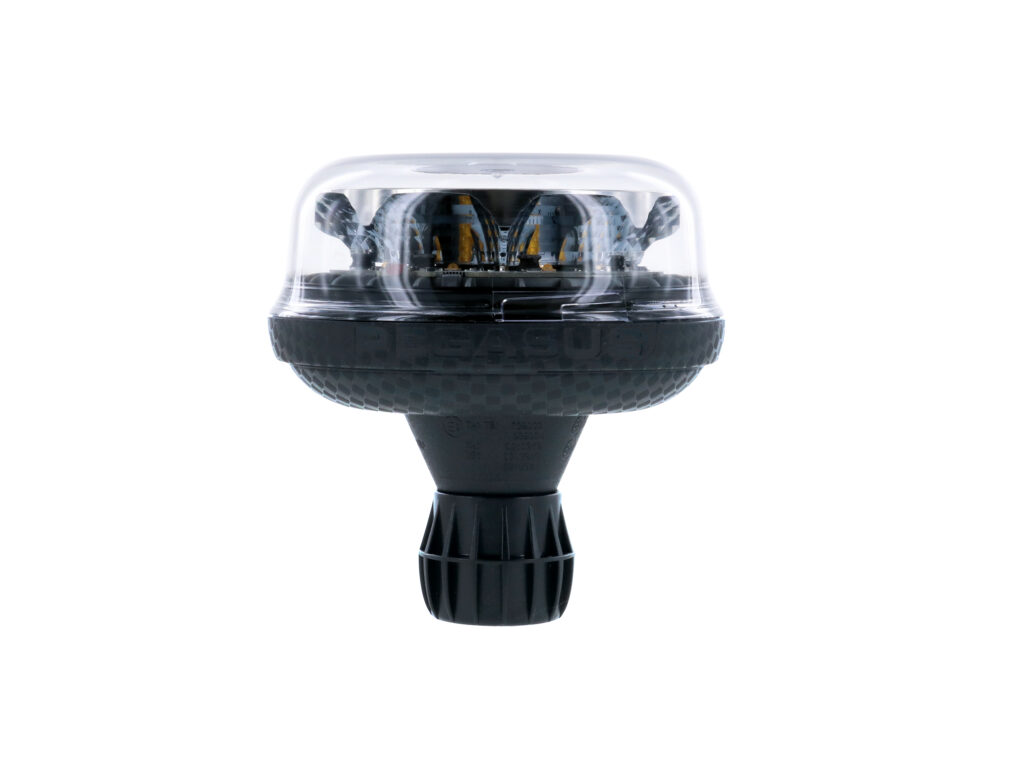

PEGASUS amber multi-pattern flash/double flash/rotator pipe mount 10-30V, D14501 / 21.50.L75.5V8 / 21.50.L75.508

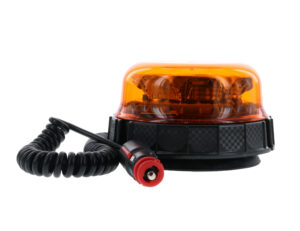

PEGASUS amber multi-pattern flash/double flash/rotator vacuum mount 10-30V, D14502 / 21.50.LV5.5V8 / 21.50.LV5.508
PEGASUS clear multi-pattern flash/double flash/rotator 3 bolt permanent 10-30V, D14756 / 21.50.L35.51V
PEGASUS clear muti-pattern flash/double flash/rotator pipe mount 10-30V, D14757 / 21.50.L75.51V
PEGASUS clear multi-pattern flash/double flash/rotator vacuum mount 10-30V, D14758 / 21.50.LV5.51V
Crystal lens for PEGASUS beacon, D14747 / 21.50.201.MUV
Amber lens for PEGASUS LED beacon, D14777 / 21.50.811.ROV
Amber lens for PEGASUS LED multifunction beacon, D14503 / 21.50.811.MUV
Flast gasket, D14511 / 21.76.282.VLG
Tilted gasket, D14512 / 21.76.283.VLG
Socket to be screwed, ISO 4148/4165, D14513 / 21.91.000.VLG / BR 13109.50
Socket with central clamp, ISO 4148/4165, D14514 / 21.92.000.VLG / BR 13109.70
360° rotating socket, ISO 4148/4165, D14515 / 21.97.005.VLG
