PreView Sentry 79GHz Front & Rear Detection Radar Solution

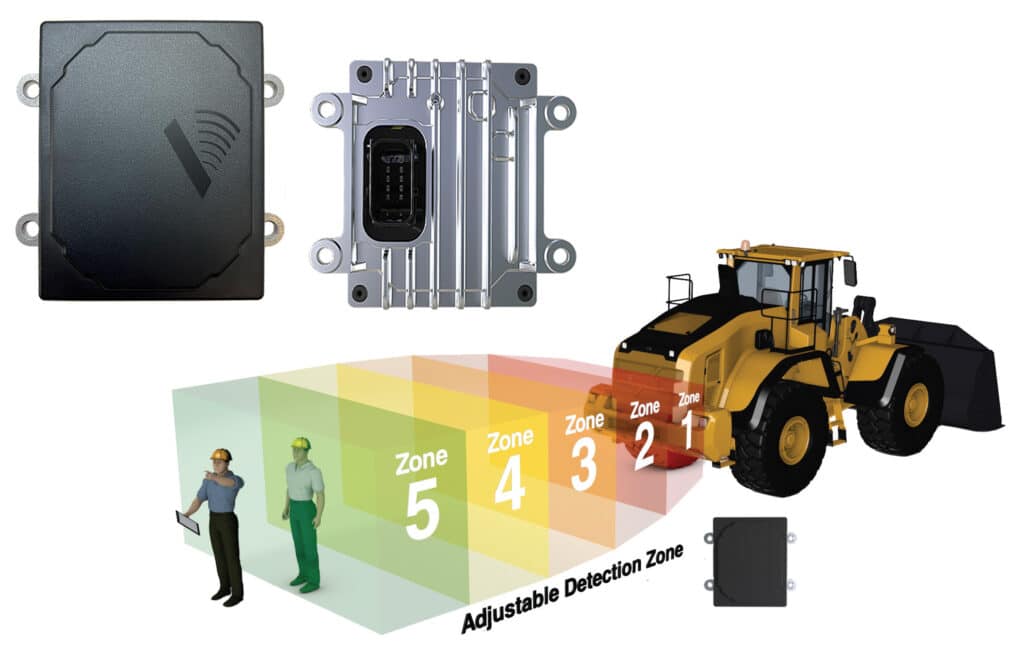

Sensata’s PreView Sentry®79 is an advanced 79 GHz front and rear detection radar sensor designed to enhance driver awareness and minimise the risk of blind spot related accidents. The sensor has a fully configurable detection zone, with the ability to detect objects at ranges up to 40 meters (131 feet). The width of the detection zone is adjustable to fit almost any vehicle type to keep operators and job sites safer. With its high-precision radar technology, the PreView Sentry®79 provides drivers with real-time, reliable information about objects in their blind spots, significantly reducing the potential for collisions during take-off and backing manoeuvres. It is the industry’s most flexible, accurate, and powerful active blind spot monitoring solution available.
The expansion of Sensata’s PreView® Radar product line is the result of over two decades of experience working with drivers, fleets, body builders, and OEMs to understand and deliver on requirements and preferences for radar-based collision mitigation solutions.
PreView Sentry®79 – 79GHz Radar System Features & Benefits ▲
- 79GHz FMCW (Frequency-Modulated Continuous Wave) radar
- Programmable range and width
- Detects, tracks, and reports the location of up to 64 people and objects simultaneously
- Detect objects from the face of the radar up to 50 meters (160 feet)
- UN Regulation No. 159 Moving Off Information System (MOIS) Compliant
- Environmentally hardened and robust (IP6K9K)
PreView Sentry 79GHz System Integration
PreView Sentry®79 – 79GHz Radar System Specifications ▲
| Frequency Band | 77-81 GHz Bandwidth, FMCW Waveform |
| Communication Interface | 2x CAN 2.0b. J1939 250/500 Kbits/sec. (1 Mbps/sec. option) |
| Range | Configurable from 0.5-40m |
| Range Resolution | 0.2 m |
| Range Accuracy | ±0.2 m |
| Vertical Field of View | ±10 degrees |
| Horizontal Field of View | ±75 degrees |
| Max Doppler Velocity | ±14.3 m/s |
| Doppler Resolution | 0.5 m/s |
| Doppler Accuracy | ±0.2 m/s |
| Number of Raw Targets | Up to 64 |
| Number of Target Tracks | Up to 64 |
| Update Rate | 50 ms |
| Input Power | 9-33V DC up to 600 mA max |
| Auxiliary Input/Auxilary Output | 9-33V DC / 9-33V DC - Switch to Ground |
| Operating/Storage Temperature | -40° to +85° C/-55° to +105° C |
| System Diagnostics | Built in Self Test (BIST), Sensor Blockage Warning |
| Enclosure Temperature | IP6K9K |

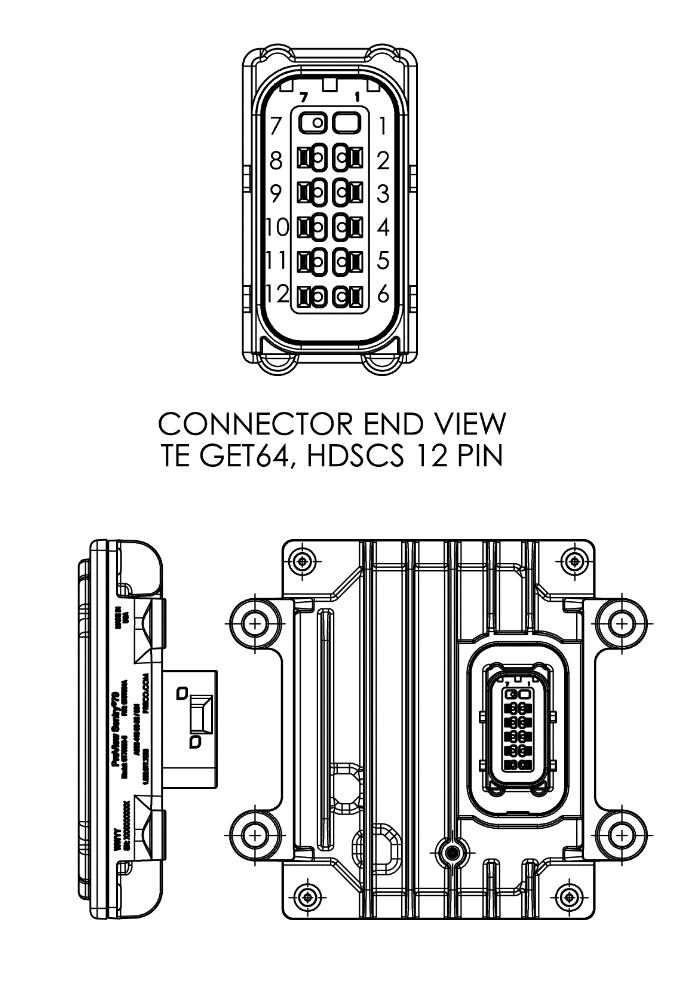

| Connector Type | TE GET64, HDSCS 12 pin |

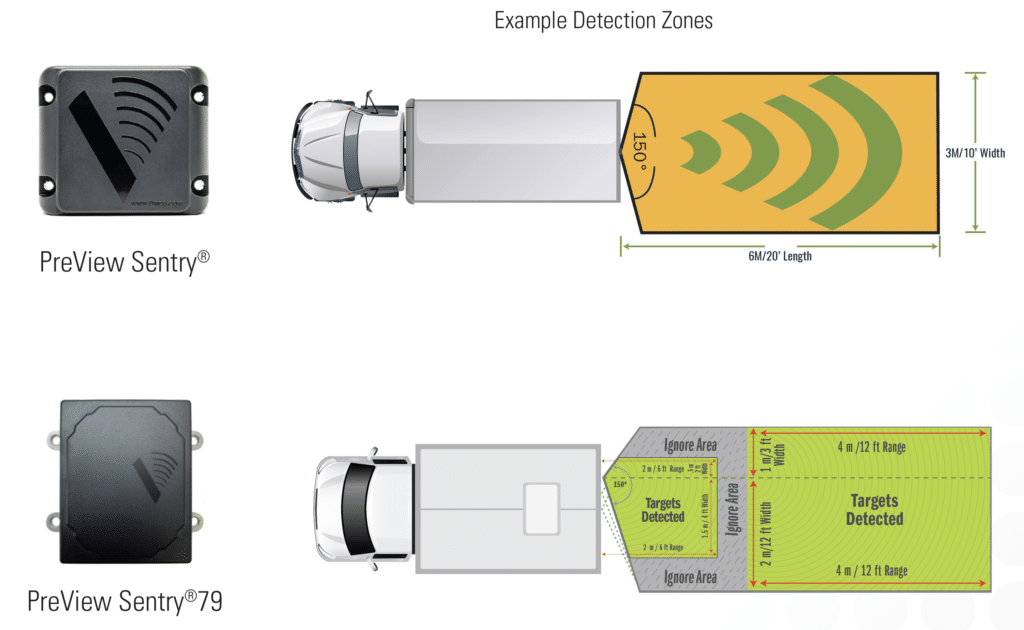

PreView Sentry 24GHz vs 79GHz Radar Technology
| Sensor Specifications | PreView Sentry® | PreView Sentry®79 |
|---|---|---|
| Transmitter | 24GHz Narrow Band | 79GHz FMCW Waveform |
| Protection Rating | IP69K | IP6K9K |
| Dimensions (WxHxD) | 4.90x4.06x1.8" | 4.65x4.23x1.54" |
| Weight | 1.15 lb | 0.5 lb |
| Configurable Range | 0 – 30m | 0.2 – 40m |
| Cycle Time | 80 ms | 50 ms |
| Target Detection Time | 240 ms | 150 ms |
| Mounting Location | Mounted centre of vehicle | Can be mounted off centre |
| Area of Interest | 5 Zones. Can be adjusted to cover desired area in front or rear of vehicle | 5 Zones. Can be adjusted asymmetrically to cover desired area in front or rear of vehicle. 2 configurable detection areas for equipment specific customisation |
| Frequency | 24.00 – 24.25 GHz | 78.6 – 79.4 GHz (800 MHz) |
| Operating Conditions | Operates in all weather conditions | Operates in all weather conditions |
PreView Sentry®79 – 79GHz Radar System Specifications Flyer (PDF) ▲
Applications: Heavy equipment, mining, civil, construction, road and utility equipment, forestry, agriculture
PreView Sentry®79 – 79GHz Radar System Parts Enquiry ▲
DST790455K-6A, Rear 4mx5’x5’ sensor
DST790466K-12A-BO, Front 4mx6’x6’ sensor, SD810BO (39” cable)
DST790455K-6A-32, Rear 4mx5’x5’ sensor, XPV4132 (32’ cable)
ST790455-6A, 4mx5’x5’ Sentry®79, DH79SA (12” Adapter)
ST790466-12A, 4mx6’x6’ Sentry®79, DH79SA (12” Adapter)
