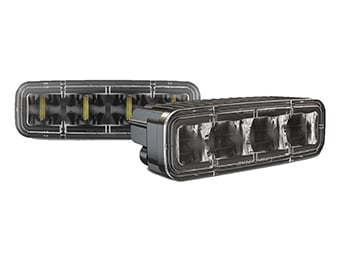

J.W. Speaker Model 793 LED Safety Light

J.W. Speaker Model 793 LED Safety Light

Brand: J.W. Speaker
Origin: USA


J.W. Speaker Model 793 LED Safety Light

Click for:

A whole new kind of “Keep Out” safety zone lighting

The Model 793 will revolutionise safety zone indicator lighting. It offers best-in-class light intensity and light quality; it’s the industry’s only UL Recognised safety zone light; and it comes in three colour configurations to create the best solution for each industry and application.

There are countless examples of where safety-zone lighting is needed and appropriate—they’re all too important to trust to an inferior light. With its superior intensity and light quality, the Model 793 can help employees go home to their families in the same condition they arrive to work; in non-industrial situations, public safety can increase. It’s a new safety solution that can really make a difference.

J.W. Speaker Model 793 LED Safety Light Features & Benefits

  • Helps identify dangerous areas to reduce injuries
  • Use on vehicles or around stationary objects
  • Rugged design allows nearly unlimited uses
  • Solid optics for solid performance
  • The only UL Recognised safety-zone light

J.W. Speaker Model 93 5-In-1 LED Headlights Video

J.W. Speaker Model 793 LED Safety Light Specifications

TypeLED "Keep Out" safety light
ColourRed, Amber, or Blue
Lumens @ 4' (1.22m) mounting heightRed (1120 Lu), Amber (1050 Lu), Blue (518 Lu)
Lumens @ 8' (2.44m) mounting heightRed (490 Lu), Amber (460 Lu), Blue (226 Lu)
Lumens @ 16' (4.88m) mounting heightRed (110 Lu), Amber (103 Lu), Blue (50 Lu)
Line length @ 4' (1.22m) mounting height10' (3.05m)
Line length @ 8' (2.44m) mounting height20' (6.1m)
Line length @ 16' (4.88m) mounting height40' (12.2m)
Line thickness @ 4' (1.22m) mounting height5" (127mm)
Line thickness @ 8' (2.44m) mounting height10" (254mm)
Line thickness @ 16' (4.88m) mounting height20" (508mm)
Voltage12-110V DC
IP RatingIP67, IP69K
Dimensions (DxWxH)2.48x5.90x1.89" (62.9x150x48mm)

Mounting Pattern
The brightness (Lux) and pattern size will vary based on mounting height. To help determine what height is best for your application, please refer to the chart below:

For many industries, UL isn’t just a nice to have, but a market-entry requirement.


J.W. Speaker Model 793 LED Safety Light Specification Flyer (PDF)


Applications: Waste trucks, forklifts, handling equipment and vehicles, utility vehicles

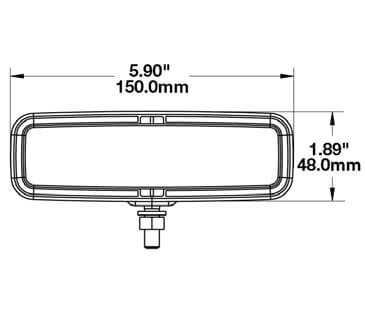

Dimensions:
Width: 5.90" (150 mm), Height: 1.89" (48 mm), Depth: 2.48" (62.9 mm)
