Brand:
J.W. Speaker
Origin: USA
DOT Version Discontinued Sept 2017, replaced by 8700 J2 Series
Click for:

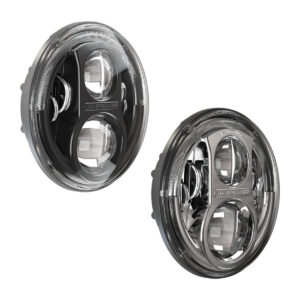

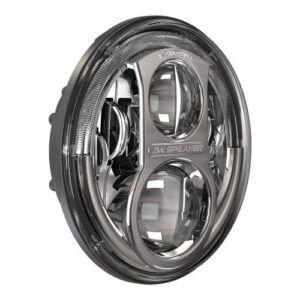

Find a high performance 7″ LED headlight designed specifically for Jeeps with the 8700 Evolution J LED headlight. It is the world’s first LED headlight with integrated anti-flicker technology that eliminates flickering caused by the Jeep electrical system and offers plug & play installation!
The Model 8700 Evolution J Series design offers a one-of-a-kind look, featuring a cool “half halo” light pipe and an exclusive “Evolution J” inner bezel. The ComfortLite™ high beam delivers additional illumination above the horizon, making it the ideal choice for Jeep owners seeking premium performance on-road and off-road LED lights.
J.W. Speaker 8700 Evolution J Series Features & Benefits ▲
- 1st Jeep-specific LED off-road headlight
- “Half halo” light pipe design
- No anti-flicker harness required
- Plug & play installation
- Surpasses DOT & Transport Canada requirements
- Supports daytime running light (DRL) functionality found on Canadian Jeeps.
- New ComfortLite™ high beams
- Intended for use on 2007+ Jeep Wranglers & Jeep Wrangler Unlimited
J.W. Speaker 8700 Evolution J Series Specifications ▲
| Input Voltage | 12VDC |
| Operating Voltage | 9-16V DC |
| Current Draw | 4.00A @ 12V DC (High Beam) 2.70A @ 12V DC (Low Beam) |
| rLumens | 2,610Lu (High Beam) 1,770Lu (Low Beam) |
| eLumens | 1,150Lu (High Beam) 750Lu (Low Beam) |
| Color Temperature | 5000K |
| Beam Patterns | High or Low Beam |
| Minimum Operating Temperature | -40 °C / -40 °F |
| Maximum Operating Temperature | 65 °C / 149 °F |
| Dimensions (H x W x D) | 176.53 x 176.53 x 99.82 mm (6.95 x 6.95 x 3.93 inch) |
| Standards Compliance | Eco Friendly, IEC IP67 |
J.W. Speaker 8700 Evolution J Series Specification Flyer (PDF) ▲
Applications: Jeep Wranglers, Jeep Wrangler Unlimited, Off-Road 4x4 and Specialty Vehicles
Dimensions:
Width: 6.95" (176.53 mm), Height: 6.95" (176.53 mm), Depth: 3.93" (99.82 mm)
J.W. Speaker 8700 Evolution J Series – LED Jeep Headlights Parts Enquiry ▲
Speaker 8700 J Series 12V DOT LED High & Low Beam Headlight with Black Bezel – 2 Light Kit
Speaker 8700 J Series 12V DOT LED High & Low Beam Headlight with Black Bezel – 1 Light
Speaker 8700 J Series 12V DOT LED High & Low Beam Headlight with Chrome Bezel – 2 Light Kit
Speaker 8700 J Series 12V DOT LED High & Low Beam Headlight with Chrome Bezel – 1 Light
Speaker 8700 J Series 12V ECE LED LHT High & Low Beam Headlight with FP, DRL, & Black Bezel – 2 Light Kit
Speaker 8700 J Series 12V ECE LED LHT High & Low Beam Headlight with FP, DRL, & Black Bezel – 1 Light
Speaker 8700 J Series 12V ECE LED LHT High & Low Beam Headlight with FP, DRL, & Chrome Bezel – 2 Light Kit
Speaker 8700 J Series 12V ECE LED LHT High & Low Beam Headlight with FP, DRL, & Chrome Bezel – 1 Light
Speaker 8700 J Series 12V ECE LED RHT High & Low Beam Headlight with FP, DRL, & Black Bezel – 2 Light Kit
Speaker 8700 J Series 12V ECE LED RHT High & Low Beam Headlight with FP, DRL, & Black Bezel – 1 Light
Speaker 8700 J Series 12V ECE LED RHT High & Low Beam Headlight with FP, DRL, & Chrome Bezel – 2 Light Kit
Speaker 8700 J Series 12V ECE LED RHT High & Low Beam Headlight with FP, DRL, & Chrome Bezel – 1 Light
