Brand:
J.W. Speaker
Origin: USA
Click for:

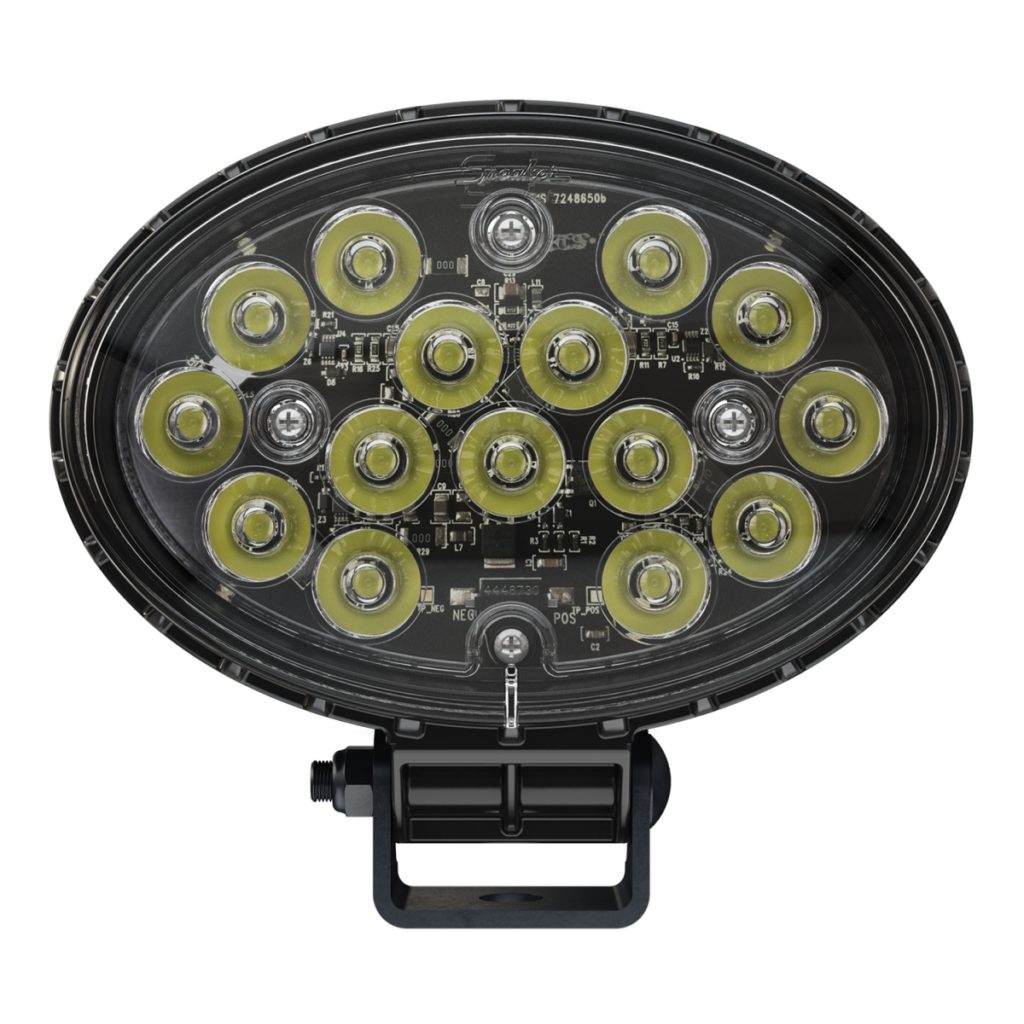

J.W. Speaker 7150 LED Work Light is one of J.W. Speaker’s brightest and toughest LED construction work lights and tractor work lights. The Speaker Model 7150 Work Light features a rugged yet lightweight single-piece aluminium housing that’s not only highly durable but also corrosion-resistant.
The Model 7150 is designed with stable harness connections to endure harsh applications, withstanding high-pressure washing, and steam cleaning. It is an excellent choice for applications such as mining and construction where a high degree of visibility and durability is required.
J.W. Speaker 7150 LED Work Light Features & Benefits ▲
- DC input voltage for use on a wide range of vehicles
- Available in impact-resistant polycarbonate lens or heat-resistant glass lens
- 24 Volt Versions are available for Theft Deterrence
J.W. Speaker 7150 LED Work Light Specifications ▲
| Lens | Polycarbonate or Glass Lens |
| Lens Pattern | Flood, Spot or Trapezoid |
| Housing | Die-Cast Magnesium |
| Connector | Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P) |
| Mating Connector | 2-Pin Deutsch Weather-Proof Plug (DT06-2S) |
| Mounting | Universal Mount Hardware: (x1) 1/2" Mounting Bolt |
| Input Voltage | 12-24V DC |
| Operating Voltage | 10-32V DC |
| Wattage | 78W |
| Surge | 330V Peak @ 1 HZ-100 Pulses |
| Light Source | Light Emitting Diodes (LEDs) 5,400 rLumens 4,500 eLumens |
| Amp | 5.50A @ 12V DC 3.20A @ 24V DC |
| Operating Temperature | -40ºC min / 65ºC max |
| Standards Compliance | CISPR 22, CISPR 12, IEC IP69K, SAE J1113-13, Eco Friendly |
| Warranty | 5 Years |
| Weight | 2.1lbs (1.0kg) |
| APS PN | JWS PN |
| 7150F | 1801581 |
| 7150S | 1801621 |
| 7150T | 1801571 |
| 7150F-G | 1801791 |
| 7150T-G | 1801781 |
| 7150F-24V | 1801951 |
| 7150T-24V | 1801961 |
J.W. Speaker 7150 LED Work Light Specifications Flyer (PDF) ▲

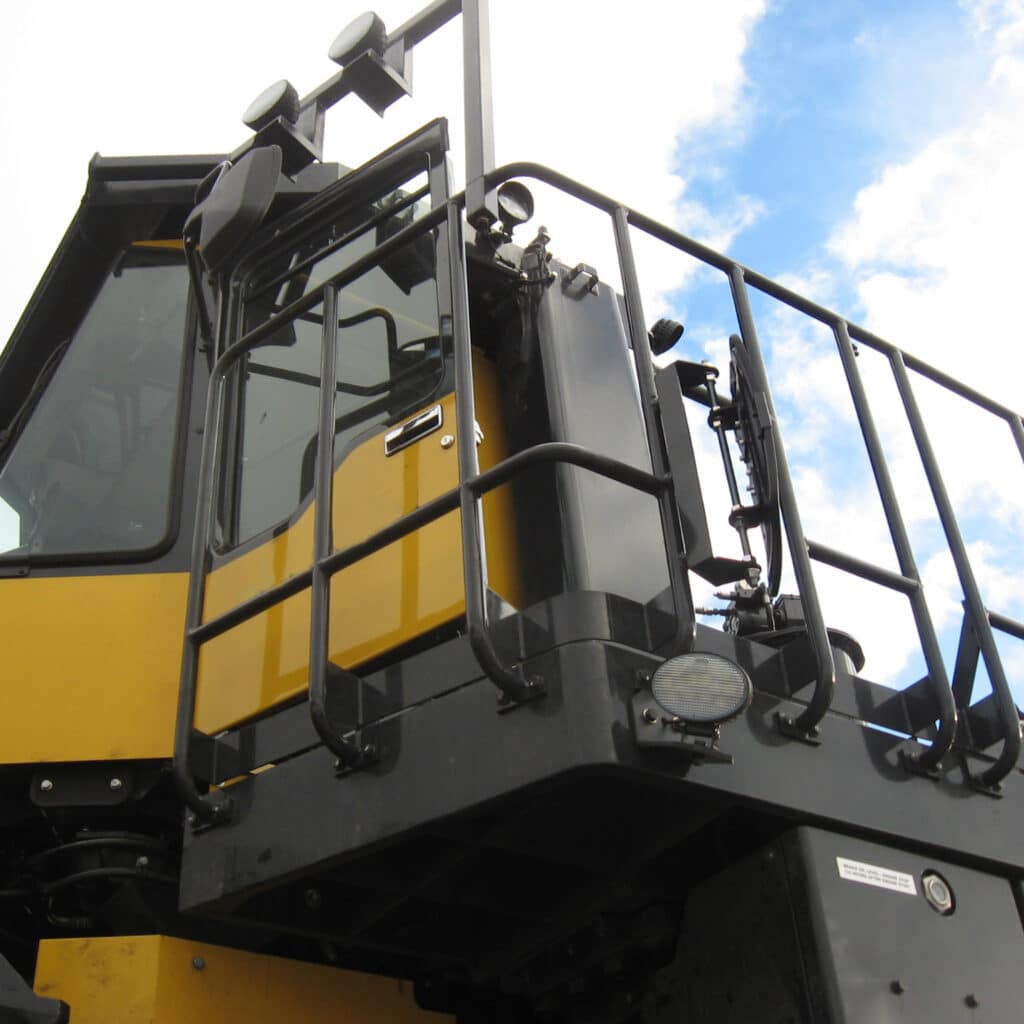

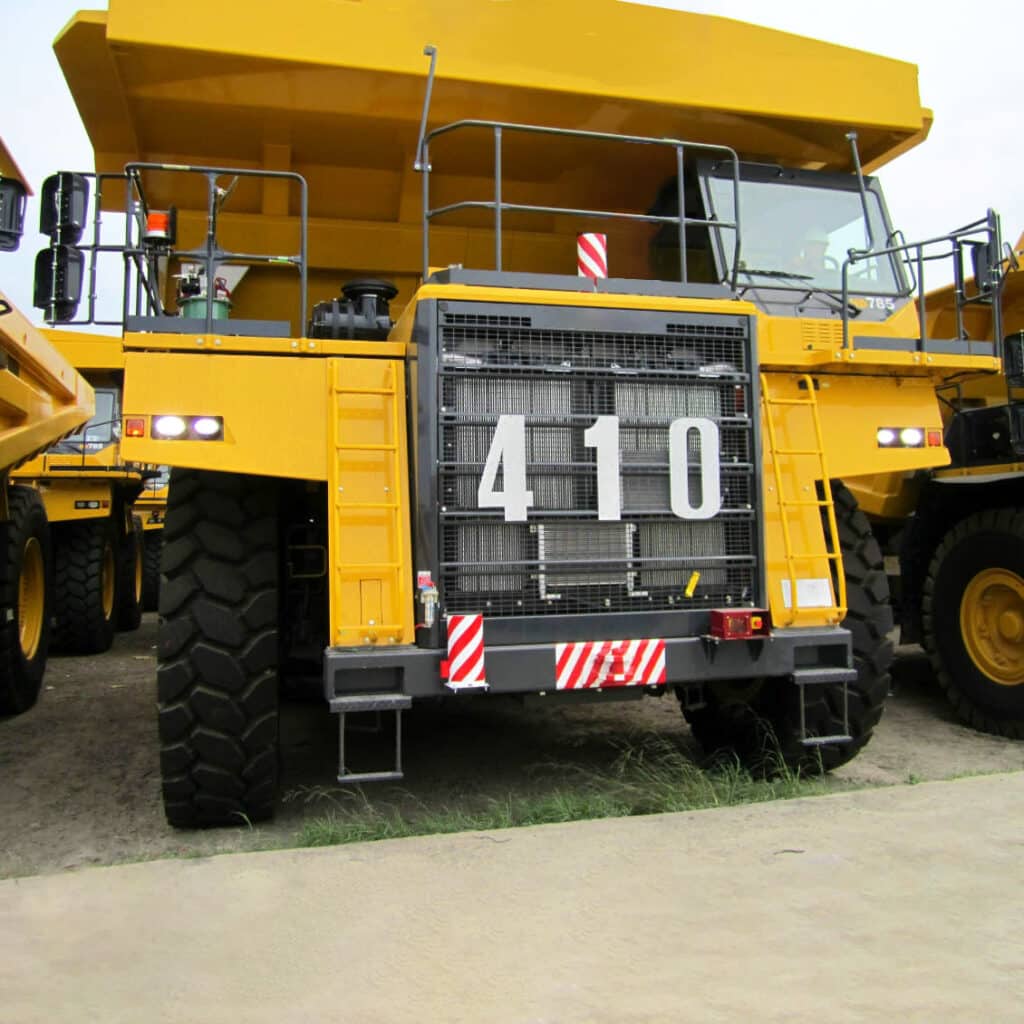

Applications: construction, industrial, mining, railroad, agriculture, tractors, material handling, truck and bus, off-road 4x4 and automotive
Dimensions:
Width: 6.79" (172.47 mm), Height: 6.14" (155.96 mm), Depth: 77.11" (3.04 mm)
J.W. Speaker 7150 LED Work Light Parts Enquiry ▲
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 12-24V DC, Polycarbonate Lens, Flood Beam Pattern, 1801581
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 12-24V DC, Polycarbonate Lens, Spot Beam Pattern, 1801621
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 12-24V DC, Polycarbonate Lens, Trapezoid Beam Pattern, 1801571
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 24V DC, Polycarbonate Lens, Flood Beam Pattern, 1801951
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 24V DC, Polycarbonate Lens, Trapezoid Beam Pattern, 1801961
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 12-24V DC, Glass Lens, Flood Beam Pattern, 1801791
J.W. Speaker 7150 Series 7″ x 5″ Oval LED Work Light: 12-24V DC, Glass Lens, Trapezoid Beam Pattern, 1801781
