Vision X 8.7” CG2 LED Light Cannon

Vision X 8.7” CG2 LED Light Cannon

Brand: Vision X
Origin: USA / South Korea


Click for:

CG2 Light Cannons are the ultimate light for blasting through the night with a powerful Spot driving beam pattern. These coupled with Multi-LED Cannons and there is nothing left in the dark.

CG2 LED Light Cannons are available in a Two Light Kit that includes two 8.7″ Cannons, a dual wiring harness for easy electrical setup, and an installation guide to help you get your Cannons hooked up. The two light kit adds an additional 12,400 raw lumens to your build, bringing the total effective lumens on the ground to 7,812 / 8,680. Vision X also offers mounting kits for various different applications to fit your needs.

Polycarbonate Covers allow various patterns of light distribution, including Spot, Euro, Combo, Flood, Wide Flood, or Elliptical beams. Each of these beam patterns is also available in a variety of tints, including amber, red, blue, or clear. A Black Out “Vision X” logo cover is also available for added protection when your lights are not in use. All covers are created from a high-grade polycarbonate material that adds some extra protection to your 8.7″ CG2 Light Cannon.

Vision X 8.7” CG2 LED Light Cannon Features & Benefits

  • Iris reflector and optic technology
  • Highest quality luminous LEDs
  • IP-68/69K watertight housing
  • Adjustable steel trunnion mount

Vision X 8.7” CG2 LED Light Cannon Videos

Vision X 8.7” CG2 LED Light Cannon Specifications

Amp Draw (@12V)Single light: 8.3A (Clear); 8.83A (selective yellow)
Two light kit: 16.67A
Input Voltage 9-32V DC
Beam Patterns 10°, snap-on filters available
Raw LumensSingle light: 6,200lm / two light kit: 12,400lm
Effective LumensSingle light: 4,340lm (clear); 3,906lm (selective yellow)
Two light kit: 8,680lm (clear); 7,812lm (selective yellow)
WattageSingle light: 100W / two light kit: 200W
LED Lifespan 50,000 hours
Size6.7”

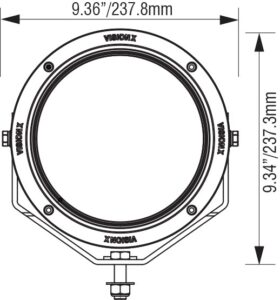

Dimensions (WxHxD)9.36”x9.34”x6.30”
WarrantyExtended

Vision X 8.7” CG2 LED Light Cannon ​Specification Flyer (PDF)


Applications: Fleet, light vehicles (LV’s), 4WDs, offroad, commercial trucks and buses
