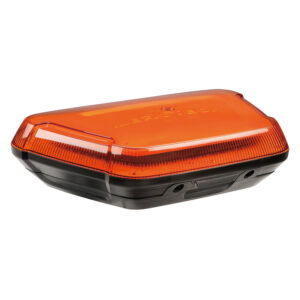

Vision X Lighting AeroTech LED Micro Bars

Vision X Lighting AeroTech LED Micro Bars

Brand: Vision X
Origin: USA / South Korea



Click for:

The AeroTech ® range of micro bars has been designed to be the brightest and most visible primary warning lights. This has been achieved with the combination of precision lens optics, high power LEDs along with a unique reflector design to ensure superior visibility day or night. AeroTech® micro bars are engineered to produce uniform, ultra-bright output which meets and exceeds all international standards.

Ultrasonic welding seals the micro bars from water and dust, ensuring an IP67+IP69K rating. Heavy-duty bases ensure durability in all applications. The polycarbonate lenses themselves, virtually unbreakable, and use a special Makrolon 2607 material which is resistant to UV. Solid state circuitry means no moving parts, so no mechanical failures. This attention to detail enables Vision X to provide a 7-year warranty. These lights really are engineered to go further.

The AeroTech ® range has multiple mounting options. With the option to mount via bolts to the cradle, directly to the base or even a magnetic mounting option rated to 74.5mph. They come in 3 different sizes to suit any need, from light commercial up to transport, construction and mining applications. All sizes available in Amber and Clear.

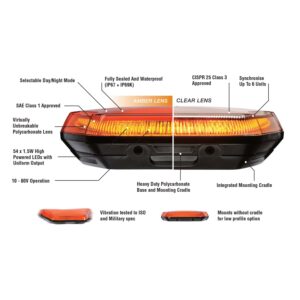

Vision X Lighting AeroTech LED Micro Bars Features & Benefits

  • Vision X’s most visible primary warning lights
  • Ultra bright, smooth output which meets and exceeds all international standards
  • Optional night mode via extra wire
  • Ultra durable with extreme vibration resistance
  • Versatile, easy mounting
  • Available in Amber and Clear

Vision X Lighting AeroTech LED Micro Bars Specifications

LED54x1.5W LEDs
Flash Patterns7 Selectable - Rotator (Default), Double Rotate, Double Flash (SAE, ECE TA2), Ultra (cross flash), Ultra (alternating flash), Quint Flash, Steady On
Wattage81W
Amp Draw1.7A @12V DC Rotate / 3.5A @12V DC Flash
Operating Voltage10-80V DC
Operating Temp-30°C ~ +60°C
Lifespan50,000 hrs
Housing MaterialPolycarbonate Base
Lens MaterialPolycarbonate
Shock/VibrationISO 16750-3, MIL-STD-810G
ApprovalsCE, ROHS, REACH
Ingress ProtectionIP67, IP69K
ECE ApprovalECE R65 TA2, ECE R10
EMC ComplianceCISPR25 Class 3
SAE ComplianceJ845 Class 1, W3-1
Fixture Weight4.19 lbs / 1.90kg
MountingCradle, Magnetic (see Parts table below)
Warranty7 years

Vision X Lighting AeroTech LED Micro Bars ​Specification Flyer (PDF)


Applications: Civil and construction, commercial, material handling, industrial, fleets, above ground or below ground mining.

Vision X Lighting AeroTech LED Micro Bars Parts Enquiry

Part#
Description
