Brand:
Vision X
Origin: USA
Click for:
The all-new Vision X Shocker X2 LED Light Bar packs two rows of Vision X’s patented Iris Reflectors with 5W ultra-bright LEDS to produce a wide and long-distance beam pattern that is prime for turning any night-time adventure into daylight. The dual row LEDs means doubling the output when compared to most single row LED light bars, therefore making the Shocker X2 the newest and brightest addition to the Vision X LED light bar range.
Constructed out of 6061 extruded aluminium, the oversized heatsink housing design ensures that the Shocker X2 will maintain maximum output even after prolonged use. Equipped with a GORE® pressure relief valve and moisture block membrane, the Shocker X2’s internals are completely protected from water and dust ingress (IP68 and IP69K Rated).
The Vision X Shocker X2 also features a smooth back-lit halo function that off-road lights are known for and can be used as a daytime running light or parking light for added style. Available in 10″ to 51″ (25.4cm to 129.5cm) lengths, each bar will include a complete wiring harness, heavy-duty wing mounts, and is backed by Vision X’s lifetime warranty.
Vision X Shocker X2 Dual Row Light Bar Series Features & Benefits ▲
- High Output CREE LEDs: The 5W XT-E HE LED from Cree coupled with Iris Reflectors is what allows the Shocker X2 to project light up to 885m (2,905 ft).

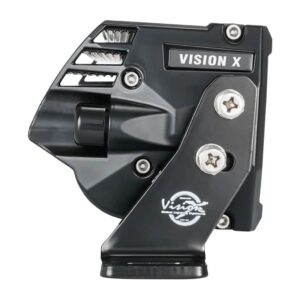

- Dual Mounting Standard: Each Shocker X2 Light Bar includes side wing mounts and Vision X’s patented mounting feet to accommodate any mounting points.
- Smooth Backlit Halo: The Shocker X2 comes equipped with a back-lit halo that can be used as a daytime running light or parking light.
Vision X Shocker X2 Dual Row Light Bar Series Videos ▲
Vision X Shocker X2 Dual Row Light Bar Series Specifications ▲
| Type | 5W XT-E HE High Output CREE LEDs |
| Beam Pattern | Broad Spot |
| rLumens | 6,420 Lu (SHK-X2BH2.6 - 10” Shocker X2), 16,050 Lu (SHK-X2BH2.15 - 20” Shocker X2), 25,680 Lu (SHK-X2BH2.24 - 32” Shocker X2), 32,100 Lu (SHK-X2BH2.30 - 40” Shocker X2), 34,240 Lu (SHK-X2BH2.39 - 51” Shocker X2) |
| Beam Distance | 1,210 ft / 368.8m (SHK-X2BH2.6 - 10” Shocker X2), 1,770 ft / 539.5m (SHK-X2BH2.15 - 20” Shocker X2), 2,495 ft / 760.5m (SHK-X2BH2.24 - 32” Shocker X2), 2,820 ft / 859.5m (SHK-X2BH2.30 - 40” Shocker X2), 2,905 ft / 885.4m (SHK-X2BH2.39 - 51” Shocker X2) |
| Voltage | 9-32V DC |
| Watts | 60W (SHK-X2BH2.6 - 10” Shocker X2), 150W (SHK-X2BH2.15 - 20” Shocker X2), 240W (SHK-X2BH2.24 - 32” Shocker X2), 300W (SHK-X2BH2.30 - 40” Shocker X2), 320W (SHK-X2BH2.39 - 51” Shocker X2) |
| Amps | 5A @ 12V DC (SHK-X2BH2.6 - 10” Shocker X2), 12.5A @ 12V DC (SHK-X2BH2.15 - 20” Shocker X2), 20A @ 12V DC (SHK-X2BH2.24 - 32” Shocker X2), 25A @ 12V DC (SHK-X2BH2.30 - 40” Shocker X2), 26.67A @ 12V DC (SHK-X2BH2.39 - 51” Shocker X2) |
| Operating Temp | -40°C to +80°C |
| Rating | IP68, IP69K |
| Housing | Extruded 6061 Aluminium |
| Mounting / Hardware | Includes mounting hardware and a wiring harness complete with relays and a lighted rocker switch. |
| Lengths (accurate) | 9.57" / 24.3cm (SHK-X2BH2.6), 20.9" / 53.1cm (SHK-X2BH2.15), 32.24" / 81.9cm (SHK-X2BH2.24), 39.8" / 101.1cm (SHK-X2BH2.30), 50.98" / 129.5cm (SHK-X2BH2.39) |
| Dimensions (DxLxH) | 3.82" / 97mm Depth x (LENGTH) x 3.82" / 97mm High (LENGTH's as shown above) |
| Warranty | Vision X Limited Lifetime Warranty |
Vision X Shocker X2 Dual Row Light Bar Series Specifications Flyer (PDF) ▲
Applications: Mining Light Vehicles (LV's), Service Vehicles, Automotive, Off-road, 4x4, 4WDs
Vision X Shocker X2 Dual Row Light Bar Series Parts Enquiry ▲
10” Shocker X2, 6,420 rLu, 1,210 ft beam, 60W, 5A, Broad Spot (VX Part No. 2610216)
20” Shocker X2, 16,050 rLu, 1,770 ft beam, 150W, 12.5A, Broad Spot (VX Part No. 2620216)
32” Shocker X2, 25,680 rLu, 2,495 ft beam, 240W, 20A, Broad Spot (VX Part No. 2630216)
40” Shocker X2, 32,100 rLu, 2,820 ft beam, 300W, 25A, Broad Spot (VX Part No. 2640216)
51” Shocker X2, 34,240 rLu, 2,905 ft beam, 320W, 26.67A, Broad Spot (VX Part No. 2650216)
