Brand:
Vision X
Origin: USA / South Korea
Click for:

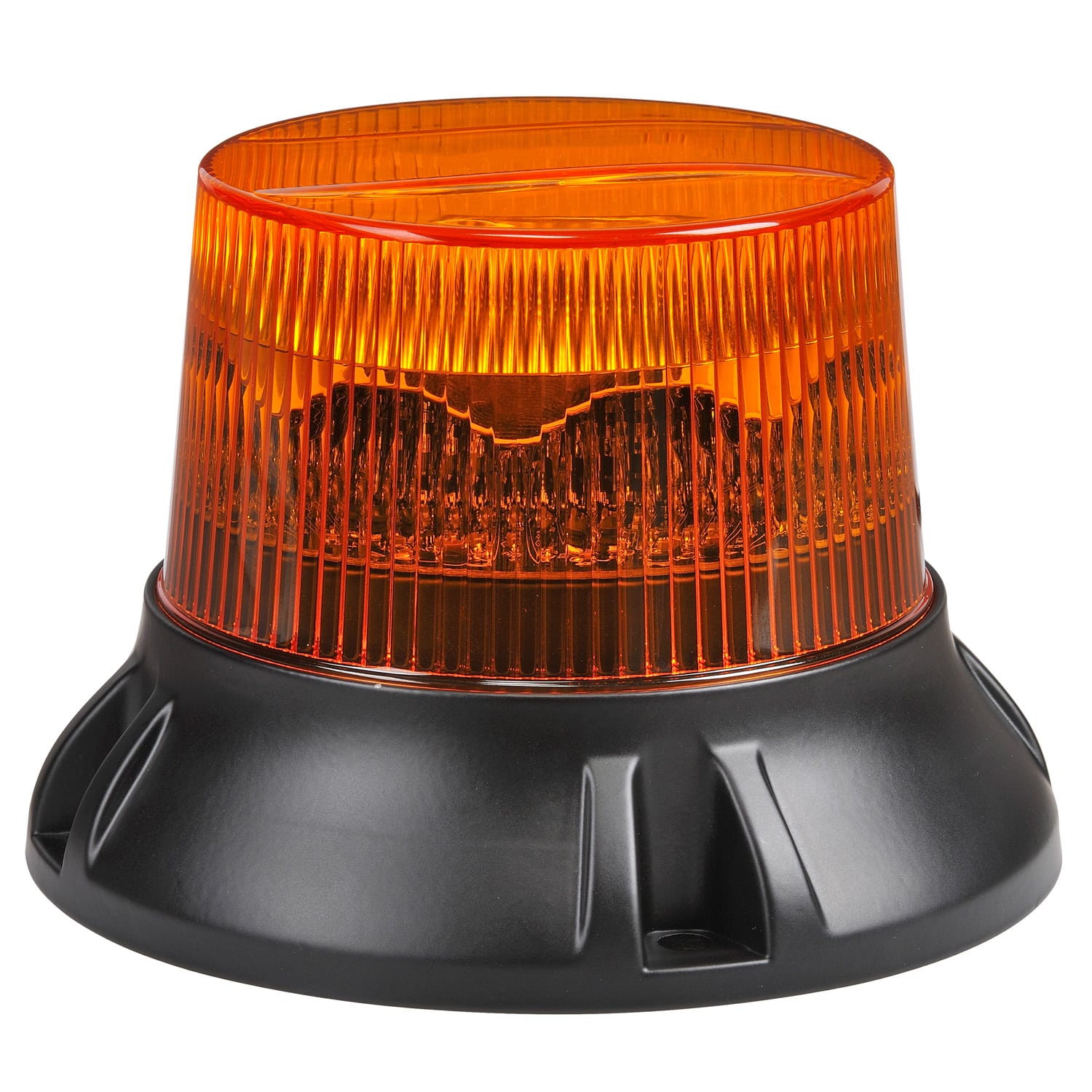

Specifically designed to thrive in the super harsh environment of mines, the Tremor XD Small mining strobes are rated to IP69K and IP67. Featuring a die-cast aluminum base and virtually unbreakable polycarbonate lens, these strobes are made to last. They can be washed with a pressure washer and steam cleaned without compromising the product.
Vision X Tremor XD LED Beacon Small Features & Benefits ▲
- 5 Flash Patterns including Rotator and Flash
- Heavy duty die-cast aluminum base and polycarbonate lens
- Advanced circuity and high output LEDs
- Smooth external lens to prevent external dust and dirt buildup
Vision X Tremor XD LED Beacon Small Specifications▲
| LED | 8 x 5W |
| Flash Patterns | 6 Selectable - Rotator (SAE/ECE), Rotator Quint Flash, Single Flash (SAE), Quint Flash, Ultra Flash, Steady On |
| Wattage | 40W |
| Amp Draw | 2.0 @ 12V |
| Operating Voltage | 9-80V DC |
| Operating Temp | -30°C ~ +80°C |
| Lifespan | 50,000 hrs |
| Housing Material | Aluminum Base |
| Lens Material | Polycarbonate |
| Shock/Vibration | ISO 16750-3, MIL-STD-810G |
| Approvals | CE, ROHS, REACH |
| Ingress Protection | IP67, IP69K |
| ECE Approval | ECE R65 TA1, ECE R10 |
| EMC Compliance | CISPR25 Class 3 |
| SAE Compliance | J845 Class 1, W3-1 |
| Fixture Weight | 1.3lbs (0.6kg) |
| Mounting | 4-Bolt Flange |
| Warranty | 7 years |
Vision X Tremor XD LED Beacon Small Specification Flyer (PDF)▲
Applications: Civil and construction, commercial, material handling, industrial, fleets, above ground or below ground mining.
