ABL C700 LED850 Compact

ABL C700 LED850 Compact

Brand: ABL Lights
Origin: USA


ABL C700 LED850 Compact Series has been replaced by ABL RL LED1000 Series. Same great C700 form, fit and function with upgraded Lumen Output from 850 eLumens to 1000 eLumens.

Click for: ABL RL LED1000 Series

Click for:

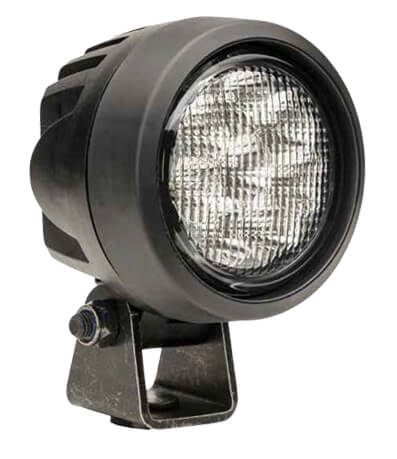

The LED850 is a compact LED-powered work lamp in the C700 series by ABL Lights Group. This 11W version features 8 LED bulbs and pumps out an impressive 850 Lumens. Built tough with a shock rating of 60G, a vibration rating of 15Grms @ 24-2000Hz, and high ingress protection rating of IP68 and IP69K, this lamp exceeds everyday demands in all applications from handling equipment to heavy vehicles.

The ABL C700 LED850 Compact is a direct replacement for the ABL 700 halogen work lamp, which uses a single 34W or 55W H3 bulb.

ABL C700 LED850 Compact Specifications

Light source8 LEDs
Colour Temperature6000°K
eLumens (effective)850 Lu
rLumens (raw)1470 Lu
Beam PatternFlood, Long Range
Wattage11W
Current Draw0.46A @ 24V DC
Voltage12-24V DC multi
Operating Temperature-40°C to +85°C
Vibration Resistance15Grms @ 24-2000Hz
Shock Resistance60G
EMCISO 13766 - Earthmoving Equipment
ISO 14982 - Forestry/Agricultural
ISO 12985 - Handling Equipment
CISPR25 - Radio compatibility
Load Dump36V continuous / 72V 100 ms / 1800V 50 μs
PolarityNo polarity
ConnectionBuilt-in DT 2 ways
LensHardened glass
ReflectorFree form reflector
Electronic Thermal ManagementFull output @ +35°C ambiant
20% dimmed @ +50°C ambiant
IP RatingIP68, IP69K
Salt SprayISO 9227
MountingPedestal, suspended
Weight1.1 (lbs) / 0.5 (kgs)
Dimensions (DxWxH)3.03x3.58x5.07" (77x91x129mm)

ABL C700 LED850 Compact Specifications Flyer (PDF)


CAT OEM PN’s for the ABL C700 LED850 Compact and ABL C700 LED1200 Compact Work Light
Below is a list of some of the CAT OEM PN’s for the ABL C700 LED850 Compact and ABL C700 LED1200 Compact Work Light.

OEM Machine Light Type OEM P/N
Caterpillar Various C700 LED 850 479-8444
Caterpillar Various C700 LED 850 479-8445
Caterpillar Various C700 LED 850 479-8446
Caterpillar Various C700 LED 850 479-8447
Caterpillar Various C700 LED 1200 479-8450
Caterpillar Various C700 LED 1200 479-8451
Caterpillar Various C700 LED 1200 479-8452
Caterpillar Various C700 LED 1200 479-8453

Also for the:
C700 LED850, CAT: 524-8521, 526-4904, 524-8524


Applications: Heavy Equipment, Mining, Construction, Road and Utility Equipment, Forestry, Agriculture


Dimensions:
Width: 3.58" (91 mm), Height: 5.07" (129 mm), Depth: 3.03" (77 mm)

ABL C700 LED850 Compact Parts Enquiry

Part#
Description
Usually ships: 5D
Sell Qty: Each
Ship Weight: 1.1 (lbs) / 0.5 (kgs)
Usually ships: 5D
Sell Qty: Each
Ship Weight: 1.1 (lbs) / 0.5 (kgs)
