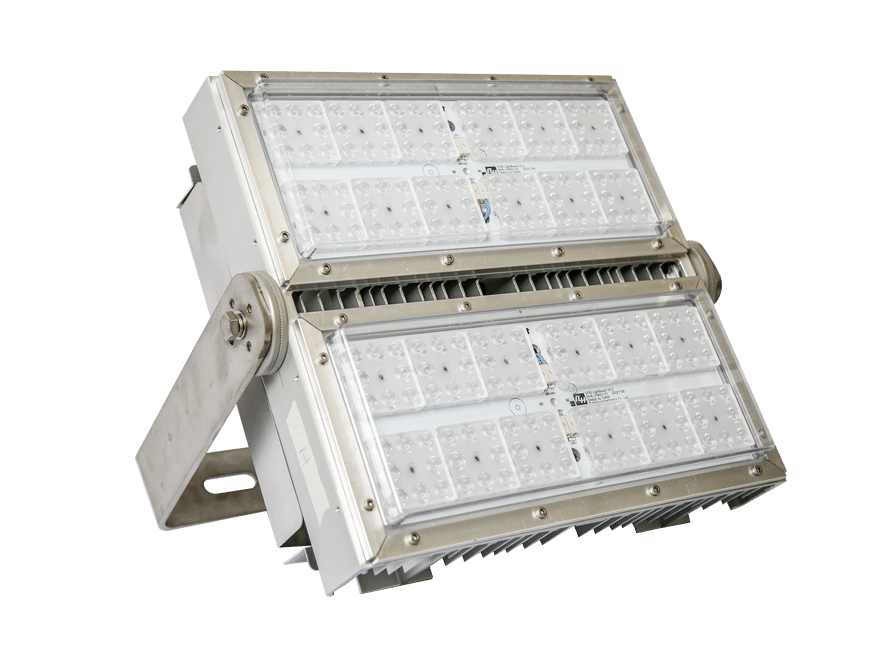

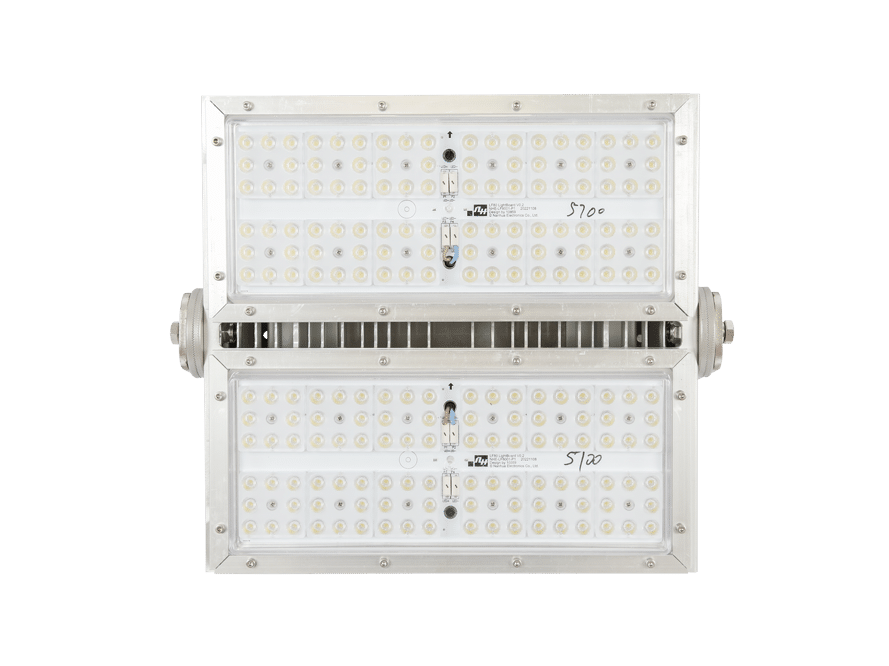

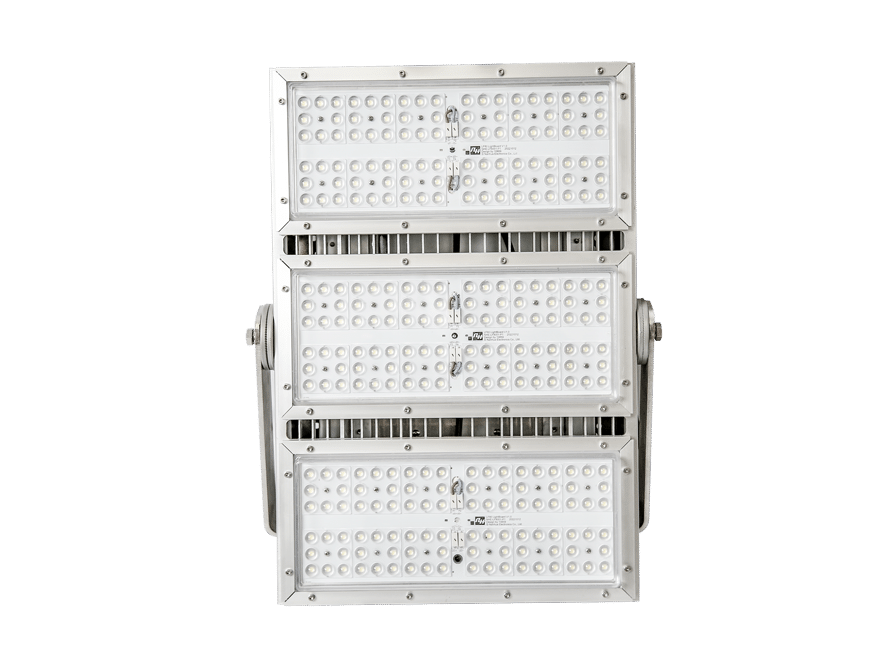

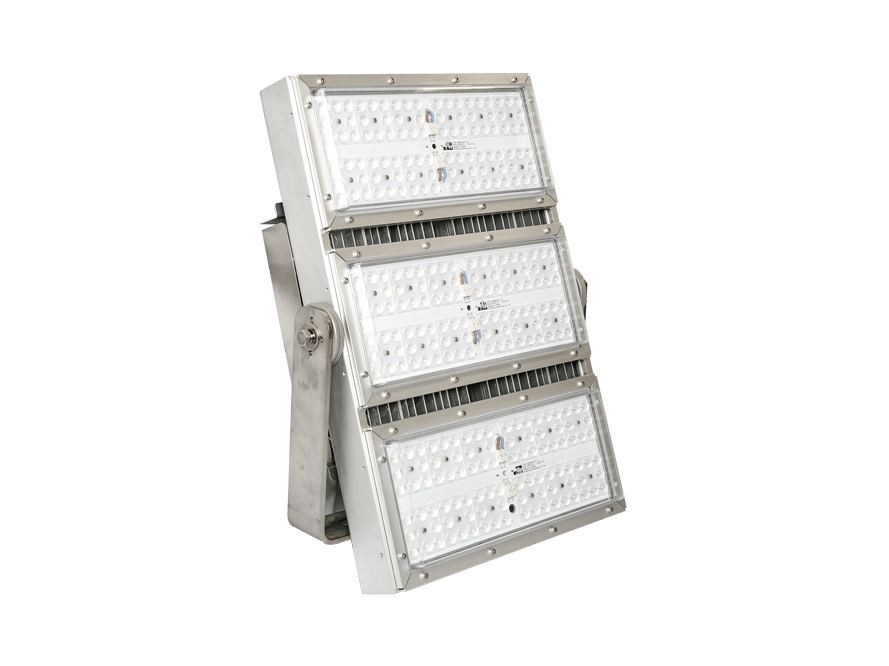

APS LF80 Series LED Flood Light

APS LF80 Series LED Flood Light

Brand: APS Lighting & Safety

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

LF80 series modular LED flood lights, combined with a variety of optical lenses, provide lighting solutions with high efficiency, energy saving and low maintenance rate, and provide stable and comfortable lighting effects for the lighting area, so that staff can focus more on work safety and improve work efficiency. It is mainly used for industrial lighting in ports, large-scale operation mines, airports, stadiums and other places.

APS LF80 Series LED Flood Light Features & Benefits  ▲

  • High thermal conductivity aluminum extrusion molding heat sink, improve LED service life.
  • Well-designed heat flow channels keep the luminaire excellent heat dissipation performance.
  • Equipped with waterproof and breathable valve to balance the temperature and pressure inside and outside the lamp to protect the LED light source device.
  • A variety of optical light distribution options are available for more lighting scenarios.
  • Clear and visible illumination angle adjustment, suitable for lighting in a variety of different positions.
  • Optional light shield can be used to make the light interception effect of lamps better and effectively reduce glare.

APS LF80 Series LED Flood Light Specifications  ▲

Light SourceLED
Color TemperatureCold white: 5700K
Warm white:2700K
CRICold white: Ra≥70 Warm white: Ra≥80
Luminous EfficacyCold white: 140lm/W Warm white: 115lm/W
Source Life≥50000h
Beam Angle15° / 60°
Frequency50/60Hz
Rated Power300W, 400W, 600W
PFPF > 0.9
EMCIEC61000-4-2 Contact discharge:8KV
Air discharge:15KV
IEC61000-4-3 800~1000MHz 10V/m
IEC61000-4-4 ±2KV
IEC61000-4-5 DM:±6KV CM:±10KV[1]
IEC61000-4-6 0.15~80MHz 10V/m
EN55015 CLASS C
Wiring MethodLead wire
Rated Voltage100-240VAC
ColorSilvery white
HousingAluminum alloy
CoverPC
FinishAnodized
Weight11Kg, 12Kg, 17Kg
MountingBracket
Ta-40°C ~ +50°C
Vibration LevelIEC60068-2-6 5g
IP RateIEC60529 IP67
Anti-corrosionISO12944 C5 M
CEEN60598-1, EN60598-2-5, EN62493, EN62471, EN55015, EN61547, EN61000-3-2, EN61000-3-3
UL / CSAUL1598, UL8750/CSA C22.2 No. 250.0-08, CSA C22.2 No. 250.13

APS LF80 Series LED Flood Light Part Numbers  ▲

Part No.① Voltage② Power③ Color Temperature④ Beam Angle⑤ Wire Method⑥ Mounting
LF80-①②③④⑤⑥A: 100-240V AC300: 300W

400: 400W

600: 600W		C: 5700K

W: 2700K		N: 15°

W: 60°		1: Lead wire 2mA: Bracket (U type / SUS304/6mm/hole spacing90~150mm&240~300mm/ high 240mm）

APS LF80 Series LED Flood Light Specifications Flyer (PDF)  ▲

Applications: Large open areas, ports and wharves, large-scale mining operations, airports, stadiums, workshops, warehouses, and perimeter lighting
