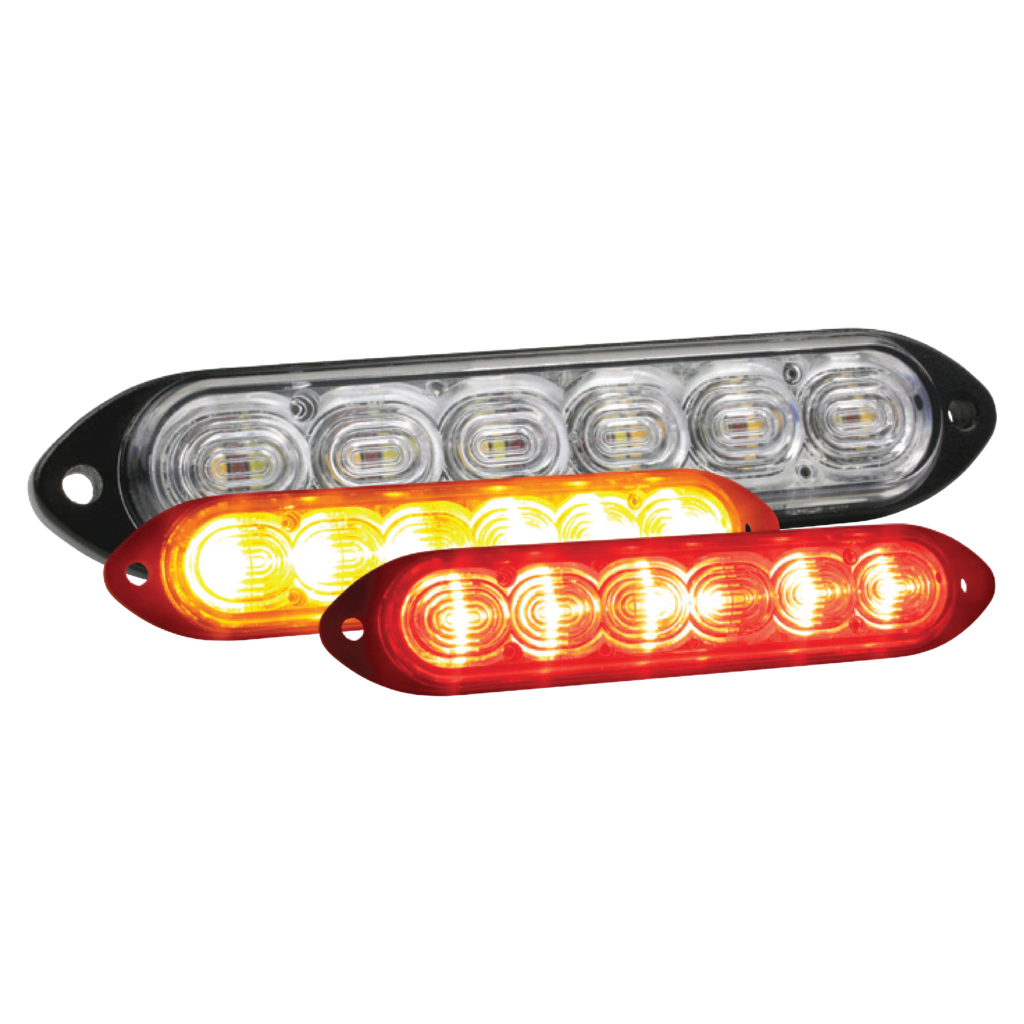

Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red

Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red

Brand: Grote
Origin: USA

Manuf. PN: 78462

Click for:

•   Features & Benefits
•   Videos,  Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

Auxiliary Strobe & Stop Lamps

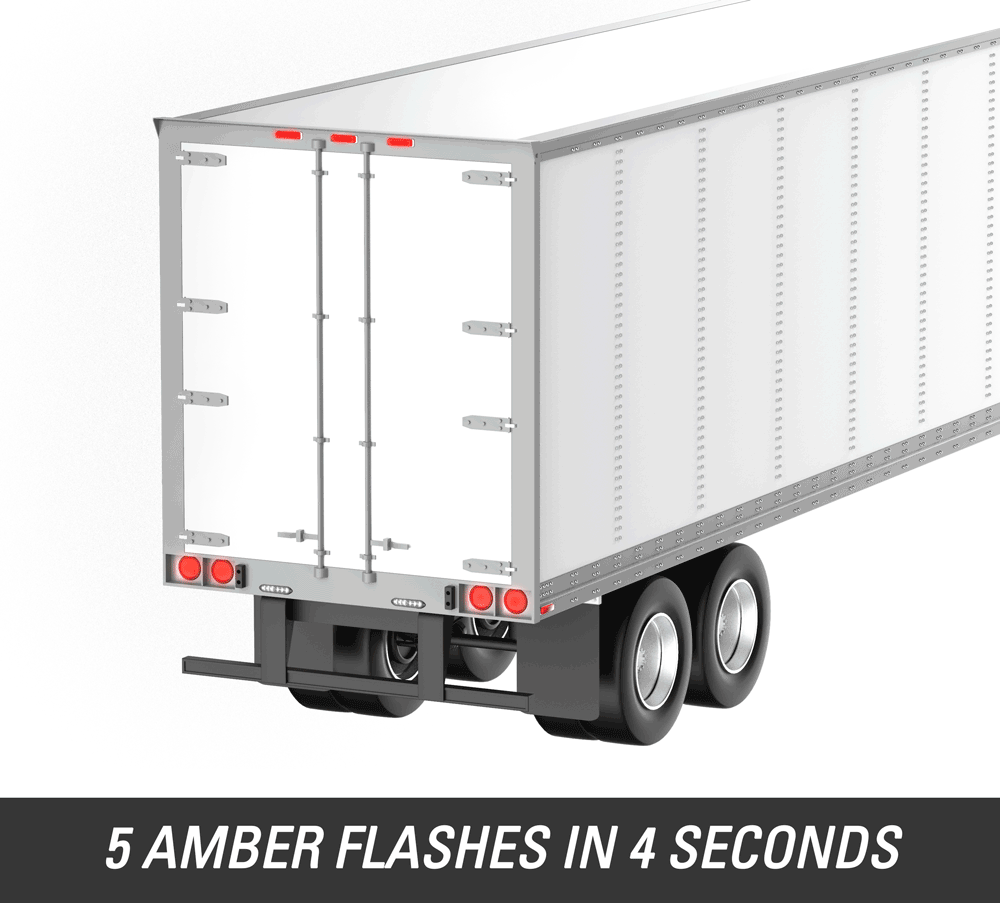

Fight the dangers of distracted driving with Grote’s Auxiliary Strobe & Stop Lamp, a groundbreaking warning light that brings greater visibility to trailers during braking. The Auxiliary Strobe & Stop Lamp is easily wired into an existing brake light circuit and emits a sequence of five amber flashes in four seconds followed by a solid red burn when the vehicle’s brakes are engaged. Reducing rear-end collisions and increasing operator safety with this simple, effective warning light means less equipment and freight damage, less downtime, and fewer delayed shipments.

Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red Features & Benefits  ▲

  • Lamp integrated to brake circuit
  • Surface mount with several wiring options to fit all harness systems
  • Five amber flashes in four seconds followed by a solid red burn prevents flicker vertigo for following traffic
  • 0.2” mounting hole
  • 12 Volt
  • Maximum amp draw of 0.4 amps
  • 5-year warranty
  • Studies show that flashing brake lights can reduce rear-end accidents by more than fifty percent

Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red Video▲


Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red Specifications  ▲

ColorAmber/Red
ClassClass II
Amperage0.2-0.4A
FinishBlack Powder Coated
Connection TypeHardwired to .180 male bullets
Operating Temperature-40°C to +55°C
Mounting TypeSurface
Lens ColorClear
MaterialPolycarbonate Lens, Aluminium Housing
Voltage12V
SizeLow Profile
StandardsSAE J595, SAE J1889, SAE J186a
VMRS034-001-021
Wire Length11.7"
Wire Gauge14 GA
Warranty5 Years

Grote 78462 Auxiliary Strobe & Stop Lamp – Surface Mount, Flashing Amber/Solid Red Specifications Flyer (PDF)  ▲

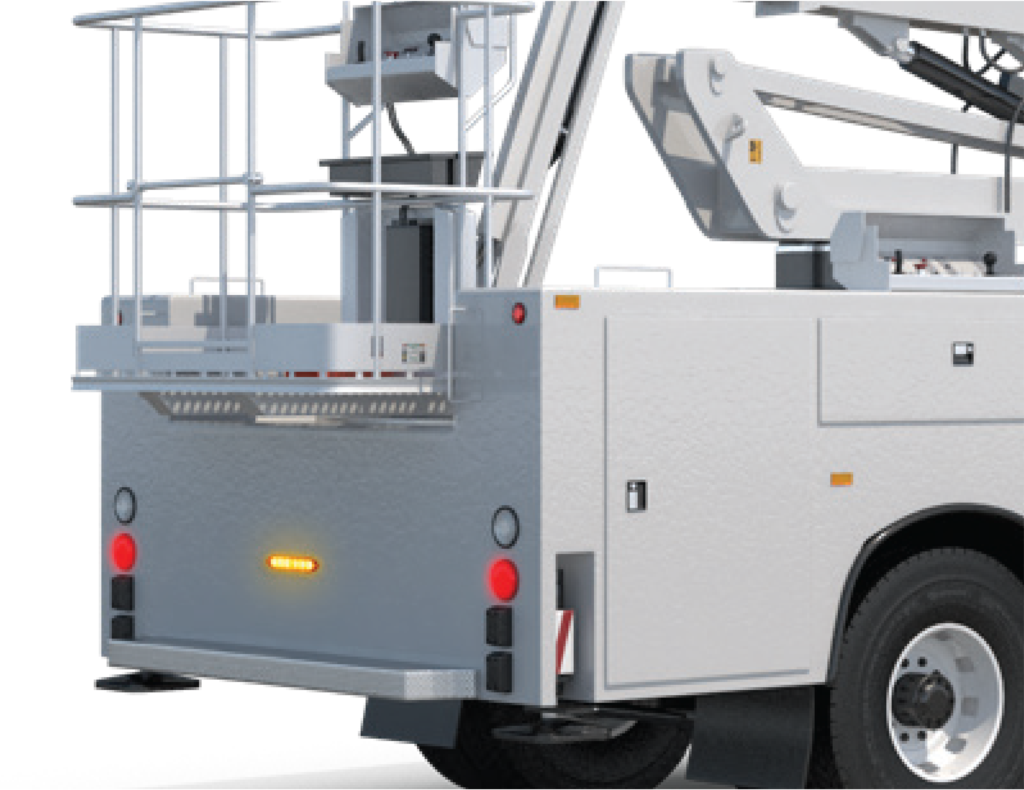

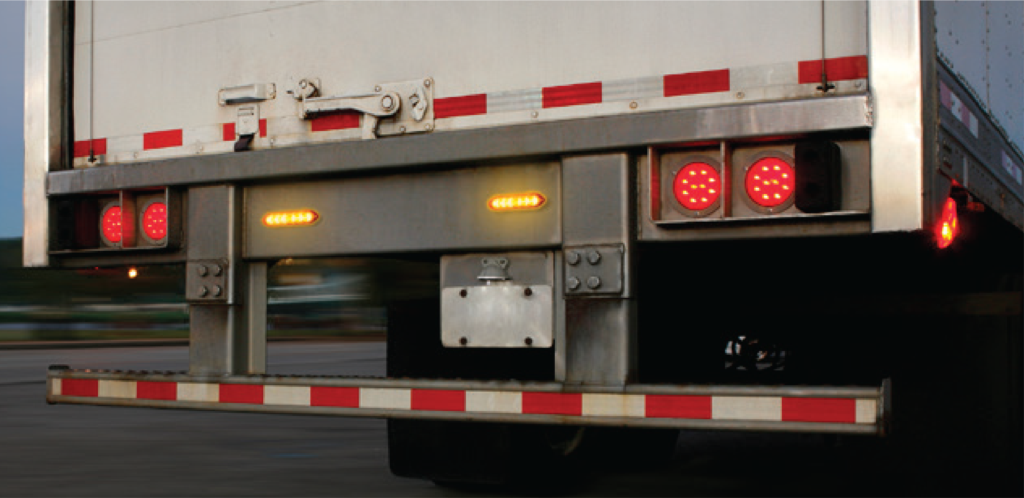

Applications: Work trucks, utility and service vehicles, commercial fleets, towing and recovery, refuse vehicles, trailers, municipal, construction and road maintenance, emergency vehicles, buses

Dimensions:
Width: 1" , Depth: 5" , Length: 5.5"
