Brand:
Grote
Origin: USA
Click for:
Safety Lights HINVII Technology
Low visibility in dark areas while working around machines can create safety hazards for the employees. Turn high-visibility clothing, reflectors, and equipment into active safety devices with High Intensity Non-Visible Intelligent Illumination (HINVII). HINVII lamps use non-visible, low-wavelength light to brilliantly illuminate any highvisibility material, significantly raising its conspicuousness without blinding personnel and surrounding traffic. HINVII technology can better illuminate worksite personnel. Create a safer, more hazard-free, and more visible work zone with HINVII.
High Intensity Non-Visible Intelligent Illumination (HINVII) Features & Benefits ▲
- Get the most out of Hi-Viz clothing and gear, enhancing worksite visibility and safety
- Pefect for Applications where Hi-Viz clothing is used: Police, Fire, EMS, Utility, Refuse Collection, and more

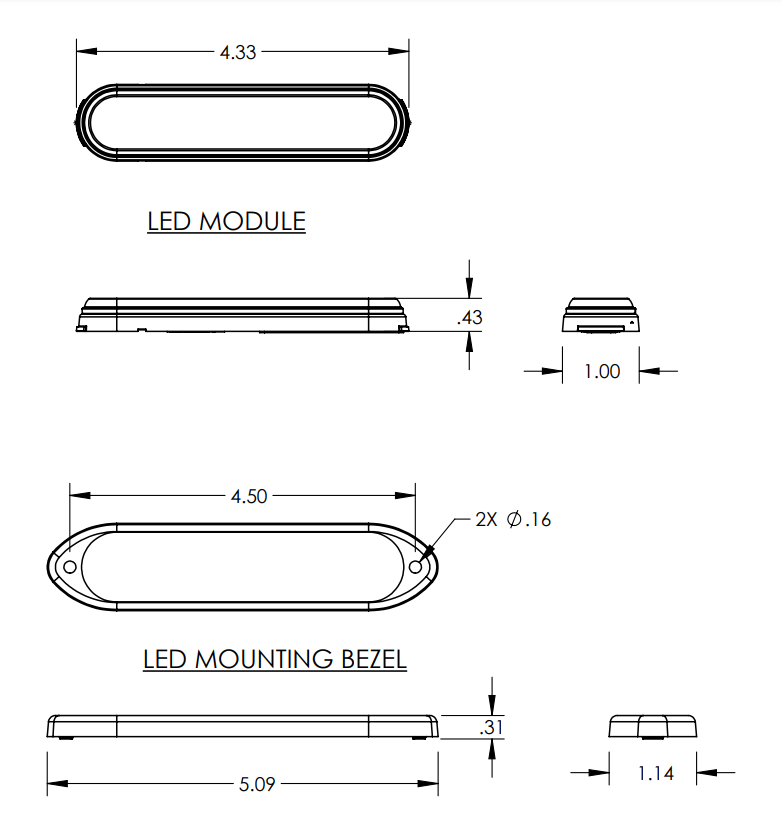

- Ultra Thin profile bezel mount with 79276
- Ultrasonic weld fuses lens to plastic base providing maximum weather tight seal on 79276 (7/16” x 1 5/32” x 5 3/32”)
- Robust design utilizing a heavy duty die cast aluminium base on 79266 (1/2” x 1” x 4 31/32”)
- HINVII® technology combined with Amber warning lights will enhance worksite visibility and safety
- NV with Amber LED version offers 12 different selectable flash patterns
- Can be used with or without an external flasher
- Can be easily mounted to just about any solid flat surface
- Colors: Amber/NV and NV
High Intensity Non-Visible Intelligent Illumination (HINVII) Video▲
High Intensity Non-Visible Intelligent Illumination (HINVII) Specifications ▲
| Input Voltage Range | 10-30V DC |
| Current Draw | 79276: 0.4A Avg, 0.8A Peak @ 12.8V DC 79266: 0.4A Avg, 0.8A Peak @ 12.8V DC |
| NV Nominal Peak Wave Lenght Output | 401nm |
| Operating Temperature Range | -40°C to +55°C |
| 2 Hole Mount | 4.50” |
| Module DC Lens | Polycarbonate |
| Module Housing | 79276: Polycarbonate 79266: Die Cast, Black Powder Coat |
| Mounting Hardware | #6 x 5/8” Phil Pan Black Stainless Steel Screws |
| Mounting Gasket | EPDM Foam Rubber |
| Pattern | 79276: Steady with Slow Bursts |
| Certifications | 79266: SAE J595 (Amber only), SEE Chart |
| Mounting Type | Surface |
| Connection Type | Blunt Cut |
| Part No. | Termination | Voltage | Amperage |
| 79276 | Blunt cut | 12/24V DC | 0.4A |
| 79276-3 | Blunt cut | 12/24V DC | 0.4A |
| 79266 | Blunt cut | 12/24V DC | 0.4A |
| 79266-3 | Blunt cut | 12/24V DC | 0.4A |
High Intensity Non-Visible Intelligent Illumination (HINVII) Flyer (PDF) ▲
Applications: Fleets, Municipalities and mines
