J.W. Speaker Model 795 LED Compact Work Light 1604221

Click to enlarge

J.W. Speaker Model 795 Right View

J.W. Speaker Model 795 Front View

J.W. Speaker Model 795 Lights on White Flood Front Position

J.W. Speaker Model 795 Lights on Amber DI

J.W. Speaker Model 795 Photometric

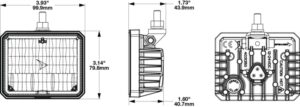

J.W. Speaker Model 795 Dimensions

J.W. Speaker Model 795 on Back of Tractor

J.W. Speaker Model 795 on Front of Tractor

J.W. Speaker Model 795 Amber Indicator Mounted to Roof of On Road-Tractor

Brand: J.W. Speaker
Origin: USA

Click for:

• Features & Benefits
• Photos & Images
• Specs Table
• Specs Flyer (PDF)
• Parts Enquiry
• Related Products

3” x 4”
Operating agriculture equipment demands consistent and high-quality lighting for worker safety and productivity. In environments such as mining, industrial, construction, and agriculture, workers face unique challenges. These include constantly changing weather conditions and frequent, rigorous use of equipment. Reliable lighting is essential to navigate these challenges, ensuring workers can perform their tasks efficiently and safely. This is especially important when traveling between different locations using roadways.

The Model 795 LED Amber/White Compact Work Light 1604221 is designed with these applications in mind.
Constructed with robust aluminum housing and a tough polycarbonate lens, the Model 795 is designed to excel in the most demanding worksites. This durable, 4”x3”, pedestal-mounted, corrosion-resistant, LED light easily fits a variety of work vehicles, ensuring continuous productivity.

J.W. Speaker, known for creating high-performance LED technology, introduces the latest generation in our compact work light series. The Model 795 LED Amber/White Compact Work Light is designed to help workers transport equipment between locations while staying compliant with on-road safety regulations, ensuring they have the necessary illumination to tackle the toughest tasks with confidence and clarity.

The Model 795 is a dual-function work light: the top half is a white LED work light producing 1980 lumens, ideal for agriculture, construction, mining, and off-road environments to stay productive at any hour, in any weather. The lower half of the work light is an amber direction indicator (DI). The DI meets ECE Regulation 148 – 1B, and when activated, overrides the work light. The lower half can be in a hazard/flash mode when on the roadway or can remain constantly on.

Rated IP67 and IP69K and engineered with tight spaces in mind, the low profile design of the Model 795 LED Compact Work Light provides a compact lighting solution for a wide range of applications.

J.W. Speaker Model 795 LED Compact Work Light Features & Benefits ▲

Available in pedestal mount option
Powerful 1,980 effective lumens of light output in a flood pattern
Durable polycarbonate lens is impact resistant
Aluminum black housing is durable and corrosion-resistant
Low-profile Dimensions: Height: 3in, Width: 4in, Depth: 1.7in
Input Voltage: 12/24V DC
DI meets ECE Regulation 148 1

J.W. Speaker Model 795 LED Compact Work Light Specifications ▲

Input Voltage	12-24V DC
Operating Voltage	9-32V DC
rLumen	3540 lumens
eLumen	1980 lumens
Candela Output	3300
Nominal LED Color Temperature	5050 K
Current Draw	Amber: 0.19A @ 12V DC; 0.20A @ 24V DC White: 1.10A @ 24V DC; 2.30A @ 12V DC
Outer Lens Material	Polycarbonate
Outer Lens Color	Clear
Housing Material	Aluminum
Housing Color	Black
Mounting Hardware Description	(x1) 5/16”-18 x 1.00” Mounting Bolt Bracket
Mounting Type	Pedestal
Minimum Operating Temperature	-40 °C / -40 °F - 65 °C / 149 °F
Height	79.44 mm / 3.13 in
Width	99.95 mm / 3.94 in
Product Weight	0.55 lbs / 0.25 kgs
Standards Compliance	CE Recognized, IEC IP67, ECE Reg 148 - 1, IEC IP69K

J.W. Speaker Model 795 LED Compact Work Light Specification Flyer (PDF) ▲

J.W. Speaker Model 795 LED Compact Work Light Specification Flyer

Applications: Agriculture, Construction, Industrial, Material Handling, Mining, Off-Road 4x4, Railroad, Specialty Vehicles
