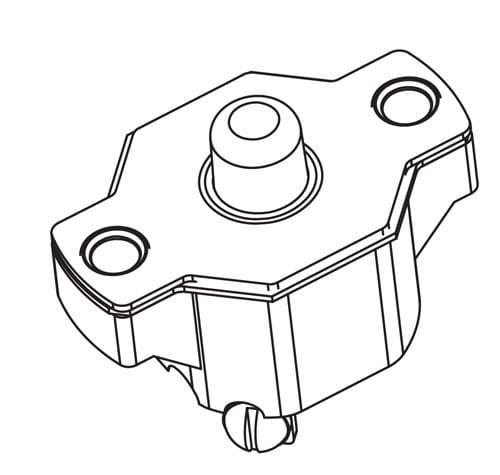

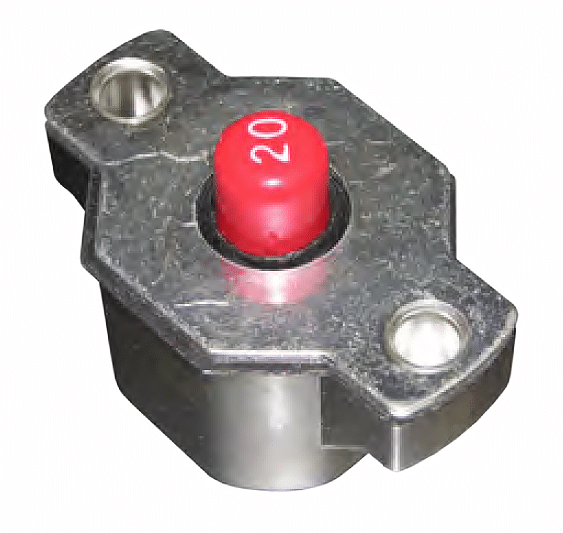

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker

Brand: Klixon Precision Products
Origin: USA


Click for:

The KLIXON® C series thermal breakers are designed to protect wiring and meet the harshest environmental requirements. The C series closed construction circuit breakers are weatherproof sealed for protection against moisture, dust, grease, fuel vapors and other harsh environments. The C series breakers are compact, lightweight and designed to interrupt short circuits or overloads, and combine trip-free protection with fast response time. Typical applications are protection of wire cable of accessory circuits, equipment and battery protection in construction and off-road equipment, marine, recreational vehicles (RV’s), mining, agricultural equipment and electric (hybrid) vehicles.

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker Features & Benefits

  • 30VDC or 120VAC, 2 to 40 Amps
  • Open and closed construction
  • Automatic and manual reset options
  • Ignition protected SAE J1171
  • Weatherproof SAE J553
  • UL Recognised E36869

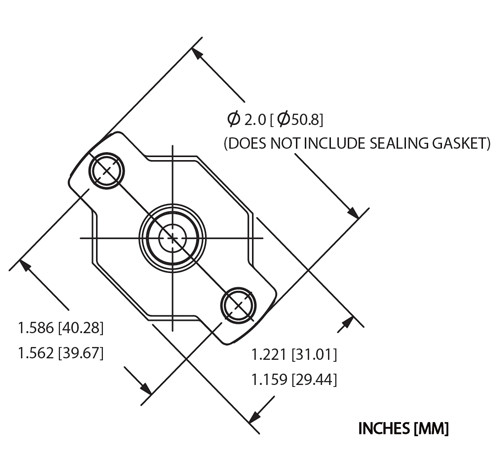

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker Klixon CDM Specifications

Calibration: 200% rated current, 77°F (25°C)2 to 10 Amps: 20 to 150 seconds
12.5 to 50 amps: 5 to 55 seconds
Ultimate Trip at 77°F (25C)Must hold 100%, Must trip 135%
EndurancePer SAE J162Per SAE J553
Interrupt Current CapacityPer SAE J553 and ABYC E-11
Mechanical Vibration10G MIL-STD-202 Method 204, Condition A
Salt SprayMIL-STD-202 Method 101D (sealed only)
Dielectric StrengthMIL-STD-202 Method 301, 1500VAC min
Insulation ResistanceMIL-STD-202 Method 302, Condition B, 100 MΩ min
WeightCD: 48 grams max

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker Specifications Flyer (PDF)

Klixon CDM 2 to 40 Amp Commercial Thermal Circuit Breaker Parts Enquiry

Part#
Description
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
Usually ships: 5-10D
Sell Qty: ea
Ship Weight: 0.2 lbs (0.09 kg)
Catalog page: New
