Brand: Vignal Lighting Group
Origin: Europe

Click for:

•   Features & Benefits
•   Videos,  Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

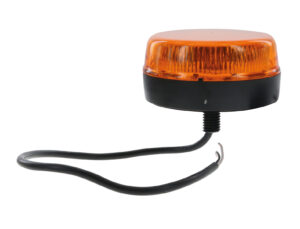

New compact and cost effective beacon Mini ATLAS 90 mm / 99 mm / 120 mm diameter, adapts to all vehicles smart design : less components for less consumption TIR molded optics heavy duty – longlife beacon central / side cable output / mounting on 1 M12 central screw.

Vignal ATLAS Mini LED Beacon Series Features & Benefits  ▲

  • The most compact R65 beacon
  • Extra-bright double flash
  • Powerful, long-life LED
  • Heavy duty – excellent vibration resistance

Vignal ATLAS Mini LED Beacon Series Videos▲

Vignal ATLAS Mini LED Beacon Series Specifications▲

Product TypeComplete lamp
Voltage10-30V DC, 10/32V (221500 only)
Consumption16W, 7W
ColourAmber / Orange, other colors on request
Connector221300: ISO DIN 14620B
221200 / 221100 / 221000: Naked cable extremity
Mounting221500: Magnetic 1 suction pad with cigarette lighter
221300: Pole mounting (DIN 14620)
221200 / 221100: 3 screws
221000: 1 central screw
Lens MaterialPolycarbonate
Diameter221200 / 221100: 120 mm
221500: 99 mm
221300 / 221000: 90 mm
Height221300: 107,5 mm
221500: 53,5 mm
221100 / 221200: 44,5 mm
221000: 42,5 mm
Weight221500 / 221300: 0,22 Kg
221200 / 221100 / 221000: 0,175 Kg
Flash Patterns221200 / 221100: Double Flash
IP ProtectionIP6K9K (ISO 20653)
PolarityProtected against reverse voltage
Operation Temperatures-40°C to +80°C
EMCCISPR25 Class 5, ECE R10
ECEECE R65 (TA1 or TB1)
SAESAE Class 1
VIGNAL PNs Vehicle / Machine OEM PN
D14515 / 21.97.005.VLG Argos Tractors: 6504490M91
D14514 / 21.92.000.VLG / BR 13109.70
221500
221300
221200
221100
221000



Vignal ATLAS Mini LED Beacon Series ​Specification Flyer (PDF)▲

Applications: Agriculture, ambulance, construction, electric vehicles, police vehicle, priority vehicle, vans and chassis cab
