Brand:
Vignal Lighting Group
Origin: Europe
Click for:
The photo shown above is an ATLAS beacon with an adapter support for a MAN truck. This is also available at the original dealer.
Truck manufacturers such as Mercedes and MAN rely on high specification requirements, and Vignal Lighting Group meets this with their range of ATLAS LED beacons.
Special attention has been paid to the thermal management of LEDs to ensure optimum service life and operation in the most extreme situations. Specifications include a top-tier IP69K ingress protection, ECE R10, CISPR25 Class 5, and ECE R65 certification.
The ATLAS SAE Class 1 LED Beacon are available in Amber, Blue, Green, or Red colour options with either rotative or simple flash patterns, and flexible mounting options to suit the vehicle.
Vignal Signal ATLAS LED Beacon Features & Benefits ▲
- Voltage: 9/32V
- Source: LED
- Color: Amber, Blue, Green, Red
- Flash Patterns: Rotative or Simple Flash
Vignal Signal ATLAS LED Beacon Specifications ▲
| Fixation | 3 vis on Ø 130mm (DIN 14620) (212010, 212020, 212030, 212120, 212160, 212170) Pole Mounting (DIN 14620) (212420, 212460, 212470) Magnetic 1 suction pad with cigarette lighter (212520, 212560) |
| Product Type | LED |
| Voltage | 9-32V DC |
| Color | Amber, Blue, Green, Red |
| Connector | Kostal 2 pins (212010) Connector 2 Pin (212020, 212030) Naked cable extremity, Wiring harness (212120, 212160, 212170) ISO DIN 14620B (212420, 212460, 212470) |
| Lens Material | Polycarbonate |
| Diameter | 140mm |
| Height | 82mm |
| SAE | SAE Class 1 |
| EMC | ECE R10, CISPR25 Class 4 |
| ECE | ECE R65 |
| IP Protection | IP69K |
| Operation Temperature | -40°C to +80°C |
| Flash Patterns | Rotative or Simple Flash |
| Consumption | 8.5W @ 28.5A (212010, 212020, 212030, 212120, 212420, 212520) 17W @ 28.5A (212160, 212170, 212460, 212470, 212560, 212570) |
| Weight | 0.46kg |
| Polarity | Protected against reverse voltage |
| Standards Compliances | R65, R10, IP69K |
| VIGNAL PNs | Vehicle / Machinery OEM PNs |
| 212010 / A 910 206 29 00 / A 910 906 64 00 | Mercedes Sprinter: A 910 206 29 00, A 910 906 64 00 |
| 212020 / 81.25207-6074 | MAN TGA – TGL – TGM – TGX: 81.25207-6074 |
| 212030 / 81.25207-6075 | MAN TGA – TGL – TGM – TGX: 81.25207-6075 |
| 212120 | |
| 212160 | |
| 212170 | |
| 212420 | Bucher Municipal Tractor: 09300181-0, Hyundai Tractor: 21MN-20250, SAME Deutz-Fahr Tractor: 2.0839.402.0, Wacker Wiedemann Tractor: 1000426017 |
| 212460 | |
| 212470 | |
| 212520 | Manitou Tractor: 52659336 |
| 212560 | |
| 212570 |
Vignal Signal ATLAS LED Beacon Specifications Flyer (PDF) ▲
MAN / Mercedes Reference Sheet
Manufacturer | Model | Reference
Mercedes | Sprinter | A 910 206 29 00, A 910 906 64 00, A 910 206 29 00, A 910 906 64 00
MAN | TGA – TGL – TGM – TGX | 81.25207-6074, 81.25207-6075
Manitou | Tractor | 52659336
Applications: MAN Trucks, Mercedes Trucks, Transport and Logistics, Long-haul Trucks, Emergency Services, Police Vehicles, etc
Vignal Signal ATLAS LED Beacon Parts Enquiry ▲
Vignal Signal ATLAS LED Beacon: 3 screws, rotating light amber, Kostal 2 pins connector, 212010 / A 910 206 29 00 / A 910 906 64 00
Vignal Signal ATLAS LED Beacon: 3 screws, rotating light amber, 2 pin Connector, 212020 / 81.25207-6074
Vignal Signal ATLAS LED Beacon: 3 screws, rotating light blue, 2 pin Connector, 212030 / 81.25207-6075
Vignal Signal ATLAS LED Beacon: 3 screws, rotating light amber, Naked cable extremity, Wiring harness, 212120
Vignal Signal ATLAS LED Beacon: 3 screws, flash light amber, Naked cable extremity, Wiring harness, 212160
Vignal Signal ATLAS LED Beacon: 3 screws, flash light blue, Naked cable extremity, Wiring harness, 212170
Vignal Signal ATLAS LED Beacon: DIN pole mounting, rotating light amber, ISO DIN 14620B, 212420
Vignal Signal ATLAS LED Beacon: DIN pole mounting, flash light amber, ISO DIN 14620B, 212460
Vignal Signal ATLAS LED Beacon: DIN pole mounting, flash light blue, ISO DIN 14620B, 212470

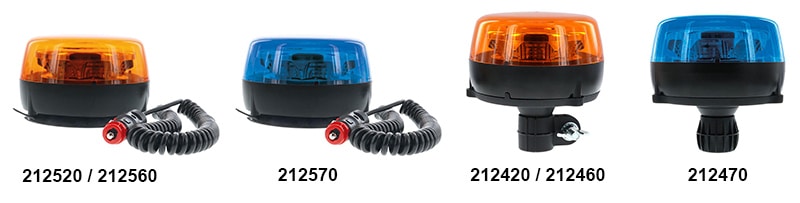

Vignal Signal ATLAS LED Beacon: Magnetic pole mounting, rotating light amber, magnetic 1 suction pad with cigarette lighter, 212520
Vignal Signal ATLAS LED Beacon: Magnetic, flash light amber, magnetic 1 suction pad with cigarette lighter, 212560
Vignal Signal ATLAS LED Beacon: Magnetic, flash light blue, magnetic 1 suction pad with cigarette lighter, 212570
