140W Area Lights for Standard-duty Industrial/Structural and Heavy-duty Shovel/Dragline Applications

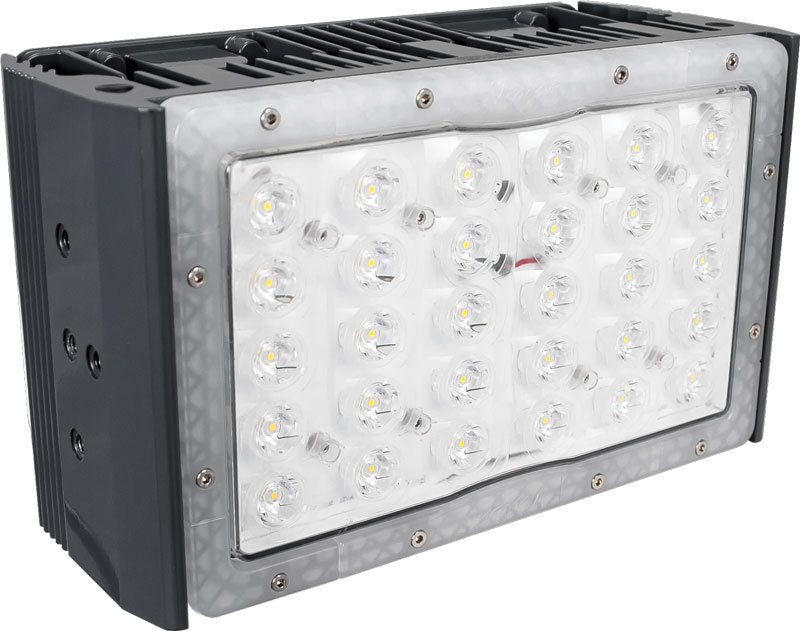

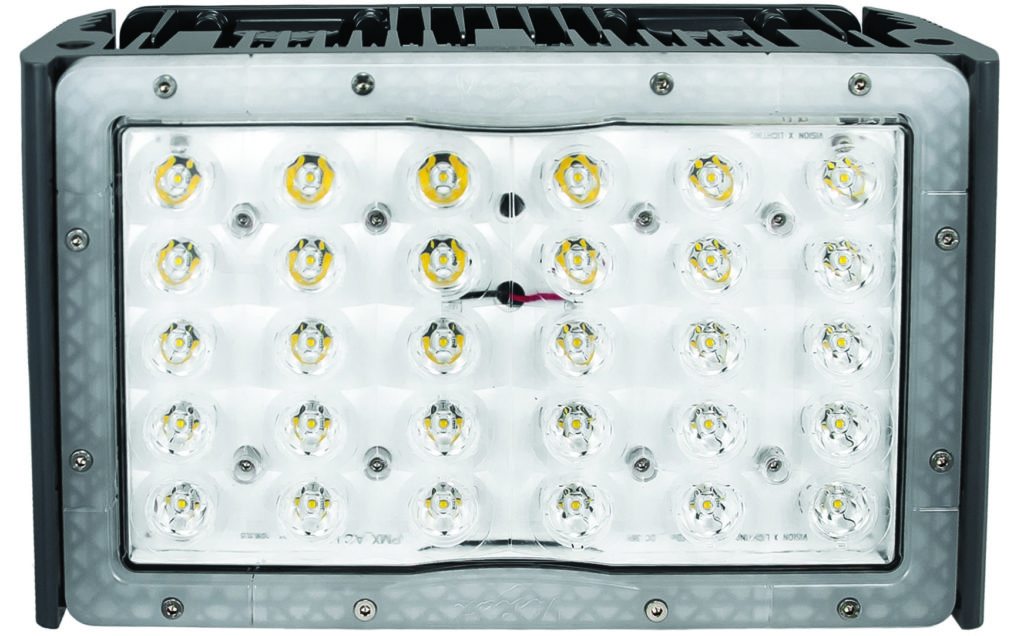

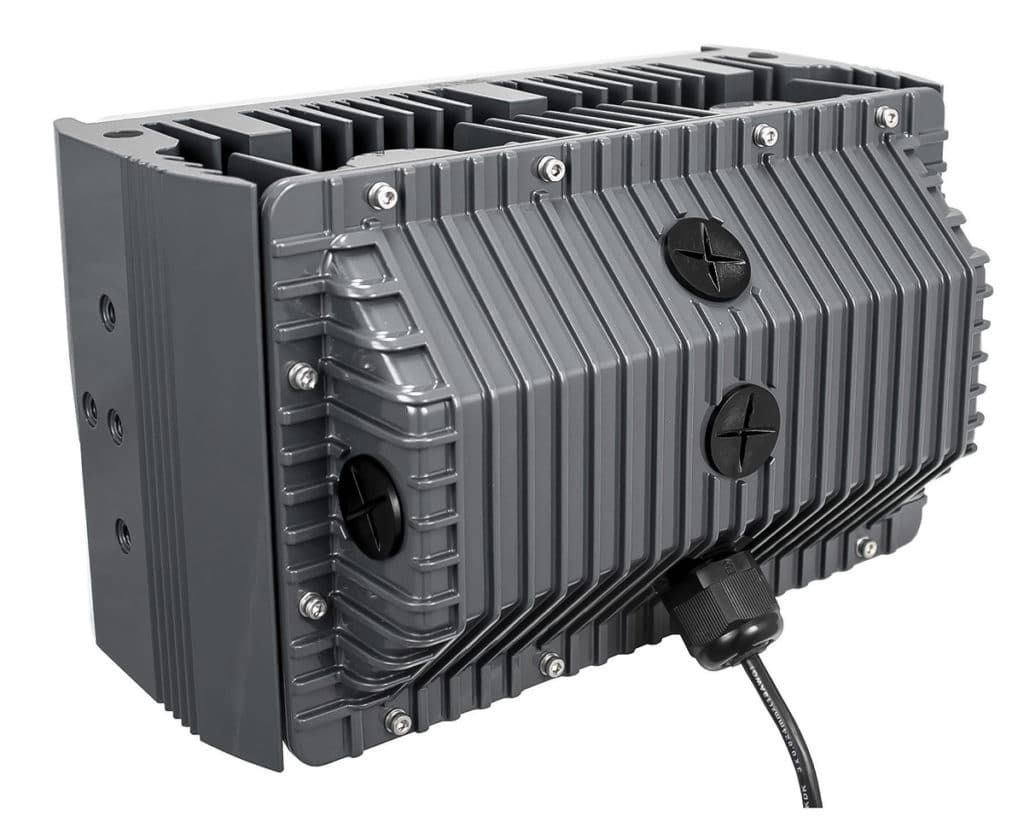

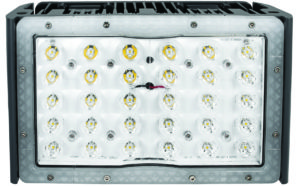

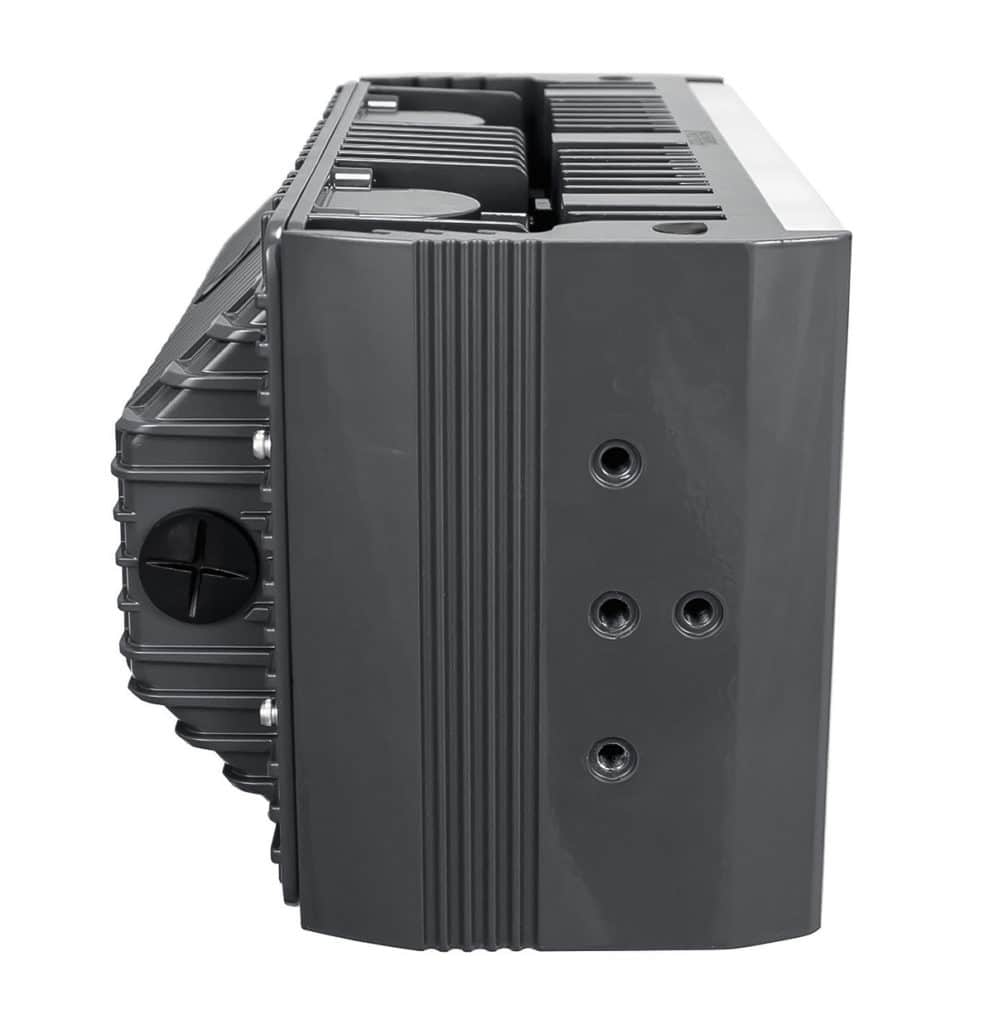

The 140W LED industrial area light by Vision X is fitted with advanced electronic technology like Pulse Width Modulation, Electronic Thermal Management, and a Redundant Circuit Design for added workplace safety.
This 18,000 Lumen area light is a dependable and effective LED solution for industrial applications, port terminals, cranes, stadiums and stations.

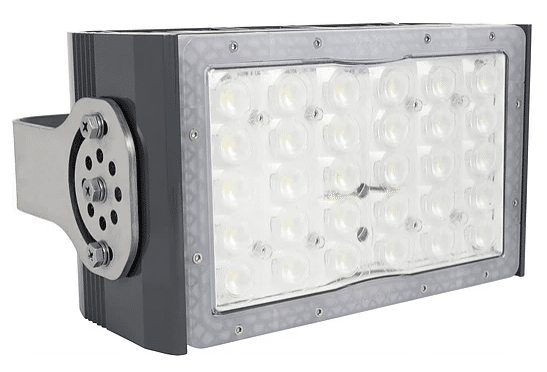

The standard trunnion bracket is suitable for industrial and structural applications, whilst the heavy-duty and stainless steel trunnion bracket is suitable for shovels and draglines where vibration resistance is a key requirement.
NEW – You can now get the VX 140W Industrial/Structural Area Light with Corrosion Resistant Plasti Dip
Vision X 140W Industrial/Structural Area Light with Corrosion Resistant Plasti Dip
Seeing decay on your light fixtures? Designed with a bright yellow plastic tri-coated aluminum housing, the new Corrosion Resistant Series from Vision X fights deterioration in high-risk environments like solvent extraction and electrowinning (SX/EW) plants. The stainless steel trunnion bracket and hardware guarantee durability and a corrosion-free fixture for the life of the light, while the quick connect cable ensures a simple install and speedy maintenance.
Vision X 140W Industrial/Structural Area Light Features & Benefits ▲
- Secondary plastic coating on the aluminum housing
- Corrosive resistant to high-risk environments
- Plastic Tri-Coated Aluminum Protection
Plastic Dip yellow coating on the housing provides added protection in highly corrosive environments.
See LSY063060STRQC and LSY063090STRQC in the Parts table below.
Vision X 140W Industrial/Structural (Shovel/Dragline) Area Light Specifications ▲
| Type | 30 x XP-LHD (CREE) LEDs |
| Lumens | 18,000 Lu |
| Beam Patterns | Spot 10° (SD), Narrow 25° (ND), Medium 40° (MD), Flood 60° (FD), Wide Flood 90° (WD) |
| Color Temperature | 5000K |
| Voltage | 90-277V AC (LV - Low Voltage), 480V AC (HV - High Voltage) |
| Wattage | 140W |
| Current Draw | 1.22A @ 115V AC, 0.61A @ 230V AC, 0.51A @ 277V AC |
| Operating Temperature | -40°C to +60°C |
| Vibration | 15.6Grms |
| IP Rating | IP68, IP69K |
| Certifications/Ratings | EMC Emission: EN55015, EN55022 (CISPR22) Class B, EN61000-3-2, Class C (@Load ≥ 50%); EN61000-3-3. EMC Immunity: EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, Light Industry Level surge immunity Line-Earth 4KV, Line-Line 2KV |
| Short Circuit | Constant current limiting, recovers automatically after fault condition is removed |
| Housing | Die-Cast 6061 Aluminium, Grey in colour, Yellow Corrosion Resistant Plastic Dip (Part No. LSY063060STRQC and LSY063090STRQC) |
| Lens | Polycarbonate Lens |
| Weight | 34 lbs (15.5kg) Including TRHD Bracket |
| Dimensions (DxWxH) | 7.17x12.24x7.09" (182x311x180mm) |
| Warranty | 5 Years |
Standard-duty Industrial/Structural and Heavy-duty Dragline/Shovel Mounting Options
Vision X 10W Junction Box Light Specifications Flyer (PDF) ▲
Applications: Port terminals, industrial, cranes, stadiums, stations, shovels/draglines (with heavy-duty bracket)
Dimensions:
Width: 12.24" (311 mm), Height: 7.09" (180 mm), Depth: 7.17" (182 mm)
Vision X 140W Industrial/Structural Area Light Parts Enquiry ▲
Vision X 140W Shovel/Dragline Area Light: 10° Spot Beam, Heavy Duty Trunnion Bracket
Vision X 140W Shovel/Dragline Area Light: 25° Narrow Beam, Heavy Duty Trunnion Bracket
Vision X 140W Shovel/Dragline Area Light: 40° Medium Beam, Heavy Duty Trunnion Bracket
Vision X 280W Shovel/Dragline Area Light: 60° Flood Beam, Heavy Duty Trunnion Bracket
Vision X 140W Shovel/Dragline Area Light: 90° Wide Flood Beam, Heavy Duty Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 10° Spot Beam, Standard Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 25° Narrow Beam, Standard Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 60° Flood Beam, Standard Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 90° Wide Flood Beam, Standard Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 40° Medium Beam, Standard Trunnion Bracket
Vision X 140W Industrial/Structural Area Light: 180° Ultra Wide Flood Beam, Standard Trunnion Bracket
Vision X 140W Shovel/Dragline Area Light: 180° Ultra Wide Flood Beam, Heavy Duty Trunnion Bracket
Vision X 140W Shovel/Dragline Area Light: 60° Flood Beam, Stainless Steel Bracket
Vision X 140W Shovel/Dragline Area Light: 40° Medium Beam, Stainless Steel Bracket
Vision X 140W Shovel/Dragline Area Light: 25° Narrow Beam, Stainless Steel Bracket
Vision X 140W Shovel/Dragline Area Light: 10° Spot Beam, Stainless Steel Bracket
Vision X 140W Shovel/Dragline Area Light: 180° Ultra Wide Flood Beam, Stainless Steel Bracket
Vision X 140W Shovel/Dragline Area Light: 90° Wide Flood Beam, Stainless Steel Bracket
Vision X 140W Plastic Dipped (Yellow) Shovel/Dragline Area Light: 60° Flood Beam
Vision X 140W Plastic Dipped (Yellow) Shovel/Dragline Area Light: 90° Wide Flood Beam
