Vision X 50W Junction Box Light

Vision X 50W Junction Box Light

Brand: Vision X
Origin: USA


Click for:

Suitable for General Area Lighting
The 50W LED Junction Box fixture by Vision X is ideal for a range of applications on site and comes in a 90 degree wide flood or 180 degree ultra-wide flood beam pattern. Fitted with advanced electronic technology like Pulse Width Modulation, Electronic Thermal Management, and a Redundant Circuit Design for added workplace safety, this general area lighting fixture is a dependable and effective LED solution.



NEW – You can now can get the VX 50W Junction Box Light with a heavy-duty trunnion (or harp) bracket.
NEW – You can also get the VX 50W Junction Box Light with Corrosion Resistant Plasti Dip

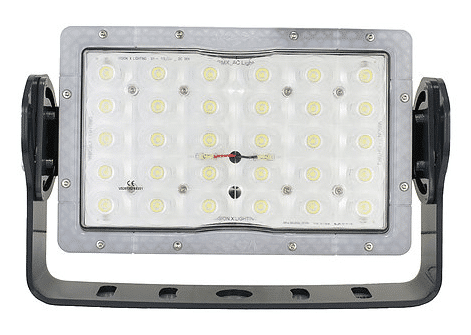

Vision X 50W Junction Box Light with trunnion (or harp) bracket



Vision X 50W Junction Box Light with Corrosion Resistant Plasti Dip
Series from Vision X fights deterioration in high-risk environments like solvent extraction and electrowinning (SX/EW) plants. The stainless steel trunnion bracket and hardware guarantee durability and a corrosion-free fixture for the life of the light, while the quick connect cable ensures a simple install and speedy maintenance.



Seeing decay on your light fixtures? Designed with a bright yellow plastic tri-coated aluminum housing, the new Corrosion Resistant

Vision X 50W Junction Box Light Features & Benefits

  • Secondary plastic coating on the aluminium housing
  • Corrosive resistant to high-risk environments
  • Plastic Tri-Coated Aluminium Protection
  • Easy Pole or Ceiling Mounting Options
  • Operating Voltage: 90-264vAC
  • UL Certified, IP68/69K Rating
  • 50,000hr+ Lifespan

Plastic Dip yellow coating on the housing provides added protection in highly corrosive environments.
See LSY033060QC, LSY033090QC, and LSY0225180QC in the Parts table below.



Vision X 50W Junction Box Light Specifications

Type25/30 x MHB-B (CREE) LEDs
Lumens6,000 Lu
Beam Patterns90° Wide Flood,
180° Ultra-wide Flood
Colour Temperature 5000K
Mounting OptionsStandard (Mount Feet), PSF (Pole Slip Fitting), SWL (Swivel), PH (Pedestal), WM (Wall Mount), Trunnion Bracket, PH (House & Track)
Photoelectric Cell OptionDDS (Dawn/Dusk Sensor)
Voltage90-277V AC (LV - Low Voltage),
480V AC (HV - High Voltage)
Wattage50W
Current Draw0.43A @ 115V AC,
0.22A @ 230V AC,
0.18A @ 277V AC
Operating Temperature-40°C to +60°C
Vibration15.6Grms
IP RatingIP68, IP69k
Certifications / RatingsEMC Emission: EN55022,EN61000-3-2,
Class A ,EN61000-3-3. EMC Immunity: EN55024,
EN61000-4-2,3,4,5,6,8,11;
Light industry level (surge 2KV), criteria A
Short CircuitConstant current limiting, recovers automatically after fault condition is removed
HousingDie-Cast 6061 Aluminium, Grey in colour,
Yellow Corrosion Resistant Plastic Dip (Part No. LSY033060QC, LSY033090QC, and LSY0225180QC)
LensPolycarbonate Lens
Weight8.38 (lbs) / 3.8 (kgs)
Dimensions (DxWxH)3.33x12.99x7.09" (84.5x330x180mm)
Warranty5 Years

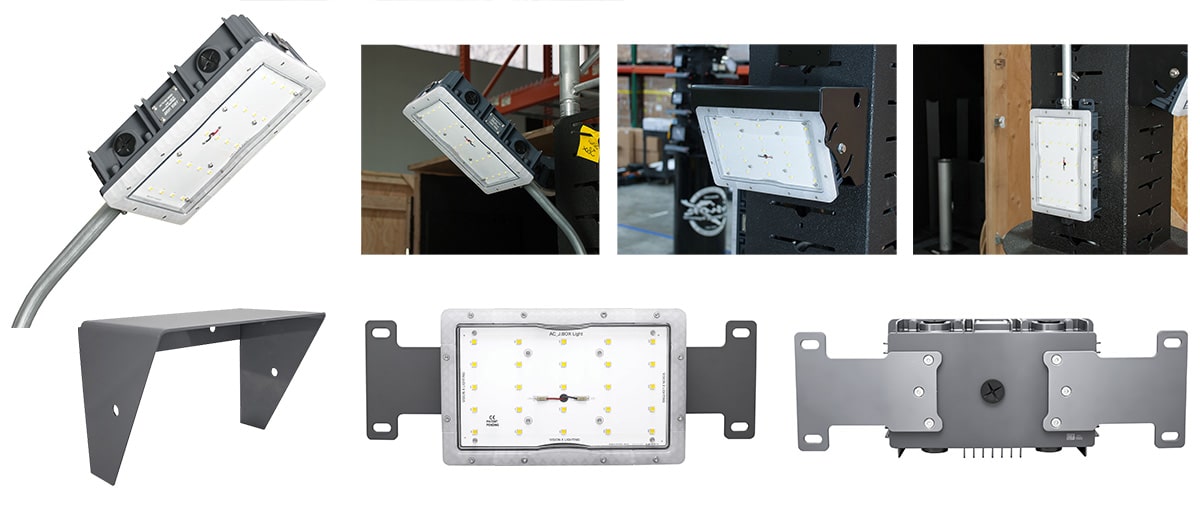

Flexible Mounting Options



Vision X 50W Junction Box Light Specifications Flyer (PDF)


Applications: General area lighting


Dimensions:
Width: 12.99" (330 mm), Height: 7.09" (180 mm), Depth: 3.33" (84.5 mm)

Vision X 50W Junction Box Light Parts Enquiry

Part#
Description
