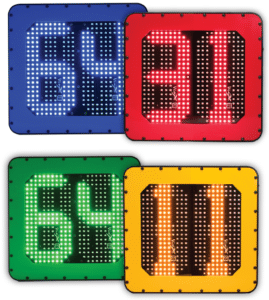

Vision X 2 and 3 Digit LED VID Boards

Vision X 2 and 3 Digit LED VID Boards

Brand: Vision X
Origin: USA

Click for:

•   Features & Benefits
•   Photos & Images
•   Specs Table
•   Specs Flyer (PDF)
•   Parts Enquiry
•   Related Products

The Vision X Identification Number Board allows personnel to quickly identify vehicles in any weather condition. Available in 2-Digit or 3-Digit configurations, these LED ID Boards can be changed as often as needed, and are engineered to run 24/7. Installing the Vision X ID Number Board means vehicles won’t require numbers to be painted and can be quickly changed, reducing downtime during crucial time frames.

Vision X 2 and 3 Digit LED VID Boards Features & Benefits  ▲

  • Numerical LEDs Controlled Via Magnetic Sensor
  • 195 LEDs Per Number
  • Red, Green, Blue, Amber LEDs Available
  • Auto Dim / Bright for Day and Night time Operation

Vision X 2 and 3 Digit LED VID Boards Specifications  ▲

Fixture Weight w/ Brackets21lbs (9.53kg) (2 Digit), 27lbs (12.25kg) (3 Digit)
Shipping Weight24lbs (10.98kg) (2 Digit), 30lbs (13.61kg) (3 Digit)
MountingModular Mounting Brackets
HardwareIncluded (with magnetic sensor)
LED5050 (0.2W)
ColorRed, Green, Blue, Amber
Beam Pattern120° Extra Wide View
Wattage78W (2 Digit), 117W (3 Digit)
Amp Draw6.5A @ 12V (2 Digit), 9.75A @ 12V (3 Digit)
Operating Voltage12-36V DC
Operating Temperature-40°C ~ 80°C
Lifespan50,000 hours
Connector3 Pin Deutsch
HousingDie-Cast 6061 Aluminum
Housing ColorBlack
LensPolycarbonate
EMC EmissionCISPR 25 Class 1
Ingress ProtectionIP68, IP69K
Vibration Rating21.2Grms
Warranty3 Years

Vision X 2 and 3 Digit LED VID Boards Specifications Flyer (PDF)  ▲

Applications: Off-highway, mining, specialty & commercial trucks and buses

Dimensions:
Width: 22.56/29.84" (573/758 mm), Height: 17.32/17.26" (440/439 mm), Depth: 1.41" (36 mm)
