Brand:
Vision X
Origin: USA
Click for:
Suitable for General Area Lighting

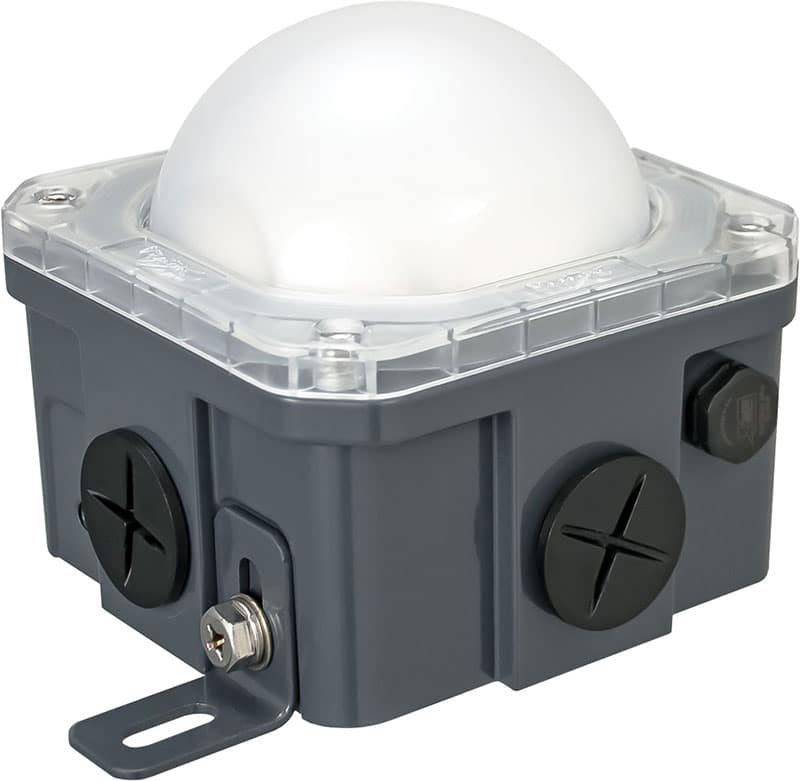

The 10W LED Junction Box fixture by Vision X is ideal for a range of applications on site and features a 180 degree ultra flood beam pattern. Fitted with advanced electronic technology like Pulse Width Modulation, Electronic Thermal Management, and a Redundant Circuit Design for added workplace safety, this junction box light is a dependable and effective LED solution.
Robust Construction with Colour Lens Options
Constructed from die-cast aluminium with a clear polycarbonate lenses, this general area lighting fixture can also be fitted with a range of coloured lens (frosted, amber, red, green or blue), which are sold separately.
NEW – You can now get the VX 10W Junction Box Light with Corrosion Resistant Plasti Dip
Vision X 10W Junction Box Light with Corrosion Resistant Plastic Dip
Seeing decay on your light fixtures? Designed with a bright yellow plastic tri-coated aluminium housing, the new Corrosion Resistant Series from Vision X fights deterioration in high-risk environments like solvent extraction and electrowinning (SX/EW) plants. The stainless steel trunnion bracket and hardware guarantee durability and a corrosion-free fixture for the life of the light, while the quick connect cable ensures a simple install and speedy maintenance.
Vision X 10W Junction Box Light Features & Benefits ▲
- Frosted Lens
- Tri-Coated Aluminium Protection
- 100 Watt Halogen Bulb Replacement
- Easy Pole or Ceiling Mounting Options
- Operating Voltage: 90-264V AC | 127-370V AC
- UL Certified, IP68/69K Rating
- 50,000hr+ Lifespan
Plastic Dip yellow coating on the housing provides added protection in highly corrosive environments.
See LSYSM40180F and LSGSM40180PH in the Parts table below.
Vision X 10W Junction Box Light Specifications ▲
| Type | 40 x 5630 (LG) LEDs |
| Lumens | 1,000 Lu |
| Beam Patterns | 180° Ultra-wide Flood (UF) |
| Color Temperature | 5000K |
| Mounting Options | Standard Mount Feet, Wall, Pendant or Pole Mount |
| Voltage | 90-277V AC (LV - Low Voltage) |
| Wattage | 10W |
| Current Draw | 0.09A @ 115V AC, 0.04A @ 230V AC, 0.04A @ 277V AC |
| Operating Temperature | -40°C to +60°C |
| Vibration | 15.6Grms |
| IP Rating | IP68, IP69K |
| Certifications/Ratings | EMC Emission: EN55022, EN61000-3-2, Class A, EN61000-3-3. EMC Immunity: EN55024, EN61000-4-2,3,4,5,6,8,11; Light industry level (surge 2KV), criteria A |
| Short Circuit | Constant current limiting, recovers automatically after fault condition is removed |
| Housing | Die-Cast 6061 Aluminium, Grey in colour, Yellow Corrosion Resistant Plastic Dip (Part No. LSYSM40180F and LSGSM40180PH) |
| Lens | Polycarbonate Lens |
| Weight | 2.05 lbs (0.93kg) |
| Dimensions (DxWxH) | 3.94x4.41x4.41" (100x112x112mm) |
| Warranty | 5 Years |
Flexible Mounting Options
Vision X 10W Junction Box Light Specifications Flyer (PDF) ▲
Applications: General area lighting

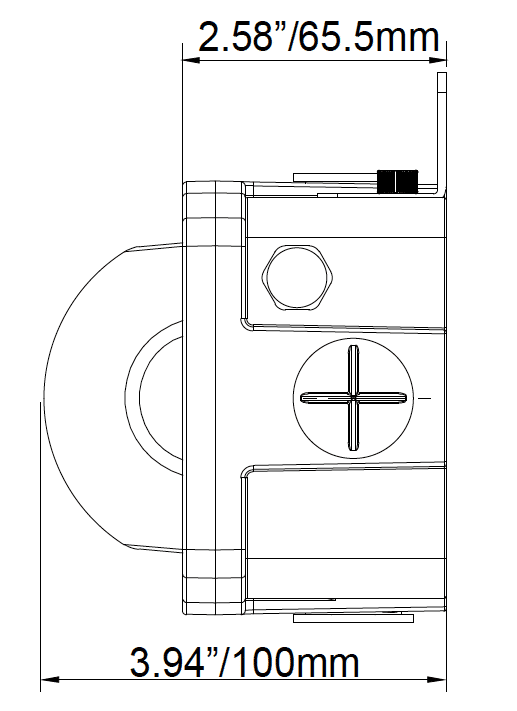

Dimensions:
Width: 4.41" (112 mm), Height: 4.41" (112 mm), Depth: 3.94" (100 mm)
Vision X 10W Junction Box Light Parts Enquiry ▲
Vision X 10W Junction Box Light: 180° Ultra Wide Flood Beam, Frosted Lens
Vision X 10W Junction Box Light: 180° Ultra Wide Flood Beam, Amber Lens
Vision X 10W Junction Box Light: 180° Ultra Wide Flood Beam, Red Lens
Vision X 10W Junction Box Light: 180° Ultra Wide Flood Beam, Green Lens
Vision X 10W Junction Box Light: 180° Ultra Wide Flood Beam, Blue Lens
Vision X 10W Plastic Dipped (Yellow) Junction Box Light: 180° Ultra Wide Flood Beam, Frosted Lens
Vision X 10W Junction Box Light with Pedestal Mount
