Brand:
ECCO
Origin: USA
Click for:
7” Wireless Camera System

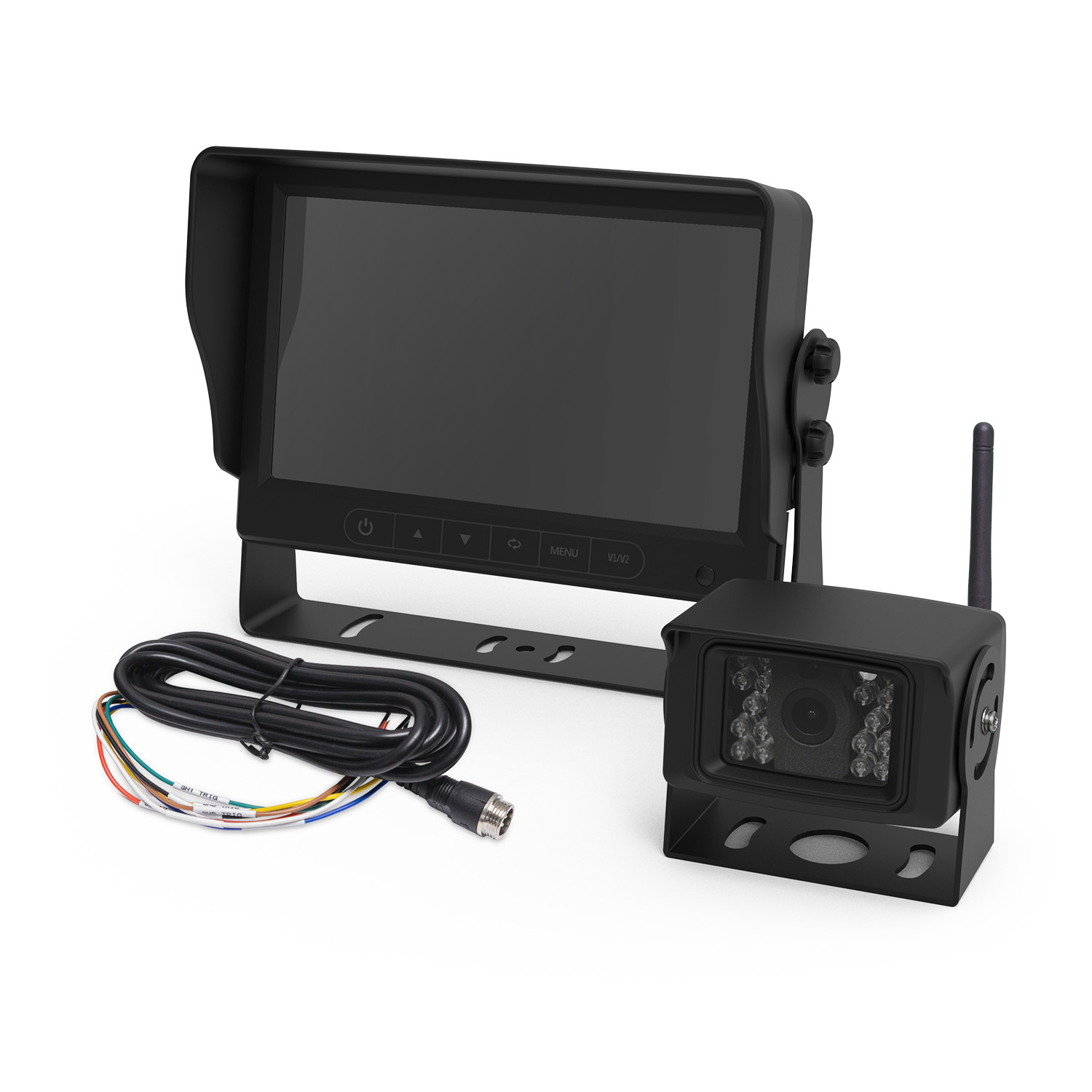

Comprising a feature packed 7.0” LCD high resolution color monitor and a basic color infrared wireless camera, the K7000B-WK delivers excellent picture quality even in low-light conditions. The compact monitor includes a sun screen and allows for unobtrusive installation without compromising viewable screen area. Kit is expandable up to 4 cameras (C2013B-WC only).
ECCO K7000B-WK Wireless Camera System Features & Benefits ▲
- Monitor with touch & backlight buttons
- Day/night light sensor camera
- 75° horizontal & 170° diagonal camera angle
- Four camera expandable
ECCO K7000B-WK Wireless Camera System Specification▲
M7000B-WM Monitor Tech Specs
| Approval | CE, R10, FCC, UK CA |
| Internal Controller | Yes |
| Color | Yes |
| Voltage | 12-24V DC |
| Power Consumption | 3.7W |
| Audio | Yes |
| Day / Night Light Sensor | Yes |
| Dimensions | 8.4” x 6.0” x 2.8” |
| Weight | 1.5 lbs |
| Temperature (F°) | -4 to +149 |
| Quad view | Yes |
| Screen size | 7.0” |
| Mirror image | Yes |
| Remote control | No |
| Sunshade | Yes |
| Max cameras | 4 |
C2013B-WC Camera Tech Specs
| Approval | CE, R10, IP69K (Camera only), FCC, UK CA |
| Color | Yes |
| Power Consumption | 1.15W |
| Microphone | Yes |
| Day / Night Light Sensor | Yes |
| Dimensions | 3.6” x 1.9” x 3.1” |
| Weight | 1.0 lbs |
| Temperature (F°) | -4 to +149 |
| Lens Angle | 75º Horizontal 170º Vertical |
| Lens size | 1/3” |
| Infrared LEDs | 18 |
ECCO K7000B-WK Wireless Camera System Specifications Flyer (PDF) ▲
Applications: Civil / construction vehicles, drill rigs, light vehicles, utility vehicles, light / heavy fleet vehicles, mobile cranes, waste trucks
ECCO K7000B-WK Wireless Camera System Parts Enquiry ▲
Part#
Description
